- Page 1 Refrigerator User manual RZ11M** Free Standing Appliance Untitled-4 1 2020-06-30 PM 2:40:01...
-
Page 2: Table Of Contents
Cleaning Replacement Troubleshooting General Do you hear abnormal sounds from the refrigerator? LIMITED WARRANTY (U.S.A.) SAMSUNG REFRIGERATOR Warranty Information (CANADA) If your refrigerator needs service Limited Warranty for Original Purchaser Obligation to the Original Owner Exclusions of the Warranty English... -
Page 3: Safety Information
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual. • If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com. -
Page 4: Important Safety Symbols And Precautions
Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. - Page 5 • If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres. • Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 6: Severe Warning Signs For Transportation And Site
Safety information Severe warning signs for transportation and site WARNING • When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - Page 7 - Deteriorated insulation on electrical parts may cause an electric shock or fire. • If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center. - Otherwise there is a risk of fire.
-
Page 8: Installation Cautions
Safety information Installation cautions CAUTION • Allow sufficient space around the refrigerator and install it on a flat surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions. • After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food. - Page 9 • Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer. • If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.
- Page 10 - Failing to do so may result in an electric shock, fire, problems with the product, or injury. • If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center. • If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center.
-
Page 11: Usage Cautions
• Service Warranty and Modification. - Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications. • Do not block the air vents inside the refrigerator. -
Page 12: Cleaning Cautions
- Printed letters on the display may come off. • If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center. - Failing to do so may result in an electric shock or fire. -
Page 13: Critical Disposal Warnings
Critical disposal warnings WARNING • Children trapped inside a refrigerator can hurt themselves or suffocate to death. • Please dispose of the packaging material from this product in an environmentally friendly manner. • Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal. -
Page 14: Installation
Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING • Use the refrigerator only for its intended purpose as described in this manual. • Any servicing must be performed by a qualified technician. •... -
Page 15: Step-By-Step Installation
Step-by-step installation STEP 1 Select a site Site requirements: • Solid, level surface without carpeting or flooring that may obstruct ventilation • Away from direct sunlight • Adequate room for opening and closing the door • Away from a heat source •... - Page 16 Installation more than 2” (50 mm) recommended 130° ” (377 mm) ” (967 mm) ” (581 mm) ” (5.5 mm) 47” (1194 mm) NOTE The measurements in the above table may differ, depending on the measuring method. English Untitled-4 16 2020-06-30 PM 2:40:04...

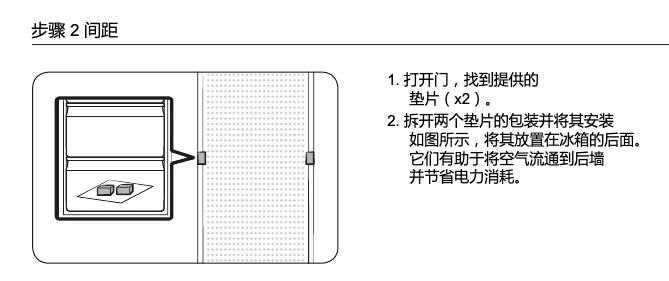

- Page 17 STEP 2 Spacing 1. Open the door and locate the provided spacers (x2). 2. Unpack both spacers and attach them to the rear of the refrigerator as shown. They help ventilate air to the rear wall and save power consumption. STEP 3 Flooring •...
- Page 18 Installation STEP 4 Adjust the levelling legs CAUTION • The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury. • Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
- Page 19 STEP 5 Initial settings By completing the following steps, the refrigerator should be fully functioning. 1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation. 2. Plug the power cord into the wall socket to turn the refrigerator on . 3.
-
Page 20: Operations
Operations Feature panel 01 Temp. / Mode select 02 Power Freeze 03 Door Alarm 04 Lock 01 Temp. / Mode select Press to set the desired temperature. • In Freezer mode, you can set the temperature between 5 °F (-15 °C) Temp. - Page 21 02 Power Freeze (3 sec) Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. • To activate Power Freeze, press and hold Power Freeze for 3 seconds.
- Page 22 Operations 05 Cooling Off The Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail floor. In the Cooling Off mode, the refrigerator's fan motor and lights operate normally, but the compressors do not run so neither the Cooling Off fridge nor the freezer becomes cold.
-
Page 23: Maintenance
Maintenance Door reversal Reversing the door must be performed by Samsung-approved servicing personnel at your own expense because this kind of servicing is not covered by the Warranty. WARNING • Reversing failure or property damage that may occur by unapproved agencies will not be covered by the Warranty. - Page 24 Maintenance Step-by-step instructions STEP 1 Remove the handle 1. Unlock the handle cap and put it aside. 2. Remove each screw on the upper and lower side of the handle. 3. Use a flat-head screwdriver to remove the handle screw caps (x2). Then, insert the handle screw caps in the opposite side.
- Page 25 STEP 2 Remove the freezer door 1. Open the dongle cover, and remove the space cover. 2. While holding down the lower areas (marked in the figure) of the wire cover with both hands, lift up the wire cover. 3. Turn the wire cover to the front by 90 degrees, and then push up to remove.
- Page 26 Maintenance 4. Use a flat-head screwdriver to insert in the holes one after another on the top of the door to remove the top frame cover. NOTE Start with the hole farthest from the hinge. 5. Pull out the left side of the hinge cover to remove, and then slightly lift up the bottom to pull out.
- Page 27 7. When the top hinge is removed, lift up to remove the freezer door. Keep the door in a safe place. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. STEP 3 Reverse the auto closer 1.
- Page 28 Maintenance STEP 4 Reverse the bottom hinge 1. Lay down the refrigerator with care. Then, remove the screws from the bottom hinge on the right side and the levelling leg on the left side, respectively. 2. Use an " (8 mm) socket wrench to remove the rear bolt next to the shaft.
- Page 29 STEP 5 Reattach the freezer door 1. Remove the screw and pull out the control cover. 2. Move the connectors and wires to the opposite side. Insert the control cover, and then tighten the screws on the opposite side. English Untitled-4 29 2020-06-30 PM 2:40:11...
- Page 30 Maintenance 3. Remove the shaft from the top hinge. Then, reassemble the shaft as shown. 4. Insert the bottom of the door first into the main unit. 5. Insert the top hinge and tighten it with screws. • Move the wires to the opposite side and fix them on the inner hook of the opposite side.
- Page 31 6. Reinsert the dongle cover in the original position. 7. Connect the connectors from the freezer door and the main unit. Then, fix the wires on the inner hook of the optional hinge cover (L). 8. Insert the hinge cover in the top hinge with the right side first.
- Page 32 Maintenance 9. Insert the top frame cover with the part (b) fitting in the part (a) diagonally. Then, slide the end of the cover to the left to lock. • For models that have the display panel on the top of the freezer, push in the left end of the top frame cover then the right side by locking the lower and upper areas in this sequence.
- Page 33 10. Insert the wire cover through the opened dongle cover. Turn the cover by 90 degrees to the front, and then push down to fit in. 11. Insert the space cover (L) into the original position, and then close the dongle cover.
- Page 34 Maintenance STEP 6 Reattach the handle 1. Insert the handle in the opposite side, and then tighten the screw. 2. Close the handle cover as shown. NOTE You might want to return the doors to the initial position (before reversing the door). In that case, refer to the instructions above but switch the doors, hinges, and covers back to the initial position.
-
Page 35: Handle And Care
Handle and care Shelves Slightly lift up the rear side of the shelf to pull out. Door guards Slightly lift up and pull out the door guard. CAUTION To prevent accidents, empty the door guards before removing. Top shelf cover 1. -
Page 36: Cleaning
4. Plug in the power cord. Replacement LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service centre. WARNING • The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. -
Page 37: Troubleshooting
Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution • Power cord is not plugged in • Properly plug in the power properly. - Page 38 Troubleshooting Odors Symptom Possible causes Solution • Clean the refrigerator and • Spoiled food. remove any spoiled food. Refrigerator has odors. • Make sure strong smelling • Food with strong odors. food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the •...
-
Page 39: Do You Hear Abnormal Sounds From The Refrigerator
Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal. • When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. - Page 40 Troubleshooting • As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling! • As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.
-
Page 41: Limited Warranty (U.s.a.)
If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. - Page 42 Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.
- Page 43 PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
-
Page 44: Warranty Information (Canada)
Warranty Information (CANADA) If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly. Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred... -
Page 45: Obligation To The Original Owner
This warranty is valid only on products purchased and used in Canada. SAMSUNG CUSTOMER CARE CENTER Samsung Electronics Canada Inc. 2050 Derry Road West... - Page 46 Memo Untitled-4 46 2020-06-30 PM 2:40:17...
- Page 47 Memo Untitled-4 47 2020-06-30 PM 2:40:17...
- Page 48 How-to Videos and Live Shows * Requires reader to be installed on your smartphone Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG Customer Care Center. Country Contact Center Web Site 1-800-SAMSUNG (726-7864) U.S.A...
