  • Page 1 ® FRED PA-1 TRAINER Training Device for Automated external defibrillator (AED) User Guide...
  • Page 2 Sales and service information The SCHILLER sales and service centre network is world-wide. For the address of your local distributor, contact your nearest SCHILLER subsidiary. In case of difficulty, a complete list of all distributors and subsidiaries is provided on our internet site: http://www.schiller.ch...
  • Page 3: Table Of Contents

    Components and Operation ....9 General Information ............. 9 2.1.1 Configurations .................. 10 Operating and Display Elements ........11 2.2.1 Overview FRED PA-1 TRAINER ............. 11 2.2.2 Operating elements................12 Initial operation ........13 Inserting the batteries ............13 3.1.1 Switching device On and Off............
  • Page 4 FRED PA-1® TRAINER Page 4...
  • Page 5: Safety Notes

     Do not store the training electrodes together with the normal electrodes or with the normal defibrillator. Intended Use  The FRED PA-1 TRAINER is a simple cost-effective simulator of the FRED PA-1 that is designed to be used exclusively for training.  It must only be used on a mannequin.
  • Page 6: Additional Terms

    1.7.1 Terms of Warranty Your SCHILLER FRED PA-1 TRAINER is warranted against defects in material and manufacture according the general terms of condition. Excluded from this warranty is damage caused by an accident or as a result of improper handling. The warranty en- titles to free replacement of the defective part.
  • Page 7: Symbols/Indicators

    Safety Notes ® User Guide Symbols/Indicators FRED PA-1 TRAINER Symbols/Indicators 1.8.1 Symbols used in this user guide The safety levels are classified according to ANSI Z535.6. The following overview shows the safety symbols and pictograms used in this user guide. The terms Danger, Warning, and Caution are used in this User Guide to point out poten- tial dangers and to indicate risk levels.
  • Page 8: Symbols Used On The Training Electrode Packaging

    Safety Notes ® Symbols/Indicators FRED PA-1 TRAINER 1.8.3 Symbols used on the training electrode packaging  These electrodes are only intended for training, not for clinical use.  Do not store these electrodes with your normal defibrillator. • Remove the patient's clothes •...
  • Page 9: Components And Operation

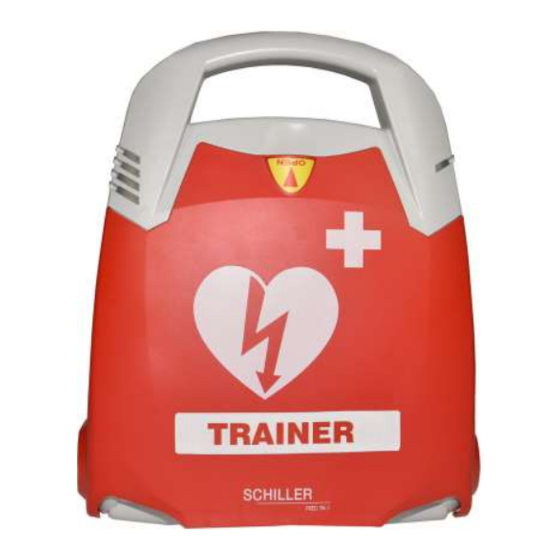

    The FRED PA-1 TRAINER is a simple and cost-effective simulator of the FRED PA-1 that is designed to be used exclusively for training. The FRED PA-1 TRAINER doesn’t deliver any energy, it simply plays through the re- suscitation process with different scenarios. It is powered by 4 standard 1.5 V AA/LR6 batteries.
  • Page 10: Configurations

    Components and Operation ® General Information FRED PA-1 TRAINER 2.1.1 Configurations Configuration Values Device type (Automatic / semi-automatic) DA / DSA Resuscitation protocol detailed/short instructions Patient type Adult / Child CPR duration (in minutes) 1 / 2 / 3 Metronome frequency (beat/min) 100/110/120 CPR mode Continuous /30:2 / 15:2 (if patient type is child...
  • Page 11: Operating And Display Elements

    Operating and Display Elements FRED PA-1 TRAINER Operating and Display Elements The status LEDs are not active! 2.2.1 Overview FRED PA-1 TRAINER 4 x 1.5 V AA/LR6 batteries Training electrodes (only pads) to simulate opening and applying the pads on the patient’s body...
  • Page 12: Operating Elements

    Components and Operation ® Operating and Display Elements FRED PA-1 TRAINER 2.2.2 Operating elements 4 x 1.5 V AA/LR6 batteries On/Off LED SD card with the scenario On/Off switch Page 12...
  • Page 13: Initial Operation

    Initial operation ® User Guide Inserting the batteries FRED PA-1 TRAINER 3 Initial operation Inserting the batteries  Danger of explosion! The battery must not be exposed to high temperatures or disposed of with household waste.  Do not short-circuit, cut, destroy, burn or charge a battery. ...
  • Page 14: Switching Device On And Off

    3.1.2 Device pairing This is only possible with devices equipped with Bluetooth. 1. Open the Schiller Defi training App on your smart-phone or tablet PC. 2. Select the icon the Device list of Defi training application. Select the de- vice you want to use in the list.
  • Page 15: Training

    Training ® User Guide Training procedure semi automated AED FRED PA-1 TRAINER 4 Training • The training electrode cable is already connected (normally the pads are pre-con- nected) • As soon as the cover is opened, the voice prompt starts. •...
  • Page 16: Training Procedure Fully Automated Aed

    Training ® Training procedure fully automated AED FRED PA-1 TRAINER Training procedure fully automated AED • The following instructions comply with the scenario “shock recommended and then shock not recommended Trainee starts by opening cover and stay calm and follow instructions follows instructions call emergency service dial number written on the device use only if patient is unresponsive...
  • Page 17: Accessories And Disposables

    Your local representative stocks all the consumables and accessories for the FRED PA-1 TRAINER. A full list of all SCHILLER representatives can be found on the SCHILLER website (www.schiller.ch). In case of difficulty, contact SCHILLER. Our staff will be pleased to help process your order or to provide details for all SCHILLER products.
  • Page 18: Disposal Information

    In accordance with national law, the battery must be dis- posed of at an appropriate waste disposal station or returned to SCHILLER. According to European legislation, this device is considered as electronic waste equipment.
  • Page 19: Troubleshooting

    Training ® User Guide Troubleshooting FRED PA-1 TRAINER Troubleshooting 4.5.1 Troubleshooting Problem Possible causes Remedy The ON/OFF LED is off and  Replace the battery. • Battery depleted or inserted with the device cannot be turned the wrong polarity.  Insert the battery correctly. •...
  • Page 20: Technical Data

    5 Technical Data System Specifications Manufactured by SCHILLER MEDICAL Device name FRED PA-1 TRAINER Dimensions 310 x 255 x 100 mm (h x l x w) Weight Approx. 1.7 kg with battery and standard accessories Protection class of the device...
  • Page 21 Technical Data ® User Guide System Specifications FRED PA-1 TRAINER Page 21...
