Summary of Contents for LIFEPLUS DBJ-32A
- Page 1 Choose LifePlus, Choose A Plus Life. Service E-mail: service@lifepluspro.com We provide great warranty service. If you encounter any difficulties, please contact the above email for help. We will reply you within 24 hours.

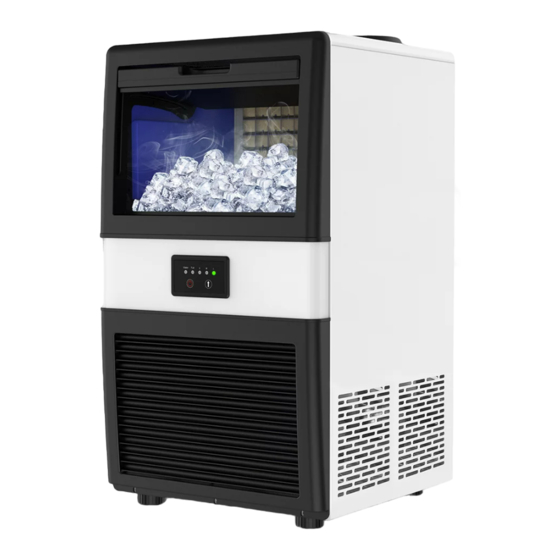

- Page 2 ICE MAKER DBJ-32A PRODUCT USE GUIDE...
- Page 4 Please Note Please read this instruction carefully before use. Damage caused by improper operation is not covered by the warranty. After opening the box, please do not use it immediately. Let the ice machine stand upright for 24 hours first. This is because the ice machine has experienced a long time of shipping.
-
Page 5: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION PAGE3-4 INSPECTION AFTER DELIVERY PAGE4 SECTION 2 PRECAUTIONS FOR SAFE OPERATION PAGES6-7 SECTION 3 SPECIFICATION PAGE8 SAFETY PRECAUTIONS PAGE9 SECTION 4 PARTS & ACCESSORIES PAGE10 CONTROL PANEL PAGE11-12 SECTION 5 PRESET DATA & PRECAUTIONS PAGES13-14 SECTION 6 INSTALLATION STEPS OF ICE MAKER... -
Page 10: General Information
service@lifepluspro.com GENERAL INFORMATION 1. This ice maker uses advanced production technology and skilled processes, as well as the strict quality inspection, guarantees the excellent performance of the ice maker. 2. The compressor of the ice maker is very strong and efficient, it makes the ice making speed of the ice machine faster. - Page 11 service@lifepluspro.com WARNING DIAGRAMS AND OPERATING SAFETY INSTRUCTIONS - 4 -...
- Page 12 - 5 -...
- Page 13 - 6 -...
- Page 14 - 7 -...
- Page 15 - 8 -...
-
Page 16: Precautions For Safe Operation Pages6-7
service@lifepluspro.com PRECAUTIONS FOR SAFE OPERATION AFTER RECEIVING THE ICE MAKER, LET THE ICE MAKER STAND UPRIGHT FOR 24 HOURS FIRST. OTHERWISE THE COMPRESSOR MAY BE DAMAGED . Please do not use it outdoors. If necessary, be sure to make the ice maker waterproof. - Page 17 service@lifepluspro.com Please remove the dust from the supply socket before plugging the power plug into it, to avoid fire hazard. Keep the ice maker free of obstructions and keep the ventilation open. Do not store combustion sprays, volatile or flammable substances in the ice maker. Storage of such substances may cause an explosion or fire hazard.
-
Page 18: Specification
TECHNICAL PARAMETERS Specification DBJ-32A Rated power / frequency 120V/60Hz Ice making current 1.9A Ice harvest current 2.7A Ice cubes number / tray Protection against electric shock ⅠLevel Water inlet mode Tap water / bucket water Tap water inlet pressure... -
Page 19: Safety Precautions
service@lifepluspro.com SAFETY PRECAUTIONS 1. The voltage of this ice maker is: 120V / 60Hz. Please solve the voltage problem before installing. 2. In order to protect the compressor, do not start the ice maker again within 5 minutes after power off. 3. -
Page 20: Parts & Accessories
PARTS & ACCESSORIES Snap Spring Sealing Tape Water Inlet Plug Blue Buckle ICE MAKER DBJ-32A PRODUCT USE GUIDE Commercial Ice Maker Ice Shovel Water Inlet Hose Instruction Drain Hose PRODUCT DIAGRAM Dust cover of bucket water inlet hole Door of ice bin... -
Page 21: Control Panel
service@lifepluspro.com CONTROL PANEL FULL WATER 1. Ice full indicator (Red): When it lights up, it means that the ice machine is full of ice. Please take out the ice for use or put them in a frozen place for storage. 2. - Page 22 service@lifepluspro.com ICE MAKING OPERATION STEPS Step 1: Plug in the power, at this time, all the indicator lights will be on. Just wait a few seconds. Step 2: Adjust the valve according to the water inlet mode. Step 3: Hook up the water source and let water enter slowly. (Refer to page 13-14) Step 4: Wait for a few minutes, the water shortage indicator will go out.
- Page 23 service@lifepluspro.com PRECAUTIONS BEFORE INSTALLATION CORRECT OPERATION When using the ice maker for the first time or using it continuously, please follow below rules! Use an independent water source for the ice maker, and check regularly to prevent low water pressure or pipe blocked. Do not store anything in the ice bin, this will make the ice machine difficult to clean or the pipes blocked.
- Page 24 service@lifepluspro.com Installation steps of tap water inlet mode Step 1: Hook up the drain hose 2.Insert the drain hose and install the 1.Pull out the water outlet plug (Not snap spring to fix the drain hose. sewage outlet plug) Step 2: Adjust the valve and insert the water inlet hose 1.Adjust the direction of the 2.Insert the white water 3.Fix the water inlet hose...
- Page 25 service@lifepluspro.com Installation steps of bucket water inlet mode Step 1: Hook up the drain hose 2.Insert the drain hose and install the 1.Pull out the water outlet plug (Not snap spring to fix the drain hose. sewage outlet plug) Step 2: Adjust the valve to the bucket water inlet mode 1.Adjust the valve to the direction parallel to the water pipe.
- Page 26 service@lifepluspro.com Discharge the sewage after self-cleaning. Step 1: Place a container that can hold at least 0.2 gallons of water under the sewage outlet in advance Step 2: Pull out the sewage outlet plug slowly Step 3: Plug in the sewage outlet plug again NOTE: Please cut off the water source before starting to discharge the sewage, otherwise the water will flow out from the sewage outlet all the time.
- Page 27 service@lifepluspro.com How to Remove the Water Inlet Pipe? 1. Remove the Blue Buckle 2. Press the white part as the picture and pull out the Inlet Pipe WARNING: CLEAN WATER ONLY Each outlet has been marked on the unit. If there is a conflict with the instruction, it may be that the workers pasted it incorrectly.
- Page 28 service@lifepluspro.com TROUBLESHOOTING Fault indication: Ice full indicator flashes quickly: The ambient temperature detector is faulty, try to restart ice maker. If unable to solve, please contact the seller. Ice full indicator and water shortage indicator flash alternately: the open and closed signals of the ice full switch cannot be detected for 3 consecutive times, the machine stops working and reports a mechanical failure.
- Page 29 service@lifepluspro.com FAULT SELF-DIAGNOSIS Problem Possible cause Solution Bad socket contact Change socket Ice maker The ice bin is full of ice Remove the ice cubes does not cubes start Adjust the flap to enable The flap is not reset reset free Water source is not turned Recheck water resource on or connected not strong...
- Page 30 service@lifepluspro.com Improper adjustment of ice Reset ice thickness thickness Install a filter on the water transparency Water quality is bad inlet pipe. of the ice cube is not Ice maker water tank or the Clean the ice maker and very good or ice tray is very dirty replace the filter ice cube...
- Page 31 service@lifepluspro.com Reduce the water pressure or Water pressure is too high install a pressure reducing valve Water overflow to the ice bin Contact us for replacement Damaged float ball The ice cubes are stuck and Press the power button for 3 Ice full can’t fall off from ice tray seconds to force havest ice, and...
- Page 32 service@lifepluspro.com - 25 -...
- Page 33 service@lifepluspro.com IF HAVE STRANGE SMELL If the ice has a strange smell or taste. And there is a disgusting or mildewy odor in the machine, follow the self-clean steps to clean the machine. SOUND DURING MACHINE OPERATION The new ice machine may have abnormal sounds. Most sounds are normal.
- Page 34 service@lifepluspro.com CLEANING AND MAINTENANCE MAINTENANCE Please maintain the ice maker according to this manual to ensure its performance and service life. 1. Always keep the cold air inlet and hot air outlet at the lower end of the ice machine unobstructed.
- Page 35 service@lifepluspro.com ATTENTION 1. Cleaning and maintenance of the ice maker is not included in the our free service. We suggest you use filtered water. 2. Before cleaning and maintenance, please make sure to cut off the power supply. 3. Please cut off the water source before pulling out the water inlet hose of the ice machine to prevent high-pressure water splashing.
- Page 36 service@lifepluspro.com HOW TO STORAGE If you will not use it for a long time, please unplug it and empty the residual water in the water tank and water pipe of the ice machine. Dry the interior with a clean soft cloth (refer to maintenance and cleaning) Warning: Don't touch the power supply with wet hands! Don't pull out the machine by pulling the power code!
