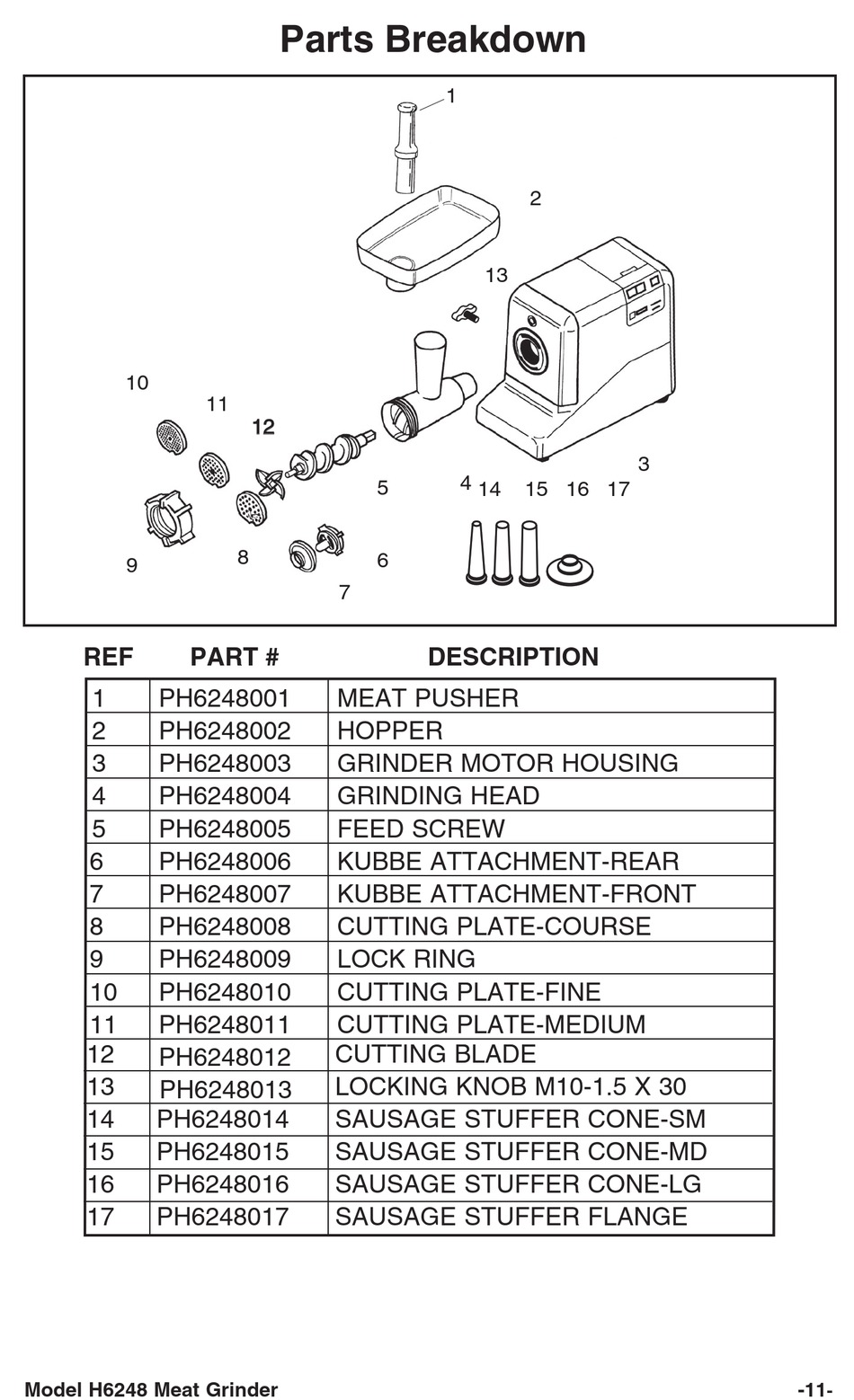

Grizzly H6248 Parts Breakdown

��
�

REF

1 PH6248001
2 PH6248002
3 PH6248003
4 PH6248004
5 PH6248005
6 PH6248006
7 PH6248007
8 PH6248008
9 PH6248009
10 PH6248010
11 PH6248011
12
PH6248012
13
PH6248013
14 PH6248014
15 PH6248015
16 PH6248016
17 PH6248017
Model H6248 Meat Grinder

Parts Breakdown

��
��
�
�

PART #

MEAT PUSHER
HOPPER
GRINDER MOTOR HOUSING
GRINDING HEAD
FEED SCREW
KUBBE ATTACHMENT-REAR
KUBBE ATTACHMENT-FRONT
CUTTING PLATE-COURSE
LOCK RING
CUTTING PLATE-FINE
CUTTING PLATE-MEDIUM
CUTTING BLADE
LOCKING KNOB M10-1.5 X 30
SAUSAGE STUFFER CONE-SM
SAUSAGE STUFFER CONE-MD
SAUSAGE STUFFER CONE-LG
SAUSAGE STUFFER FLANGE
�
�
��
�
�
�������������������
�

DESCRIPTION

�
-11
-
