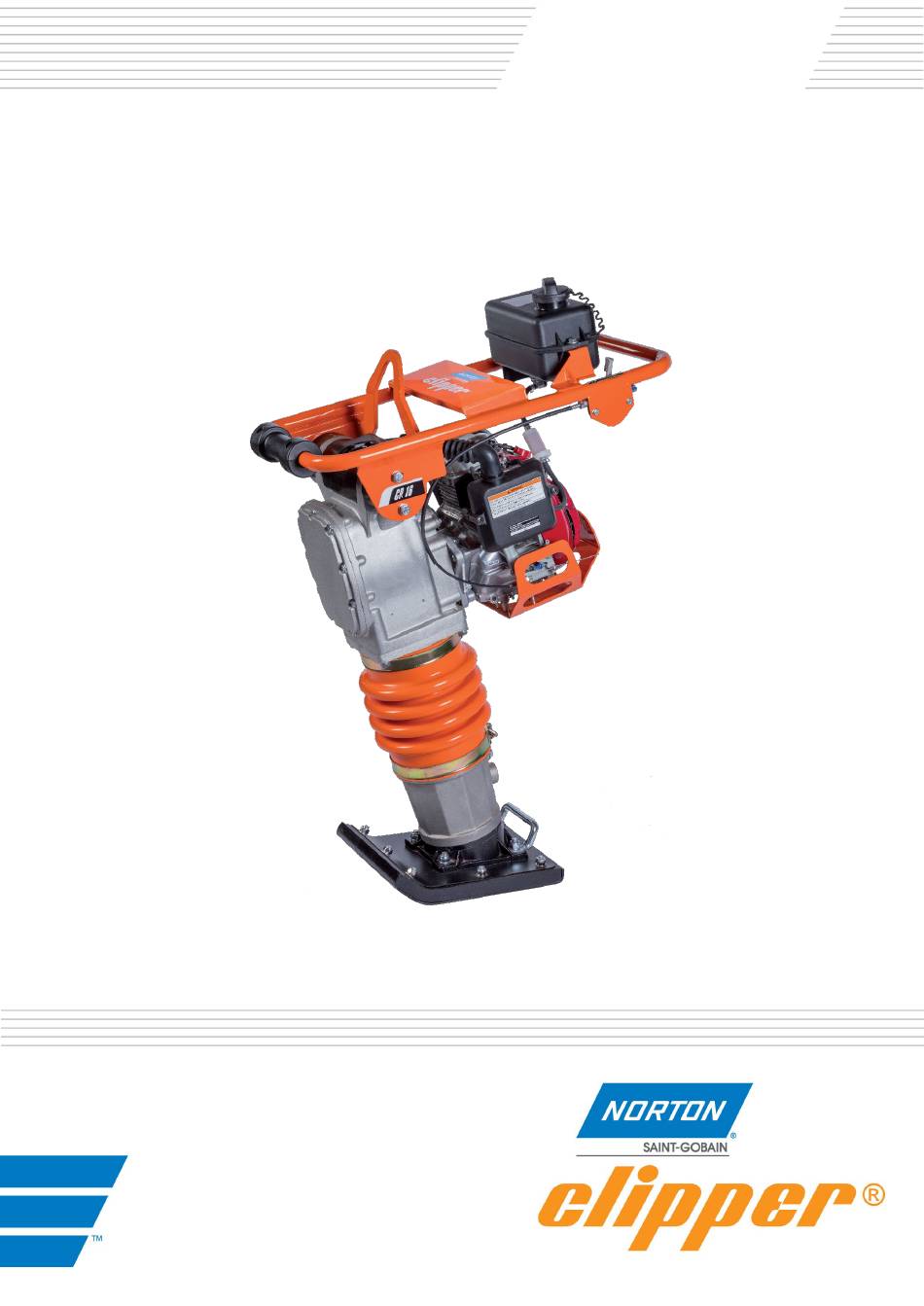

- Page 1 CR16 Rammer OPERATING INSTRUCTIONS Translation of the original Instructions...
-
Page 2: Declaration Of Conformity
Valid for machines as of serial number : 450xxxxxxx Storage site for the technical documents : Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement. -
Page 3: Basic Safety Instructions
VERS. 01.09.2019 CR16 _MAN_EN Norton Clipper CR16 OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data... - Page 4 VERS. 01.09.2019 CR16 _MAN_EN Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. Observing the operating instructions and compliance with inspection and servicing requirements shall also be considered as included under use in accordance with the regulations.
-
Page 5: Safety Instructions For Particular Operating Phases
VERS. 01.09.2019 CR16 _MAN_EN Machine code Machine model Serial number Year of production Machine Weight 1.3 Safety instructions for particular operating phases Before starting the work Before commencing work, make yourself familiar with the working environment at the place • of use. -
Page 6: Machine Description
2-MACHINE DESCRIPTION Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 2.1 Short description... - Page 7 VERS. 01.09.2019 CR16 _MAN_EN Handlebar (1) Jig welded steel construction is connected by 4 shock mount on the frame of the machine to reduce the vibrations reach the operator Lifting eye (2) To lift the machine easily and safely, a lifting eye is located over the engine. This allows a balanced lifting of the machine.
-
Page 8: Technical Data
VERS. 01.09.2019 CR16 _MAN_EN 2.4 Technical DATA Model Norton Clipper CR16 Ramming soleplate Width x 280x330mm Length Operating weight 70 kg Overall Lenth 720mm Overall Heigth 1045mm Overall Wigth 415mm Centrifugal force 16 kN Impact Number per minutes 640-680 Stroke... - Page 9 VERS. 01.09.2019 CR16 _MAN_EN Turn the fuel valve to the ON position. Fully press Move the choke lever to the CLOSED position. the dead-man handle against the main handle. NOTE: do not use the choke if the engine is warm or the air temperature is high.
-
Page 10: Transport And Storing
VERS. 01.09.2019 CR16 _MAN_EN 4-Transport and storing 4.1 Securing for transport Conform yourself to work regulations, in order to transport the machine safely. To help you transport the machine, you can remove the transport tube from under the handle and located in the front hole of the machine. - Page 11 VERS. 01.09.2019 CR16 _MAN_EN Check filter, clean or replace if Air filter necessary Check filter oil level (only oil bath Oil filter models) Check fuel tank and fuel cap lid. Fuel tank If necessary replace. Engine Check oil level, refill if necessary Engine Check engine RPM Transfert Box...
-
Page 12: Troubles-Shooting Guide
VERS. 01.09.2019 CR16 _MAN_EN 7-FAULT: CAUSES AND CURES 7.1 Fault –finding procedures Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of the machine can only be carried out by a qualified technician. 7.2 Troubles-shooting guide TROUBLE POSSIBLE CAUSE... - Page 13 Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F. Kennedy L- 4930 BASCHARAGE Grand-Duché...
- Page 14 +47 63 87 06 01 SWEDEN GERMANY TEL: +46 8 580 881 00 TEL: 2236 703-1 SAINT-GOBAIN HPM POLSKA SP. Z O.O. FAX: +46 8 580 881 30 2236 8996-0 UL. NORTON 1, 62-600 KOŁO +49 (0) 2236 8911-0 62-600 KOŁO...
- Page 15 VERS. 01.09.2019 CR16 _MAN_EN FAX: +36 1 371 22 55 FAX: +351 229 437 949 STAFFORD ST16 1EA UNITED KINGDOM TEL: +44 1785 222 000 FAX: +44 1785 213 487...
