SCHMIDT
LED Measured Value Display
MD 10.010
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD 10.010 and is the answer not in the manual?

Questions and answers

Related Manuals for Schmidt MD 10.010

Summary of Contents for Schmidt MD 10.010

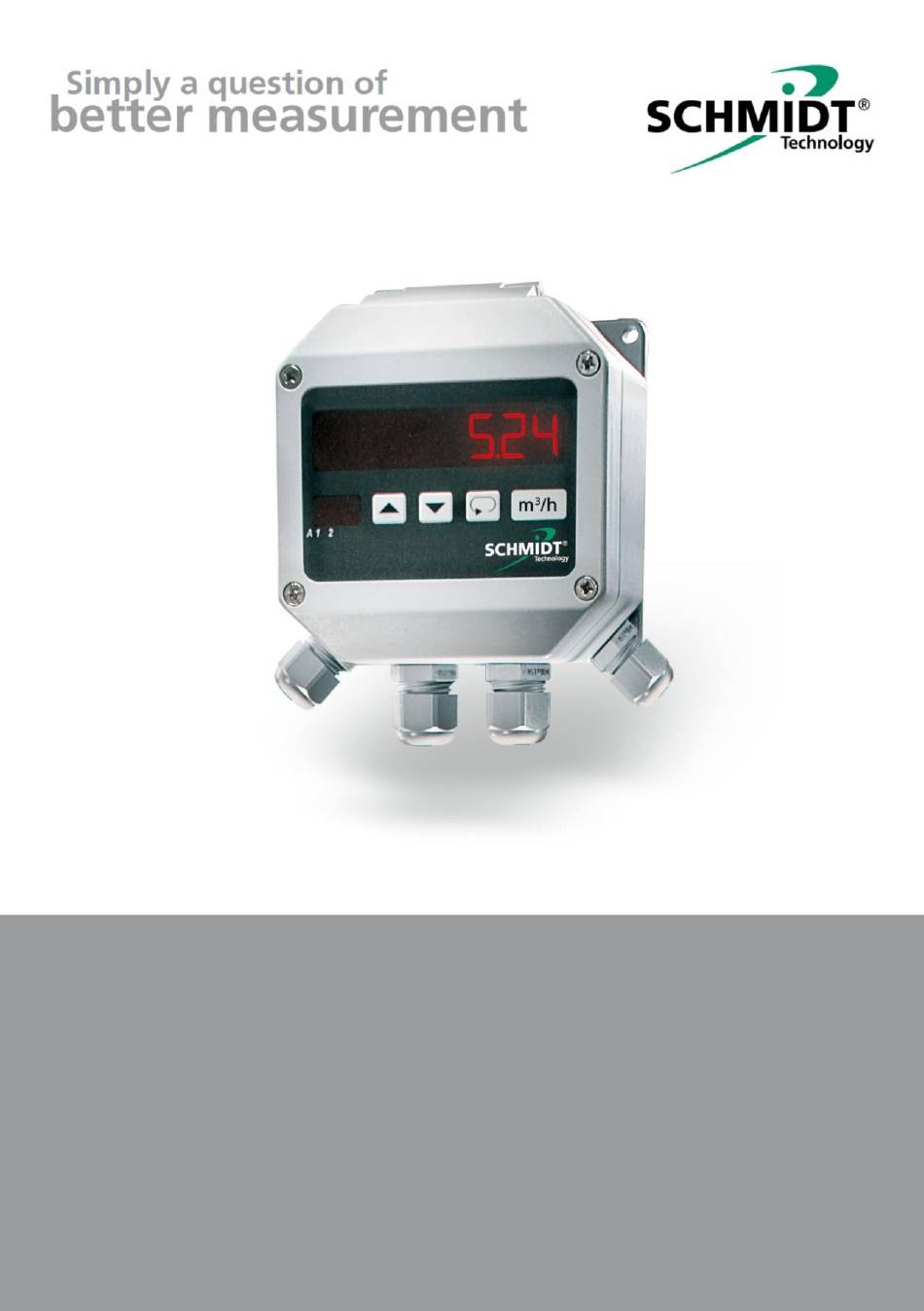

  • Page 1 ® SCHMIDT LED Measured Value Display MD 10.010 Instructions for Use...

  • Page 2: Table Of Contents

    Service information ................ 19 Technical data ................20 Declarations of conformity ............. 21 Imprint: Copyright 2022 SCHMIDT Technology GmbH All rights reserved Version: 531010.02E Subject to modifications Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 2...

  • Page 3: Important Information

    2). In particular, it is not designed for direct or indirect protec- tion of personal or machinery.  SCHMIDT Technology cannot give any warranty as to its suitability for certain purpose and cannot be held liable for errors contained in these instructions for use or for accidental or sequential damage in connec- tion with the delivery, performance or use of this unit.

  • Page 4: Application Range

    The galvanically isolated analog output allows the scalable output of the display values. ® The SCHMIDT LED Measured Value Display MD 10.010 can be used ® for SCHMIDT flow sensors as well as for other sensors (e.g. pressure, temperature, humidity) which are equipped with standard analog outputs.
  • Page 5 Mounting Typically, the MD 10.010 is fixed to a wall by means of four screws (pattern of drilling see Figure 1). Alternatively, SCHMIDT Technology offers a mounting kit that enables an easy installation of the device at pipes using hose clamps (article no.

  • Page 6: Electrical Connection

    The screwless spring terminals are designed for the reception of bare braids (no tinned ends or vein sleeves) of up to 1.5 mm The potential "GND" is internally electrically coupled (but not "AGND"). Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 6...
  • Page 7 Operating voltage For proper operation, the MD 10.010 requires depending of its version:  Material No. 527320: 85 … 250 VAC / 50 … 60 Hz  Material No. 528240: 23 … 29 VDC Only operate the measured value display within the defined op- erating voltage range and type.

  • Page 8: Signalizations

    Analog output The analog output of the MD 10.010 is galvanically isolated from its own energy supply and the sensor supply (pin 13: Analog Out+; pin 12: Analog Out– ≙ AGND; see Figure 2). When using the display version with DC supply (24 V), the mass of the analog output (AGND) can be connected to that of the operating voltage (GND).

  • Page 9: Startup

    (e.g. m/s, m³/h ...) of the main display. Standard mode After a successful initialization phase, the MD 10.010 enters its standard operation mode as “Measured value display” (see Figure 4). The main display shows the actual standard measurement value, the sta- tus of the alarm outputs are depicted in the auxiliary display (see Table 3).
  • Page 10 (more than 2 seconds). Table 4 shows an overview of the presentation and meaning of the differ- ent menu items in the auxiliary display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 10...
  • Page 11  .  Response delay: 0 s  ..  Release delay: 0 s  .. Configuration of alarm output 2   Alarm output: Deactivated Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 11...
  • Page 12 Switching point of alarm output A1: 15.00 m/s   Alarm output A2: Deactivated After the final menu item, the display menu is left automatically going back to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 12...
  • Page 13 Configuration of alarm output 1  Alarm output: Activated    Switching mode: Active when exceeding    Switching point: 150 m³/h  . Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 13...
  • Page 14 Switching point of alarm output A1: 150.0 m   Alarm output A2: Deactivated After the final menu item, the display menu is left automatically going back to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 14...

  • Page 15: Configuration Menu

    (e.g.: 0 ... 20 m/s → 20)  Modification by pressing arrow keys Activation of alarm output 1:   /   Modification by pressing arrow keys Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 15...
  • Page 16  /   Modification by pressing arrow keys Signal mode of analog output:   (mA) / (V) / (mA)  Modification by pressing arrow keys Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 16...
  • Page 17 Modifications in configuration menu as well as reset of peak value memory are locked , even if “key lock” is Modification by pressing arrow keys active . Return to main display  Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 17...
  • Page 18 Indication display menu: Switching point of alarm output 2  Hysteresis of alarm output 2  Response delay of alarm output 2  Release delay of alarm output 2 Table 4 Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 18...

  • Page 19: Service Information

    () according to input signal  Check configuration Analog signal too large / Output configuration small  Check configuration Unexpected values at Configuration alarm output alarm output Table 5 Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 19...

  • Page 20: Technical Data

    RAL 7001 Weight Approx. 370 g Table 6 Current limited Supply voltage of display is connected through, with a series diode & resistance of 25 . Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 20...

  • Page 21: Declarations Of Conformity

    10 Declarations of conformity SCHMIDT Technology GmbH herewith declares in its sole responsibility, that the product  SCHMIDT LED Measured value Display MD 10.010 Part-Nos. 527 230 and 528 240 is in compliance with the appropriate European guidelines and standards UK statutory requirements and designated standards.
  • Page 22 Notes Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 22...
  • Page 23 Notes Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 23...
  • Page 24 SCHMIDT Technology GmbH Feldbergstraße 1 78112 St. Georgen Germany Phone +49 (0)7724 / 899-0 +49 (0)7724 / 899-101 Email sensors@schmidttechnology.de www.schmidt-sensors.com www.schmidttechnology.de Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.010 Page 24...
