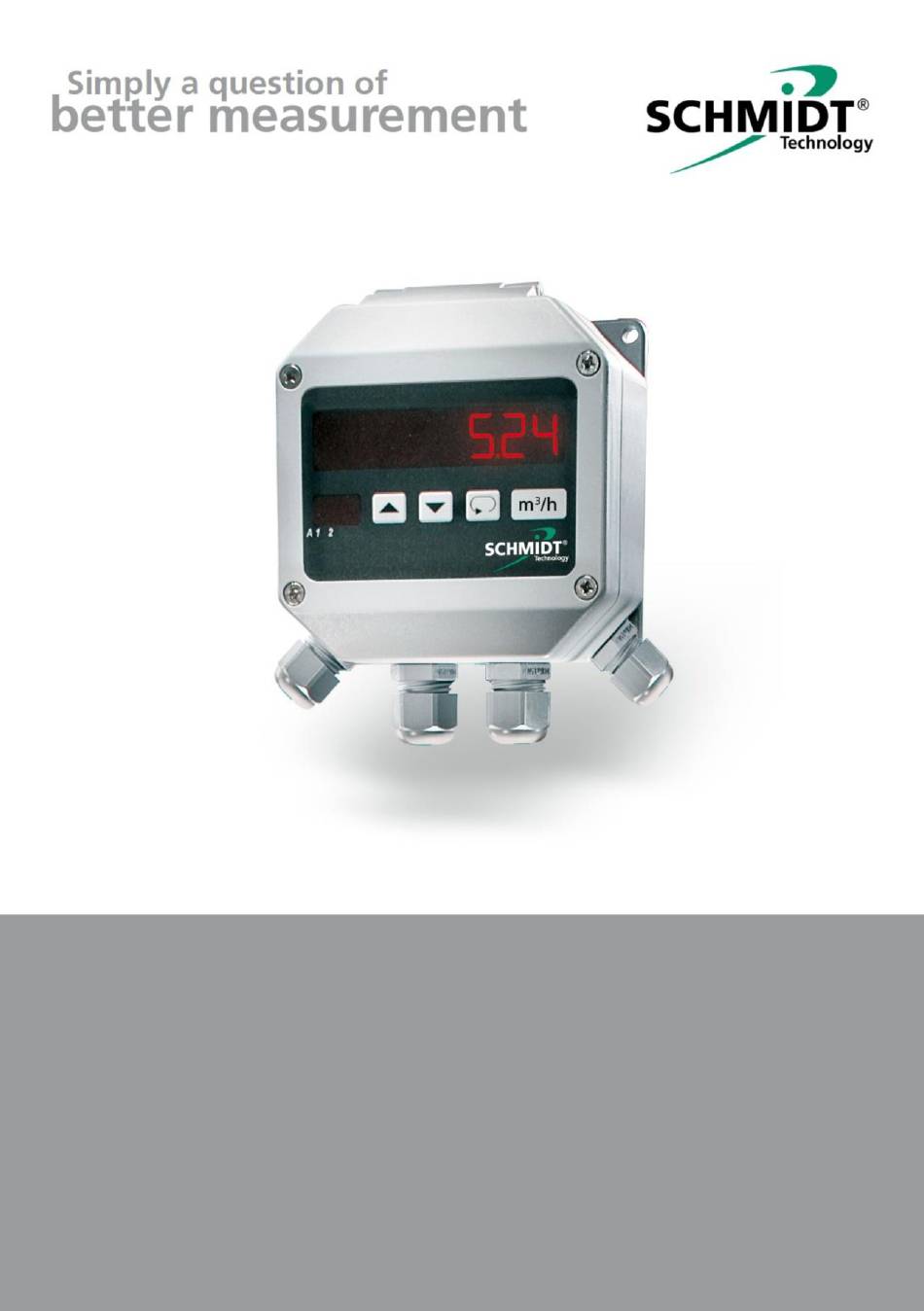

- Page 1 ® SCHMIDT LED Measured Value Display MD 10.015 Instructions for Use [Geben Sie Text ein]...
-
Page 2: Table Of Contents
Service information ................ 24 Technical data ................25 Declarations of conformity ............. 26 Imprint: Copyright 2022 SCHMIDT Technology GmbH All rights reserved Version: 531011.02D Subject to modifications Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 2... -
Page 3: Important Information
2). In particular, it is not designed for direct or indirect protec- tion of personal or machinery. SCHMIDT Technology cannot give any warranty as to its suitability for certain purpose and cannot be held liable for accidental or sequential damage in connection with the delivery, performance or use of this unit. -
Page 4: Application Range
The galvanically isolated analog output allows the scalable output of the display values. ® The SCHMIDT LED Measured Value Display MD 10.015 can be used ® for SCHMIDT flow sensors as well as for other sensors (e.g. pressure, temperature, humidity) which are equipped with standard analog outputs. - Page 5 Mounting Typically, the MD 10.015 is fixed to a wall by means of four screws (pattern of drilling see Figure 1). Alternatively, SCHMIDT Technology offers a mounting kit that enables an easy installation of the device at pipes using hose clamps (article no.
-
Page 6: Electrical Connection
The screwless spring terminals are designed for the reception of bare braids (no tinned ends or vein sleeves) of up to 1.5 mm The potential "GND" is internally electrically coupled (but not "AGND"). Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 6... - Page 7 Operating voltage For proper operation, the MD 10.015 requires depending of its version: Material No. 527330: 85 … 250 VAC / 50 … 60 Hz Material No. 528250: 23 … 29 VDC Only operate the measured value display within the defined op- erating voltage range and type.
-
Page 8: Operating Modes
Analog output The analog output of the MD 10.015 is galvanically isolated from its own energy supply and the sensor supply (pin 13: Analog Out+; pin 12: Analog Out– ≙ AGND; see Figure 2). When using the display version with DC supply, the mass of the analog output (AGND) can be connected to that of the operating voltage (GND). -
Page 9: Signalizations
Analog output If one of the connected sensors indicates an error, the analog output of the MD 10.015 will also signal an error: Signal range without offset (0 ... 20 mA / 0 ... 10 V): In current mode the interface outputs 0 mA. -
Page 10: Startup
(e.g. m/s, m³/h ...) of the main display. Standard mode After a successful initialization phase, the MD 10.015 enters its standard operation mode as “Measured value display” (see Figure 5). The main display shows the actual standard measurement value, the sta- tus of the alarm outputs are depicted in the auxiliary display (see Table 3). - Page 11 (more than 2 seconds). Table 4 shows an overview of the presentation and meaning of the differ- ent menu items. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 11...
- Page 12 Accuracy of indication: 1 decimal . Start value: 0 m³/h (≙ 4 mA) . End value: 343 m³/h (≙ 20 mA) . Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 12...
- Page 13 End value: 200 m³/h (≙ 20 mA) Control panel lock: Deactivated After the final menu item, the configuration menu is left automatically for changing to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 13...
- Page 14 Switching point of alarm output 1: 150 m Alarm output 2: Deactivated After the final menu item, the dispaly menu is left automatically for chang- ing to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 14...
- Page 15 Accuracy of indication: 2 decimals . Start value: 0 m³/h (≙ 4 mA) . End value: 920 m³/h (≙ 20 mA) . Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 15...
- Page 16 End value: +920 m³/h (≙ 20 mA) . Control panel lock: Deactivated After the final menu item the configuration menu is left automatically for changing to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 16...
- Page 17 Switching point of alarm output 1: 100,000 m Alarm output 2: Deactivated After the final menu item, the dispaly menu is left automatically for changing to the main display. Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 17...
-
Page 18: Configuration Menu
Modification by pressing arrow keys Decimal places of measured value “Sensor 1”: . . /. /. /. /. Modification by pressing arrow keys Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 18... - Page 19 (difference: “Sensor 1” – “Sensor 2”) / (sum: “Sensor 1” + “Sensor 2”) (not available in operating mode “Bidirectional”) Modification by pressing arrow keys Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 19...
- Page 20 . /. /. /. /. Setting: .: Maximum quantity is “9999E9”, minimum quantity is “-999E9” Others: Quantity is limited by indication area Modification by pressing arrow keys Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 20...
- Page 21 .. ... ..(h.mm.ss) Modification by pressing arrow keys Parameterization of alarm output 2: Identical to alarm output 1 (menu items to ) Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 21...
- Page 22 , even if “key lock” is Modification by pressing arrow keys active . Return to the main display Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 22...
- Page 23 Hysteresis alarm output 2 value Response delay alarm output 2 Selection operation mode Release delay alarm output 2 Signal source analog output Table 4 Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 23...
-
Page 24: Service Information
( / ) according input signal Check configuration Analog signal too large / Output configuration small Check configuration Unexpected values at Configuration alarm output alarm output Table 5 Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 24... -
Page 25: Technical Data
RAL 7001 Weight Approx. 370 g Table 6 Current limited Supply voltage of display is connected through, with a series diode & resistance of 25 . Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 25... -
Page 26: Declarations Of Conformity
11 Declarations of conformity SCHMIDT Technology GmbH herewith declares in its sole responsibility, that the product SCHMIDT LED Measured value Display MD 10.015 Part-Nos. 527 330 and 528 250 is in compliance with the appropriate European guidelines and standards UK statutory requirements and designated standards. - Page 27 Notes Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 27...
- Page 28 SCHMIDT Technology GmbH Feldbergstraße 1 78112 St. Georgen Germany Phone +49 (0)7724 / 899-0 +49 (0)7724 / 899-101 Email sensors@schmidttechnology.de www.schmidt-sensors.com www.schmidttechnology.de Instructions for Use – SCHMIDT ® LED Measured Value Display MD 10.015 Page 28...
