Clarity S-525A Quick Start Manual

INTRODUCTION

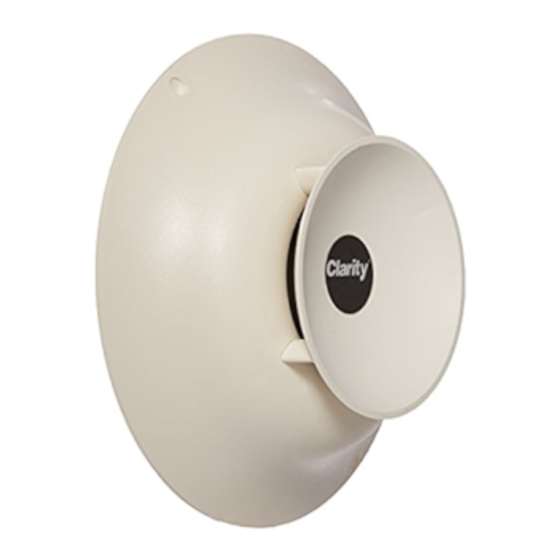

Clarity P-TEC Voice Paging Speakers are suitable for
voice paging as well as background music. The S-525A
is a 25/ 70 Volt model with adjustable taps and volume
control. P-TEC speakers consist of a
3.6 inch cone speaker mounted in a unique surface-
mount baffle. The baffle is designed for mounting on
acoustic tile, such as those normally found in
suspended-ceilings; and can be mounted without
cutting large holes in the tile. The mounting pins can
be removed for mounting in a hard ceiling. The speaker
housing has screw holes for securing speaker without
mounting pins. Although the P-TEC speakers are
designed especially for standard suspended ceilings,
they can be used on many types of ceiling materials.
P-TEC speakers are not suitable for use in
plenum ceiling environments.

DIMENSIONS/WEIGHT

• 8.00"Dia. x 2.50"D (20.32cm x 6.35cm)
1.25 lbs. (.57 kg)

INSTALLATION

Selecting the Power-Tap Wire

1. Remove the Quick-Connect connector from the
accessory pack.
2. Select the desired power-tap wire:
70V Watts 25V Watts
Common Common
.312
.625
1.25
2.5
5.0
--Do
--Not
--Use
Note: Refer to spacing chart (Figure 6) for
recommended speaker spacing.
P-TEC VOICE PAGING SPEAKER
Lead Wire
BLK
-- VIO
-- GRY
-- BLU
.312 WHT
.625 GRY
1.25 ORG
2.5 RED
5.0 BRN
S-525A
i
F gure 1. 25/70 Volt P-TEC Paging Speaker
3
. Install the Quick-Connect connector on the wire.
Use pliers to close the connector over the wire.
The connector can be removed by prying it open
with a screwdriver, and can be reused several
times (See Figure 2).
Figure 2. Attaching the Reuseable Quick-Connect
Connector
1
Issue 1
Back Box (Optional)

Volume Control

Reusable
Quick-Connect
Connector
Tap Wire
947776
