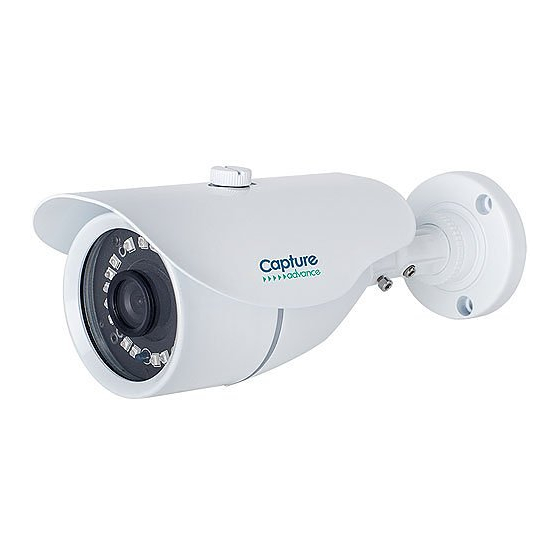

- Page 1 Camera OSD Operation Guide For R2-HD2MPEYE R2-HD2MPBUL ISSUE V1.0 DATE 2022-03-01...
-
Page 2: About This Document
Operation Guide Contents About This Document Purpose This document describes how to use the web management system for DVR and the cameras managed by DVR. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not... -
Page 3: Table Of Contents
Operation Guide Contents Contents About This Document ........................ii 1 OSD Main Menu ........................... 1 1.1 Procedure ..................................1 1.1.1 Camera Control Using Five Buttons .......................... 1 1.2 OSD Main Menu Interface ............................1 2 OSD Setting ........................... 3 2.1 AE ....................................3 2.2 AWB ..................................... -
Page 4: Osd Main Menu
Operation Guide OSD Main Menu 1.1 Procedure 1.1.1 Camera Control Using Five Buttons If your camera has four arrow buttons and one SET button, you can use the buttons to operate the OSD main menu. Figure 1-1 shows the five buttons. Figure 1-1 Five-button layout The buttons have the following functions: ... - Page 5 Operation Guide Figure 1-2 OSD main menu interface ----End Issue V1.0 (2019-03-29)
-
Page 6: Osd Setting
Operation Guide OSD Setting 2.1 AE AE is intended to adjust image brightness by setting parameters such as aperture, shutter, and gain. The EXPOSURE interface includes BRIGHTNESS, EXPOSURE MODE. Procedure Step 1 Press the UP or DOWN button to select AE. Step 2 Press the SET button to open the EXPOSURE interface, as shown in Figure 2-1. -
Page 7: Awb
Operation Guide Step 4 Press the UP or DOWN button to select EXPOSURE MODE and press the LEFT or RIGHT button to select a exposure mode. The exposure mode includes GLOBE, and BLC. − BLC: Press the LEFT or RIGHT button to select BLC, press the LEFT or RIGHT button to adjust BLC value. -
Page 8: Day Night
Operation Guide Figure 2-3 MWB interface 1. Press the UP or DOWN button to select RGAIN, and press the LEFT or RIGHT button to set RGAIN. The default RGAIN is 40 and the setting range is 0-127. 2. Press the UP or DOWN button to select BGAIN, and press the LEFT or RIGHT button to set BGAIN. -
Page 9: Image Enhance
Operation Guide Figure 2-4 DAY/NIGHT interface Step 2 Press the LEFT or RIGHT button to set the Mode. Step 3 Press the UP or DOWN button to select SMART IR to close or open. Step 4 Press the UP or DOWN button to select RETURN and press the SET return to the OSD main menu interface. - Page 10 Operation Guide Figure 2-5 Image enhance Procedure Step 1 Press the UP or DOWN button to select IMAGE ENHANCE. Press the SET button to open the IMAGE ENHANCE interface. Step 2 Press the UP or DOWN button to select CONTRAST. Press the LEFT or RIGHT button to choose manual or auto , manual mode need press DOWN button to go next one, press the LEFT or RIGHT button set the CONTRAST value.
-
Page 11: Video Setting
Operation Guide 2.5 VIDEO SETTING The Video Setting interface includes HD and VIDEO STANDRAD. Procedure Step 1 Press the UP or DOWN button to select VIDEO SETTING. Press the SET button to open the VIDEO SETTING interface, as shown in Figure 2-6. Figure 2-6 Video Setting interface Step 2 Press the UP or DOWN button to select HD FORMAT, and press the LEFT or RIGHT button the interface will show more item APPLY &... -
Page 12: Func
Operation Guide 2.7 FUNC The FUNC interface includes PRIVACY and MOTION. Procedure Step 1 Press the UP or DOWN button to select FUNC. Press the SET button to open the FUNC interface, as shown in Figure 2-7. Figure 2-7 FUNC interface Step 2 Press the UP or DOWN button to select PRIVACY, and press SET button the interface set privacy area, as shown in Figure 2-8. - Page 13 Operation Guide Figure 2-8 Privacy interface Step 3 Press the UP or DOWN button to select MODE, press the LEFT or RIGHT button to select ON or OFF. The mode is on, press the UP or DOWN button to enter the areas to open the area and it will show on screen, as shown in Step 3.
-
Page 14: Reset
Operation Guide Step 4 Press the LEFT or RIGHT button to select ON or OFF, and press the UP or DOWN button to set position and area of privacy area. Press the LEFT or RIGHT button to adjust value of parameters. -
Page 15: Exit
Operation Guide 2.10 EXIT Press the UP or DOWN button to select EXIT, and press the SET button to discard the OSD settings and return to the camera's real-time video interface. Issue V1.0 (2019-03-29)
