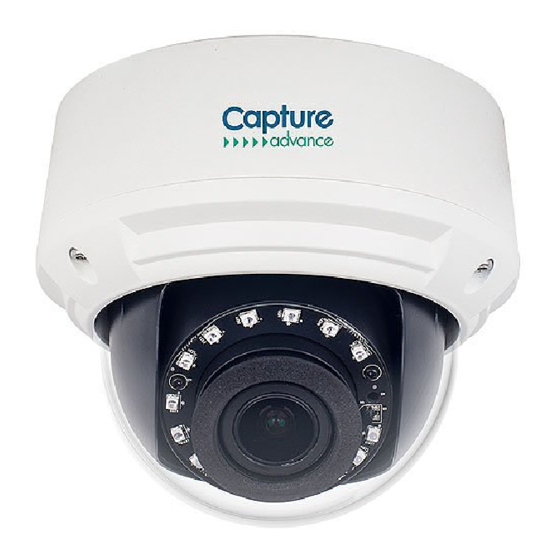

Capture R2-HD5MPDME Operation Manual
  1. Manuals
  2. Brands
  3. Capture Manuals
  4. Digital Camera
  5. R2-HD5MPDME
  6. Operation manual

Capture R2-HD5MPDME Operation Manual

Camera osd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Camera OSD Operation Guide
For R2-HD5MPDME
ISSUE
V1.0
DATE
2022-03-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2-HD5MPDME and is the answer not in the manual?

Questions and answers

Related Manuals for Capture R2-HD5MPDME

Summary of Contents for Capture R2-HD5MPDME

  • Page 1 Camera OSD Operation Guide For R2-HD5MPDME ISSUE V1.0 DATE 2022-03-01...

  • Page 2: About This Document

    Operation Guide Contents About This Document Purpose This document describes how to use the web management system for DVR and the cameras managed by DVR. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not...

  • Page 3: Table Of Contents

    Operation Guide Contents Contents About This Document ........................ii Purpose ....................................ii Symbol Conventions................................ii Contents ............................iii 1 OSD Main Menu ........................... 1 1.1 Procedure ..................................1 1.1.1 Camera Control Using Joystick ..........................1 1.2 OSD Main Menu Interface ............................1 2 OSD Setting ...........................

  • Page 4: Osd Main Menu

    Operation Guide OSD Main Menu 1.1 Procedure 1.1.1 Camera Control Using Joystick If your camera has four arrow buttons and one SET button, you can use the buttons to operate the OSD main menu. Figure 1-1 shows the joystick. Figure 1-1 Joystick layout The buttons have the following functions: ...
  • Page 5 Operation Guide Figure 1-2 OSD main menu interface ----End Issue V1.0 (2022-03-03)

  • Page 6: Osd Setting

    Operation Guide OSD Setting 2.1 AE AE is intended to adjust image brightness by setting parameters such as aperture, shutter, and gain. The EXPOSURE interface includes BRIGHTNESS, EXPOSURE MODE. Procedure Step 1 Press the UP or DOWN button to select AE. Step 2 Press the SET button to open the EXPOSURE interface, as shown in Figure 2-1.

  • Page 7: Awb

    Operation Guide Step 3 Press the UP or DOWN button to select BRIGHTNESS and press the LEFT or RIGHT button to select a brightness value. The default brightness is 6 and the setting range is 0-100. Step 4 Press the UP or DOWN button to select EXPOSURE MODE and press the LEFT or RIGHT button to select a exposure mode.
  • Page 8 Operation Guide Figure 2-2 AWB interface Step 2 Press the LEFT or RIGHT button to set the MODE. The options are ATW and MWB. The default mode is MWB When MWB mode is selected, you can set white balance parameters, as shown in Figure 2-3. Issue V1.0 (2022-03-03)

  • Page 9: Day / Night

    Operation Guide Figure 2-3 MWB interface 1. Press the UP or DOWN button to select RGAIN, and press the LEFT or RIGHT button to set RGAIN. The default RGAIN is 50 and the setting range is 0-100. 2. Press the UP or DOWN button to select BGAIN, and press the LEFT or RIGHT button to set BGAIN.

  • Page 10: Image Enhance

    Operation Guide Figure 2-4 DAY/NIGHT interface Step 2 Press the LEFT or RIGHT button to set the Mode. Step 3 Press the UP or DOWN button to select RETURN and press the SET return to the OSD main menu interface. ----End 2.4 IMAGE ENHANCE The Image Enhance interface includes CONTRAST, SHARPNESS, SATURATE, 2 DNR, D-WDR...
  • Page 11 Operation Guide Figure 2-5 Image enhance Procedure Step 2 Press the UP or DOWN button to select IMAGE ENHANCE. Press the SET button to open the IMAGE ENHANCE interface. Step 3 Press the UP or DOWN button to select CONTRAST. Press the LEFT or RIGHT button to set the CONTRAST mode, AUTO and MANUAL.

  • Page 12: Video Setting

    Operation Guide ----End Step 11 2.5 VIDEO SETTING The Video setting interface includes HD and VIDEO STANDRAD. Procedure Step 1 Press the UP or DOWN button to select VIDEO SETTING. Press the SET button to open the VIDEO SETTING interface, as shown in Figure 2-6. Figure 2-6 Video Setting interface Step 2 Press the UP or DOWN button to select HD, and press the LEFT or RIGHT button the interface will show more item APPLY &...

  • Page 13: Language

    Operation Guide Step 4 Press the UP or DOWN button to select RETURN and press the SET return to the OSD main menu interface. 2.6 LANGUAGE Press the UP or DOWN button to select LANGUAGE, and press the LEFT or RIGHT button to set this parameter.
