MFJ-836 SWR/Wattmeter and RF Ammeter
MFJ-836 SWR/Wattmeter and RF Ammeter
Introduction

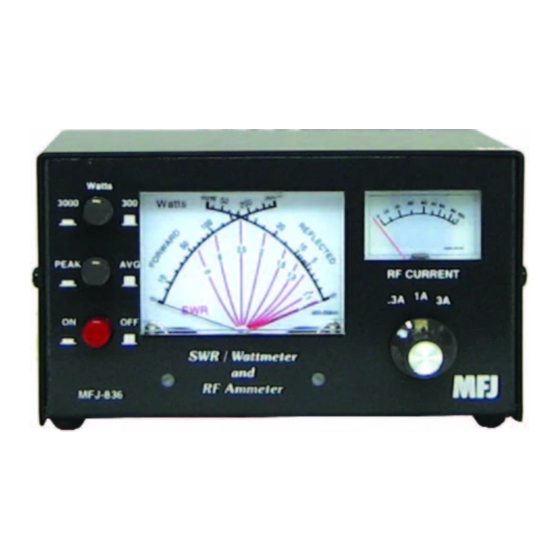

The MFJ-836 is an all-in-one true peak reading SWR/Wattmeter with a built in RF
Ammeter designed to operate on 1.8-30 MHz. The SWR/Wattmeter uses our
TrueActive™ peak reading circuit to read true peak/average forward and reflected power
and SWR simultaneously. It has 3000/300 Watts forward and 600/60 Watts reflected
power scales. The SWR/Wattmeter utilizes a large illuminated three-inch Cross-Needle
meter to read the SWR from 1:1 to ∞. The RF Ammeter measures RF feedline current in
three calibrated ranges: 0.3 Amperes, 1 Ampere, and 3 Amperes.
IMPORTANT:
Please read entire manual before attempting to operate this equipment. This
unit does not provide a dc or low frequency earth ground. A separate wire
should be connected from the station ground bus to an electric ground. Do
not place any non-coaxial feed wires near metallic or RF sensitive devices.
Installation
1. Connect your transmitter to the connector on the back of the unit labeled
TRANSMITTER and your antenna to the connector labeled ANTENNA. It is
important that you use good quality coax and properly installed connectors.
2. The MFJ-836 has a TrueActive™ peak reading circuit included the
SWR/Wattmeter that requires a DC power supply such as the MFJ-1312B in order
to function. A 9 VDC may also be installed inside the meter with a battery clip
that is included. The rear panel accepts a 2.1 mm coaxial plug with the center
conductor positive (+) and the sleeve negative (-). The negative lead is grounded
inside the meter. There is no need to disconnect the battery when using external
power. The RF Ammeter does not require power to operate.
3. An internal lamp backlights the SWR/Wattmeter scale. The lamp circuit requires
12 VDC and will not illuminate with the 9 VDC battery alone.
4. To measure the power output capability of a transmitter/amplifier you should
connect a quality 50-ohm dummy load to the ANTENNA connector of the MFJ-
836.
NOTE:
The SWR/Wattmeter must have a power source in order to function. A nine -
volt battery may be installed in the compartment on the rear panel, or an
external 12 VDC source, such as the optional MFJ-1312D power supply, may
be used.
1
Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MFJ 836
Summary of Contents for MFJ 836
- Page 1 MFJ-836 SWR/Wattmeter and RF Ammeter Introduction The MFJ-836 is an all-in-one true peak reading SWR/Wattmeter with a built in RF Ammeter designed to operate on 1.8-30 MHz. The SWR/Wattmeter uses our TrueActive™ peak reading circuit to read true peak/average forward and reflected power and SWR simultaneously.
- Page 2 MFJ-836 SWR/Wattmeter and RF Ammeter Instruction Manual Operation 1. With the DC power supply or 9 VDC battery installed, push the ON/OFF button in to turn the unit ON. If 12 VDC is used, the SWR/Wattmeter backlight will also be turned ON.
- Page 3 MFJ-836 SWR/Wattmeter and RF Ammeter Instruction Manual needles cross. The SWR is indicated by the red curve closest to the needle crossing point. 8. The RF Ammeter measures RF current in three calibrated ranges: 0.3 Amperes, 1 Ampere, and 3 Amperes. Simply turn the Current Range knob to the desired range.
- Page 4 MFJ-836 SWR/Wattmeter and RF Ammeter Instruction Manual Calibration Both the MFJ-836 SWR/Wattmeter section and RF Ammeter sections have been calibrated at the factory. If the SWR/Wattmeter or RF Ammeter should ever need to be recalibrated, then follow this procedure: Equipment Needed 1.
- Page 5 MFJ-836 SWR/Wattmeter and RF Ammeter Instruction Manual 7. With the 3000/300-Watts button pushed out for the 60 Watt reflected scale, Transmit 10 Watts as indicated on the reference meter. Adjust the LO REF trim pot to set the reflected power scale to 10 Watts.
- Page 6 5 Watts. RF burns or permanent injury may result from contact with high RF voltages. If your meter is out of calibration and you lack the equipment or skills to perform the calibration procedure, you may return it to the MFJ factory for service.
- Page 7 MFJ-836 SWR/Wattmeter and RF Ammeter Instruction Manual Schematic...
- Page 8 You can also send questions by mail to MFJ Enterprises, Inc., 300 Industrial Park Road, Starkville, MS 39759; by Facsimile (FAX) to 662-323-6551; or by email to techinfo@mfjenterprises.com.
