Reliable 6200VB Assembly

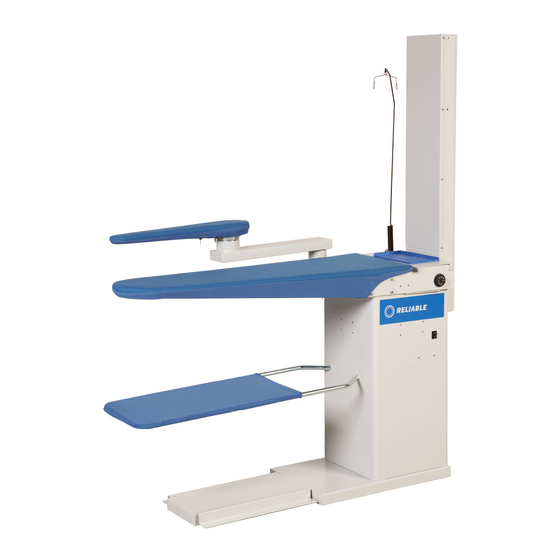

VACUUM TABLE ASSEMBLY 6000VB/6200VB
These assembly instructions are based upon the 6200VB vacuum
table. Each vacuum table model varies slightly in design, but the
general assembly is the same for all.

GENERAL

1. Remove all packaging wrap from the vacuum table.
2. Confirm that you have the following loose parts:

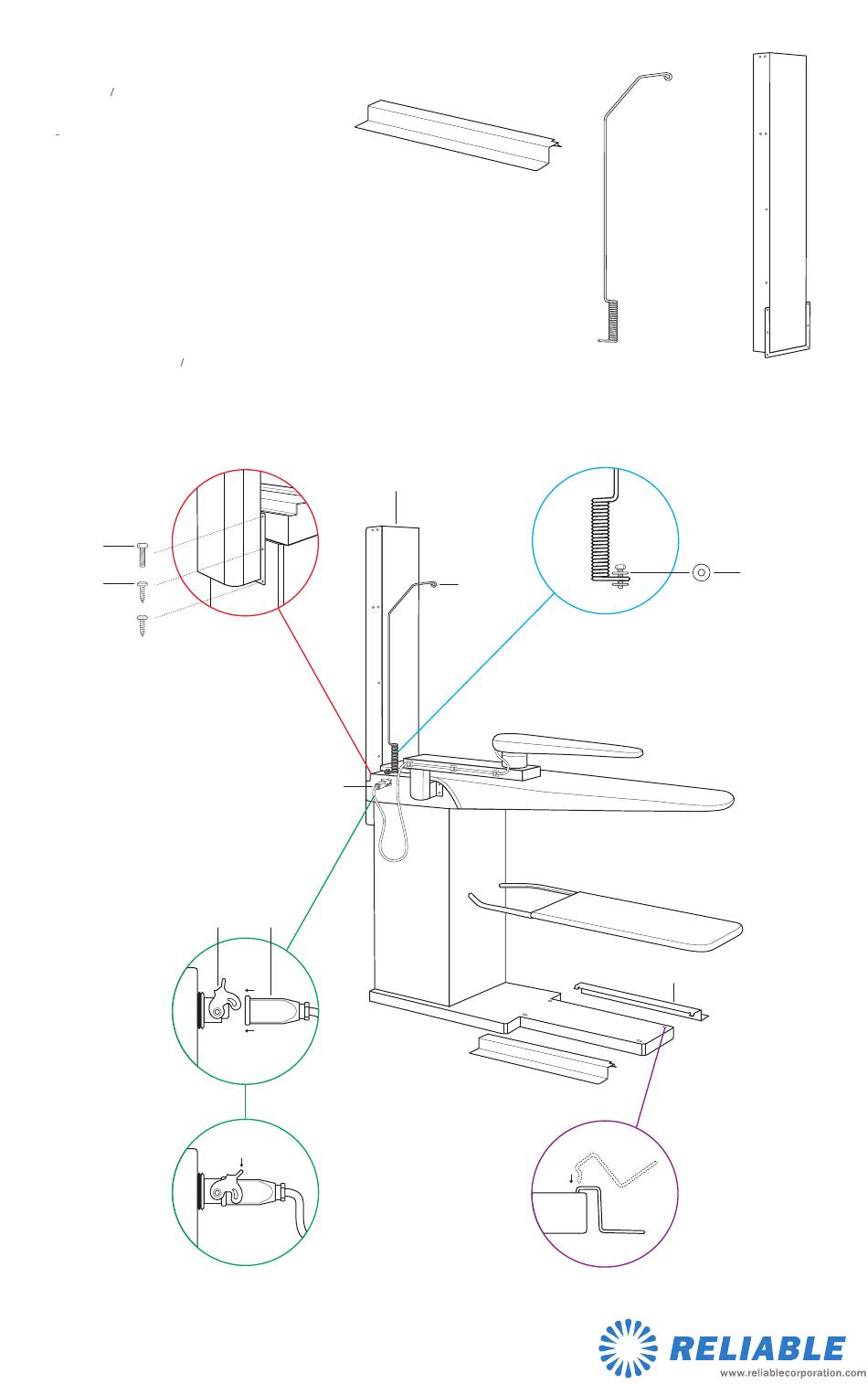

CHIMNEY
CORD SUPPORT
PEDAL(S) The 6000VB has two pedals.
CHIMNEY
1. From the side of the vacuum table remove the
wrench) and the (use Phillips head screw driver).
4 SCREWS
2. Using the 2 bolts and the 4 screws, attach the chimney (two people
may be needed for this task – one to hold the chimney and the other to
attach it with the supplied hardware).
CORD SUPPORT
1. Remove the bolt and 2 washers from the top of the vacuum table (a
small hole will now be visible).
2. Put 1 washer over the hole at the top of the vacuum table, place the
cord support base loop over the washer then layer the second
washer on top of the base loop.
Using the bolt by placing it through the washers and base loop,
securely fasten the cord support to the vacuum table.
PEDAL(S)
1. Insert the small tabs on the foot pedal plate into the small
corresponding slots on the base of the table.
BUCK POWER
(6200VB)
1. Open the outlet by lifting the locking flap firmly but carefully.
2. Insert the 4-pin plug attached to the buck.
. Firmly close the locking flap.
bolt
screw
(use 8mm
2 BOLTS
BUCK POWER
locking flap 4-pin plug
PEDAL(S)
CHIMNEY
CORD SUPPORT
CORD SUPPORT
CHIMNEY
PEDAL(S)
washer
