Reliable 6600VB Assembly

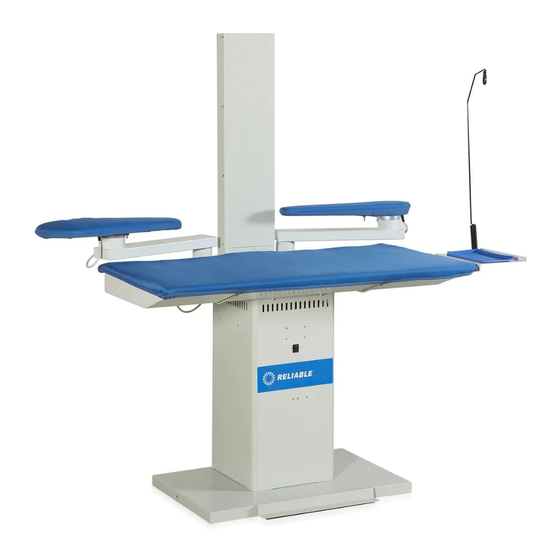

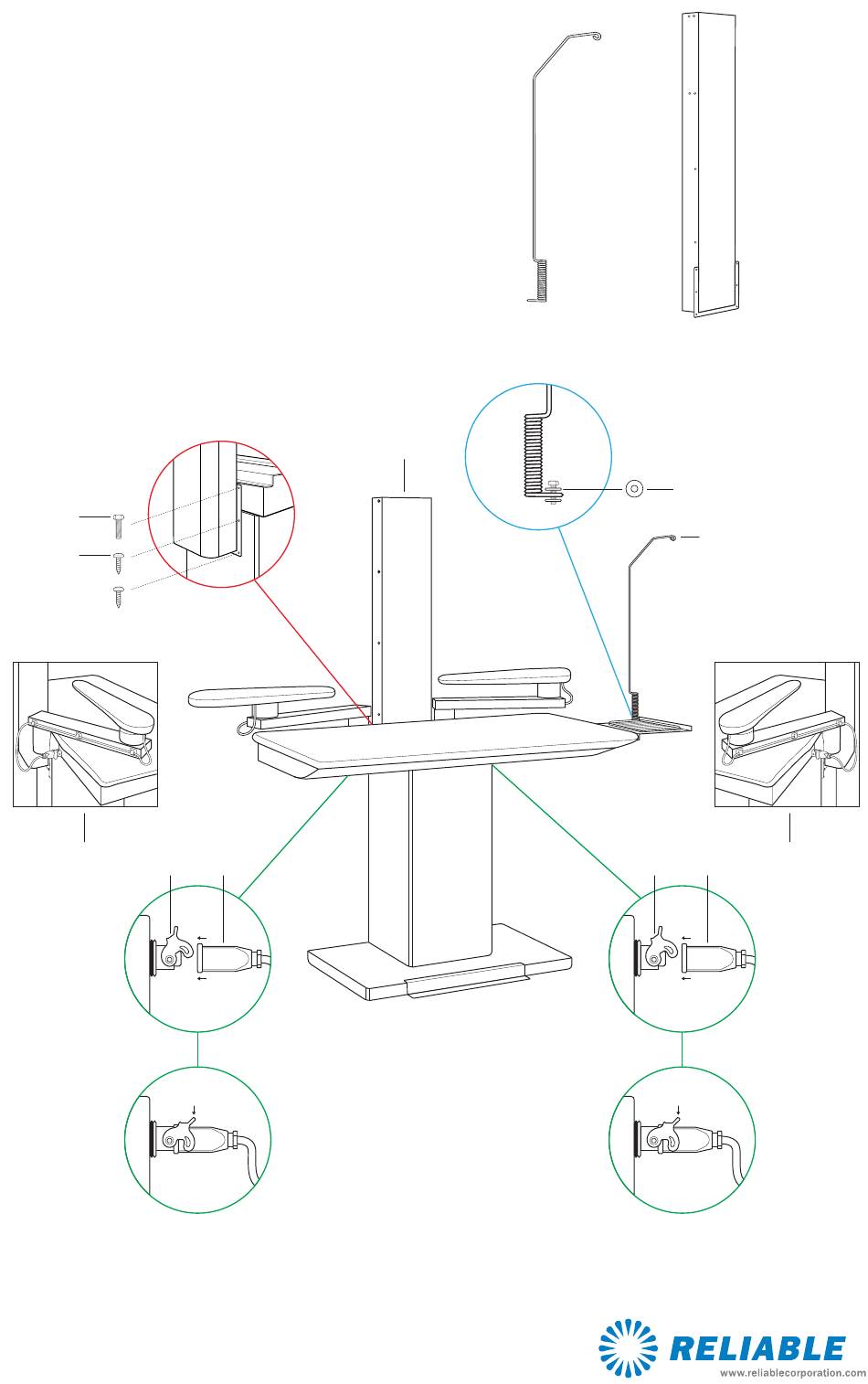

VACUUM TABLE ASSEMBLY 6600VB

GENERAL

1. Remove all packaging/wrap from the vacuum table.
2. Confirm that you have the following loose parts:

CHIMNEY

CORD SUPPORT

CHIMNEY
1. From the back of the vacuum table remove the
wrench) and the (use Phillips head screw driver).
4 SCREWS
2. Using the 2 bolts and the 4 screws, attach the chimney (two people
may be needed for this task – one to hold the chimney and the other
to attach it with the supplied hardware).
CORD SUPPORT
1. Remove the bolt and 2 washers from the top of the vacuum table (a
small hole will now be visible).
2. Put 1 washer over the hole at the top of the vacuum table, place the
cord support 'base loop' over the washer then layer the second
washer on top of the 'base loop.'
3. Using the bolt by placing it through the washers and 'base loop,'
securely fasten the cord support to the vacuum table.

BUCK POWER

1. Open the 'outlet' by lifting the 'locking flap' firmly but carefully.
2. Insert the 4-pin plug attached to the buck(s).
3. Firmly close the 'locking flap.'
bolt
screw
BACK VIEW
BUCK POWER
locking flap
(back view)
(use 8mm
2 BOLTS
4-pin plug
CORD SUPPORT
CHIMNEY
CHIMNEY
washer
CORD SUPPORT
BACK VIEW
BUCK POWER
4-pin plug
locking flap
(back view)
