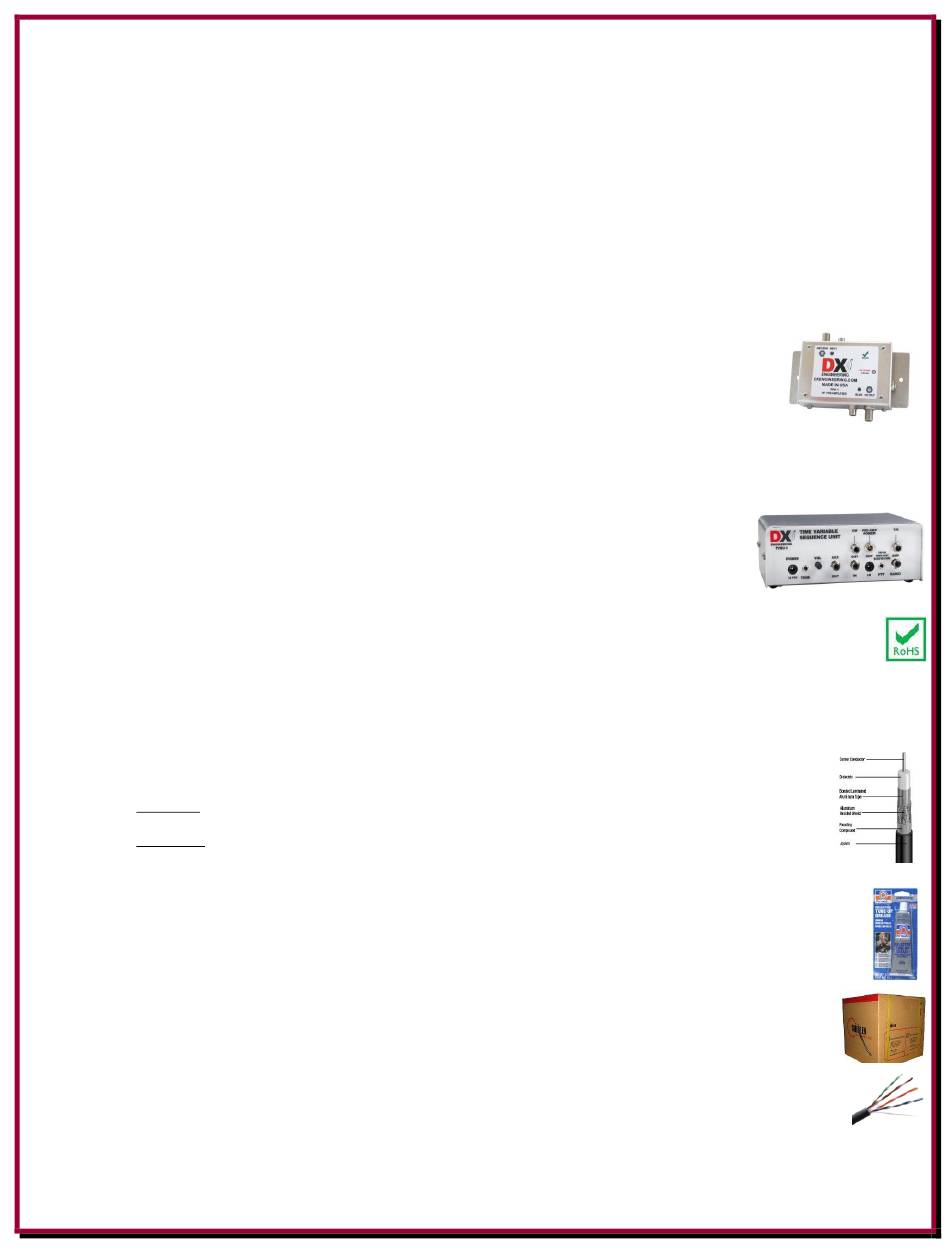

DXE-UT-KITF - F-Connector Coaxial Cable Prep Tool Kit
This cost-saving kit provides a handsome, convenient carrying case complete with the DX Engineering F-6 coaxial cable prep tools
and accessories. It features a rugged, lockable enclosure fitted with a precut foam insert with a home for each tool.
The DXE-UT-KITF kit provides the case complete with the following:
DXE-CPT-659- Stripping Tool for RG-59/F-6 size cable w/extra blades
DXE-SNS6-25 - Snap-N-Seal Watertight F Connectors - qty. 25 pcs
DXE-SNS-CT1 - SNS Connector Compression Tool
CNL-911 - Coaxial Cable Shears
DXE-CIT-1 - F Connector Tightening Tool
Receiver Preamplifier 0.3-35 MHz - DXE-RPA-1
This is the best HF low noise amplifier available. The RPA-1 is optimized for 0.3-35 MHz operating range. The push-pull amplifier
design and robust components enable it to withstand high signal levels and operate when you need it most. The dynamic range of the
RPA-1 is better than most receivers. The RPA-1 is suitable for indoor or outdoor installation, with the option of being powered
through the coaxial feed. The metal housing provides shielding and improved lifespan. The unit uses RCA type
phono jack and CATV F connector for the input and output connections, and has a relay that automatically
bypasses the amplifier when dc power is removed. Benefits: Push-pull operation eliminates harmonic distortion,
High quiescent current increases ability to handle strong signals without distortion or overload, Meticulous
craftsmanship and durable components provide superior dynamic range, RCA type phono jack and type F connector
ease installation, Simplified switching - automatic bypass eliminates gain when dc power is off, 10-18 Vdc power
using power connector or through the coax, 10-18 Vdc through coax enables remote operation at antenna
Time Variable Sequencer Unit - DXE-TVSU-1A
The DX Engineering TVSU-1A Time Variable Sequencer Unit is a microprocessor-based transmit / receive control-signal delay
unit. It provides 0-30 ms of delay, programmable in 2 ms increments, to as many as five outputs tied to the CW
keying or push-to-talk (PTT) lines. By controlling the receive-to-transmit (and back) timing of linear
amplifiers, preamplifiers, and other sensitive equipment, damage caused by improper switching can be
eliminated. This sequencer improves CW performance by eliminating annoying leading edge chopping or
truncating of Morse characters. This is especially important in contests or pileups where sending accuracy is
critical. Now RoHS compliant, the TVSU-1A can also control external devices such as preamps, active
antennas, or external relays that need to have power removed during transmit. Separate power-in and power-out jacks on the front
panel are used to control external power in this type of application. Two 2.1 mm power plugs and two 3.5 mm stereo plugs are
provided. Benefits: Control timing of PTT turn-on, hang delay of PTT, amplifier hang delay, external antenna relay hang delay and
turn-on delay of auxiliary output, Dip switch settable delays of 0-30 milliseconds in 2 millisecond steps, Side tone generator that
follows input of keyer or hand key not transmitter, Side tone pitch can be programmed from 300 to 1000 Hz in 50 Hz steps, front
panel headphone jack with adjustable volume, Supports CW full break in, Can control external power to our Active Receive
Antennas and permit operation in closer proximity to transmit antennas.
DXE-F6-1000 - 75Ω F-6 Style Direct Bury Coax, 1000 ft. Spool Hi Quality "Flooded" Coax
Center Conductor: 18 AWG Copper-Clad Steel, Nominal Diameter: 0.040 in.
Dielectric: Gas Expanded Polyethylene, Nominal Diameter Over Dielectric: 0.180 in.
Shield: 1st Shield: Aluminum-Polypropylene-Aluminum, Laminated Tape with overlap Bonded to the Dielectric,
Nominal Diameter Over Tape: 0.187 in.
2nd Shield: 34 AWG Aluminum Braid Wire, 60% Coverage
Jacket: PE (Flooded for Underground), Nominal Diameter Over Jacket: 0.272 in., Nominal Jacket Thickness: 0.030 in.
Electrical Properties: Impedance: 75.0 +/- 3.0 Ω, Velocity of Propagation: 85.0% Nominal
Sold by the spool, or as Custom Cable Assemblies
DXE-22058 - Permatex Dielectric grease, 3 oz.
Dielectric grease is ideal for keeping moisture from entering your coaxial connectors. It also acts as a lubricant allowing easy
connector removal by stopping corrosion of electrical connectors. Multi-use 3 oz package. Safe for all RF connections.
DXE-CW9-1K - Shielded Control Wire, Economically Priced, 9 Conductor, 1000 ft Reel
Economically priced DXE-CW9-1K is a 1000 foot box of high quality shielded outdoor FTP (Foil Twisted Pair) Cat 5e
cable. It features 4 Twisted pairs of 24 AWG solid wire with Al foil shielding plus a solid tinned copper drain wire -
providing a total of 9 conductors for DC switching applications. It has a polyethylene jacket and is rated for direct burial. A
nice feature is the "rip cord", which allows for easy stripping of the heavy jacket without worry about nicking or accidentally
cutting the conductors. Excellent for use in all outdoor applications of switching, networking, data transfer and phone lines. As
a data transfer line, it supports 10/100/1000 Mbps.
