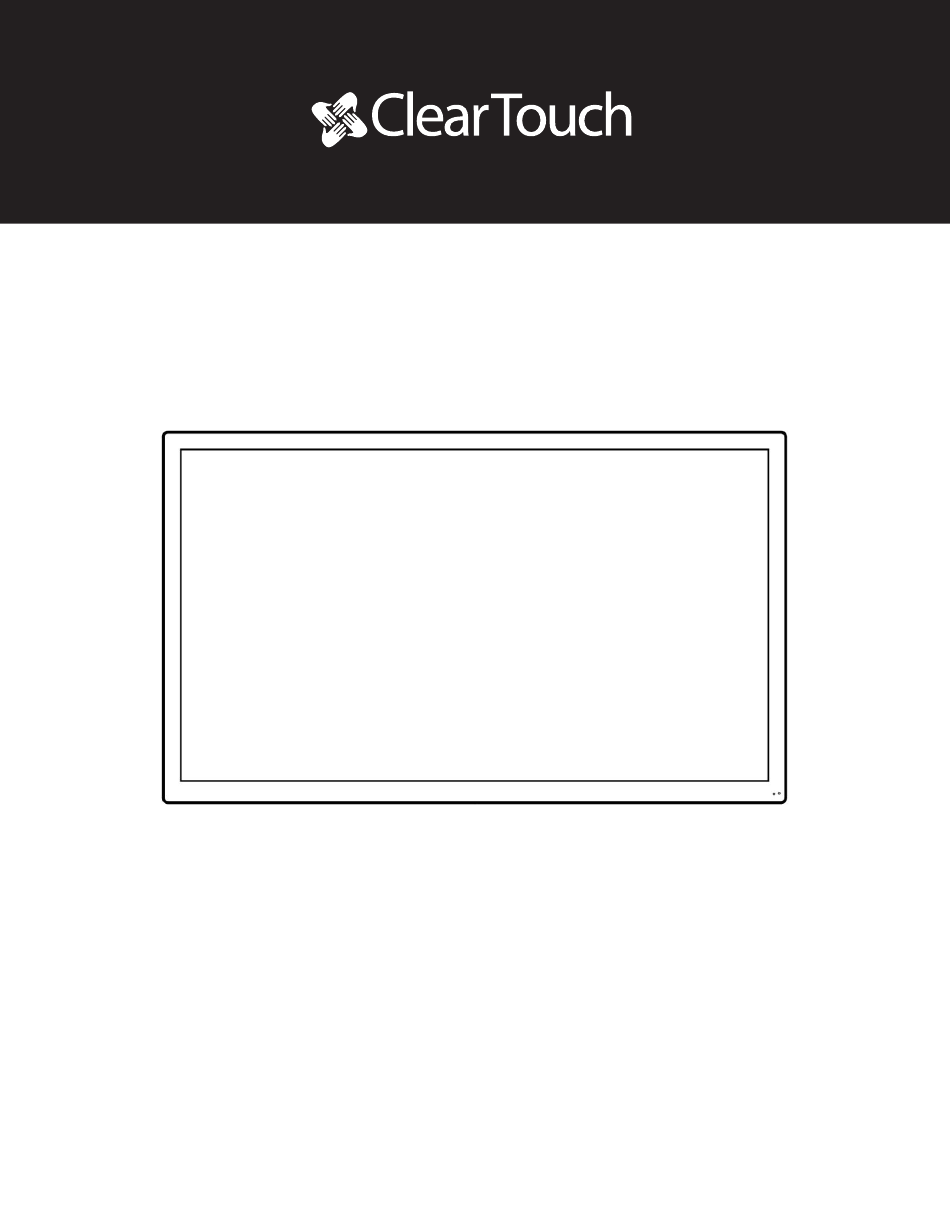

7 0 0 0 X E S E R I E S
User's Manual
Note: All the pictures in the manual are for reference only, subject to our available products.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7000XE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Clear Touch 7000XE Series

Summary of Contents for Clear Touch 7000XE Series

  • Page 1 7 0 0 0 X E S E R I E S User’s Manual Note: All the pictures in the manual are for reference only, subject to our available products.

  • Page 2: Table Of Contents

    Contents Safety Warning FCC Statement FCC Warning Control Panel Connection and Setting Menu Operation Simple Troubleshooting Maintenance...

  • Page 3: Safety Warning

    Safety Warning Safety Warning Before operating, please read this manual thoroughly, and keep it for future reference. Image shown in this manual is indicative only. There may be differences between the pictures and the actual product. Placement Do not put heavy objects on top of the unit. Do not put the unit near appliances that generate magnetic fields.
  • Page 4 Safety Warning Ventilation Please put the unit in a well-ventilated place, so the heating can be released easily. Ensure that the unit has enough space for ventilation. Space requirement: left, right and back >10cm, top> 20cm. Earphone Before using earphone, please turn down the volume in advance. Using the earphone to listen to loud sound for a long time might affect the hearing.

  • Page 5: Fcc Statement

    FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 6: Control Panel

    Control Panel Control Panel 1. Prepare to Install Number Items Function description Remote control signal receiver Receiving remote control signal, do not place any objects to block remote Power indicator light Indicates the working state of the power supply Tap to enter Energy Saving Function. Press at least 2 seconds to enter standby mode USB 2.0 Connect USB device...
  • Page 7 Control Panel 2. Terminal Interface AUDIO IN HDMI IN 1 & 2 HDMI OUT AV IN & OUT SPDIF RS232 AC IN AC SWITCH Note: Some models have the following terminals Number Items Function description HDMI OUT Connect to the devices with HDMI input function USB 3.0 Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, etc.
  • Page 8 Control Panel Number Items Function description AUDIO IN External computer audio input SPDIF Carry multichannel sound via optical signals. RS232 Serial interface, used for mutual transfer of data between devices AUDIO OUT Audio output to the external speaker Connect RJ45 terminals USB 2.0 Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, etc.
  • Page 9 Control Panel 3. Remote Control Detailed Function Description : Power on/off : Mute switch 3. Start: Built-in computer Windows key 4. Space: Built-in computer Space key 5. Alt + Tab: Built-in computer space bar Alt + Tab 6. Alt + F4: Built-in computer program window close button 7.
  • Page 10 Control Panel Remote Control Instruction Install Batteries 1. Open back cover of battery component on the back of remote control. 2. Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct (“+”to”+”, “-” to “-”), please do not mix using old and new batteries. 3.

  • Page 11: Connection And Setting

    Connection and Settings Connnection and Settings For the safety of you and the machine, please do not connect any power plug before connection. 1. External Computer and Touch Connection 1. Use VGA cable to connect to VGA output port of external computer, and meanwhile use headphone audio cable to connect to external computer audio output interface.
  • Page 12 Connection and Settings 1. HDMI IN Connection HDMI Cable HDMI IN DVD Disc Player 1. Use HDMI cable to connect audio and video equipment with HDMI output. 2. After cable connection, plug in power cord, and switch power on. 3. Press to turn equipment on.

  • Page 13: Menu Operation

    Menu Operation Menu Operation Touch Menu Operation Call-up Method Take middle point position on the bottom of display screen as starting point, use touch pen to drag towards screen center position to call up touch menu, as shown below. Note: “Touch A Method” mentioned in this manual to call up touch menu method is shown above.
  • Page 14 Menu Operation Setting Menu General Setting • Press INPUT button on remote control or via touch A method to call up General Setting menu. • Press | | button on remote control to select the channel you need. • Press the Enter button on remote control or directly click with touch pen to confirm selected input channel.
  • Page 15 Menu Operation Detail Setting Menu Press Menu on remote control or click the icon • • • on General Setting menu with touch pen to call up detail setting menu. Detail setting menu includes Audio, Screen, Display and Adjust. Audio •...
  • Page 16 Menu Operation Screen • Press button on remote control to select Screen setting menu. • Press | | on remote control or directly click with touch pen to select the option. • Press Enter on remote control or directly click with touch pen to enter the selected mode. •...
  • Page 17 Menu Operation Display • Press button on remote control to select Display setting menu. • Press button | | on remote control or directly click with touch pen to select the option. • Press Enter on remote control to enter adjustment mode, and press button or directly click with touch pen to adjust each option.
  • Page 18 Menu Operation Adjust • Press button on remote control to select Adjust setting menu. • Press button | | on remote control or directly click with touch pen to select the option. • Press Enter on remote control to enter adjustment mode, and press | button or directly click with touch pen to adjust each option.

  • Page 19: Simple Troubleshooting

    Simple Troubleshooting Simple Troubleshooting Machine Fails to work Normally Situation Solution Remote control failure • Check whether there are other objects between remote control and equipment control receiving window, thus leading to failure of remote control. • Check whether the battery electrode in the remote control is correct. •...
  • Page 20 Simple Troubleshooting Video Function Can’t Work Normally Situation Solution No picture and no sound • Check whether the machine is started state. • Check whether signal wire is well plugged, whether INPUT is corresponding to it. • If in internal computer mode, check whether internal computer is started. With horizontal or vertical stripes •...

  • Page 21: Maintenance

    Maintenance Maintenance Proper maintenance and careful cleaning can help prolong the life of your panel. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean Screen 1. Please mix and stir even a little fabric softener or tableware detergent with alcohol. 2.
