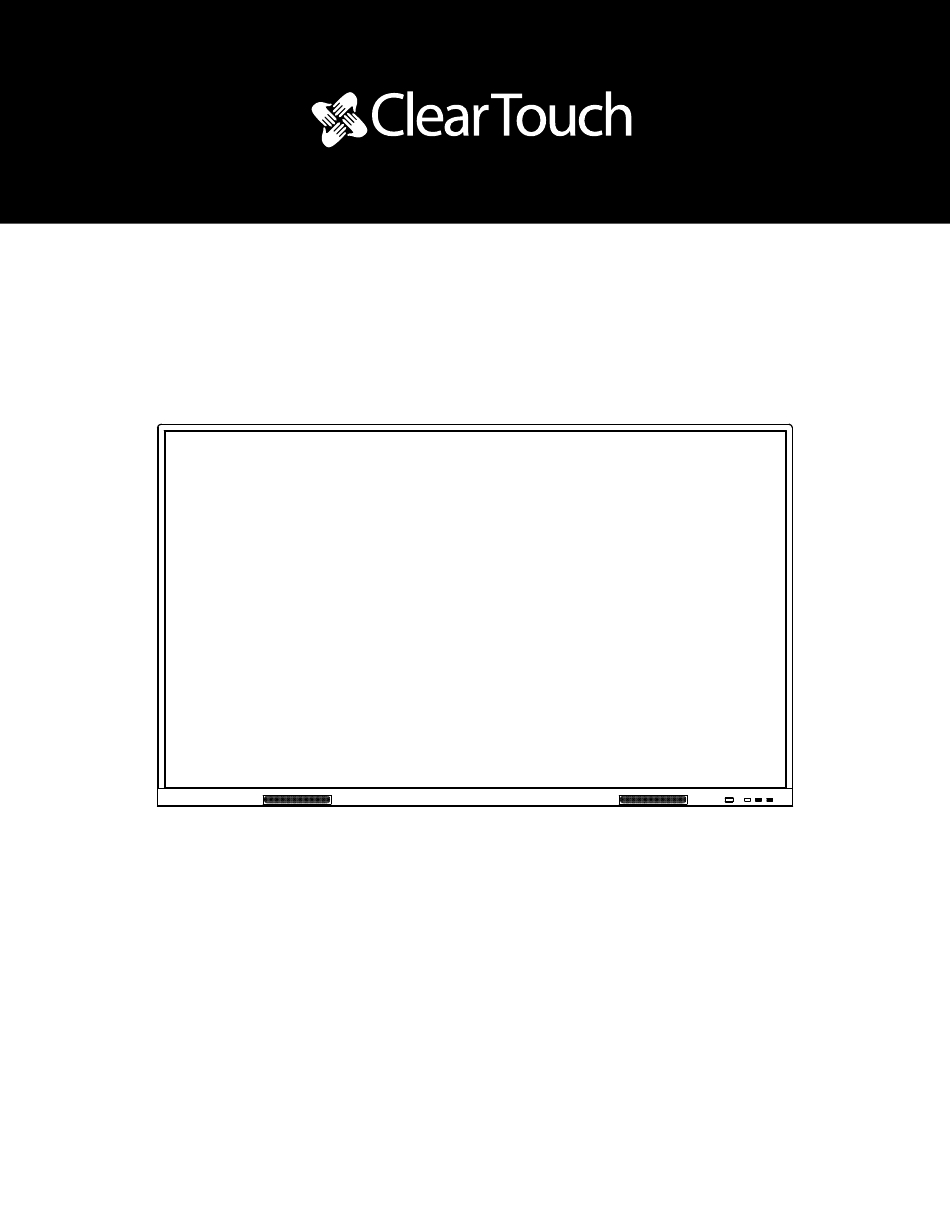

- Page 1 6 0 0 0 K + S E R I E S Quick Start Guide *Image shown here is indicative only. If there is any inconsistency between the image and the actual product you receive, the actual product will govern.
- Page 2 Contents Safety Warning Connection Maintenance...
- Page 3 Safety Warning Safety Warning Before operating, please read this manual thoroughly, and keep it for future reference. Images shown in this manual are indicative only. There may be differences between the pictures and the actual product. Placement Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. Do not expose the unit to direct sunlight and other sources of heat.
- Page 4 Safety Warning Humidity Do not expose the unit to rain or place near water. Ventilation Don’t cover the ventillation. Ensure that the unit has enough space for ventilation around: left, right and back >10cm, top> 20cm. Earphone Listening to loud noises for a long period will affect your hearing. Before using earphones, please turn down the volume in advance.
- Page 5 Connection Power Powering the machine on/off 1. Plug the power cable into the power socket of the unit. 2. Plug the power cable into the power supply. 3. Press the on/of button to startup the unit. “I” means power on, “O” means power off. 4.
- Page 6 Connection External Touch Connection USB 3.0 B SOCKET Touch Screen Compatability Use the USB touch cable to connect an external computer to the interactive Panel’s corresponding interface as shown. After switching the computer’s image to the plate output, it can achieve the touch function.
- Page 7 Connection Connection of Common Ports For the number and type of the equipment port, please refer to the actual product. The input source as follow is used just for example. 1. Audio Out Audio Cable Audio Out Audio Device 2. LAN Network Cable Internet 3.
- Page 8 Connection 6. VGA (Audio In) VGA Cable Computer VGA IN 7. USB USB Cable USB Device...
- Page 9 Maintenance Maintenance Proper maintenance can prevent many failures early on in the product’s life. Regular careful cleaning can keep the unit appearing brand new. Please unplug the power line before cleaning and maintenance to prevent electric shock. Clean Screen 1. Evenly mix some fabric softener or detergent with alcohol. 2.
- Page 10 (864) 973-7973 • info@getcleartouch.com getcleartouch.com...
