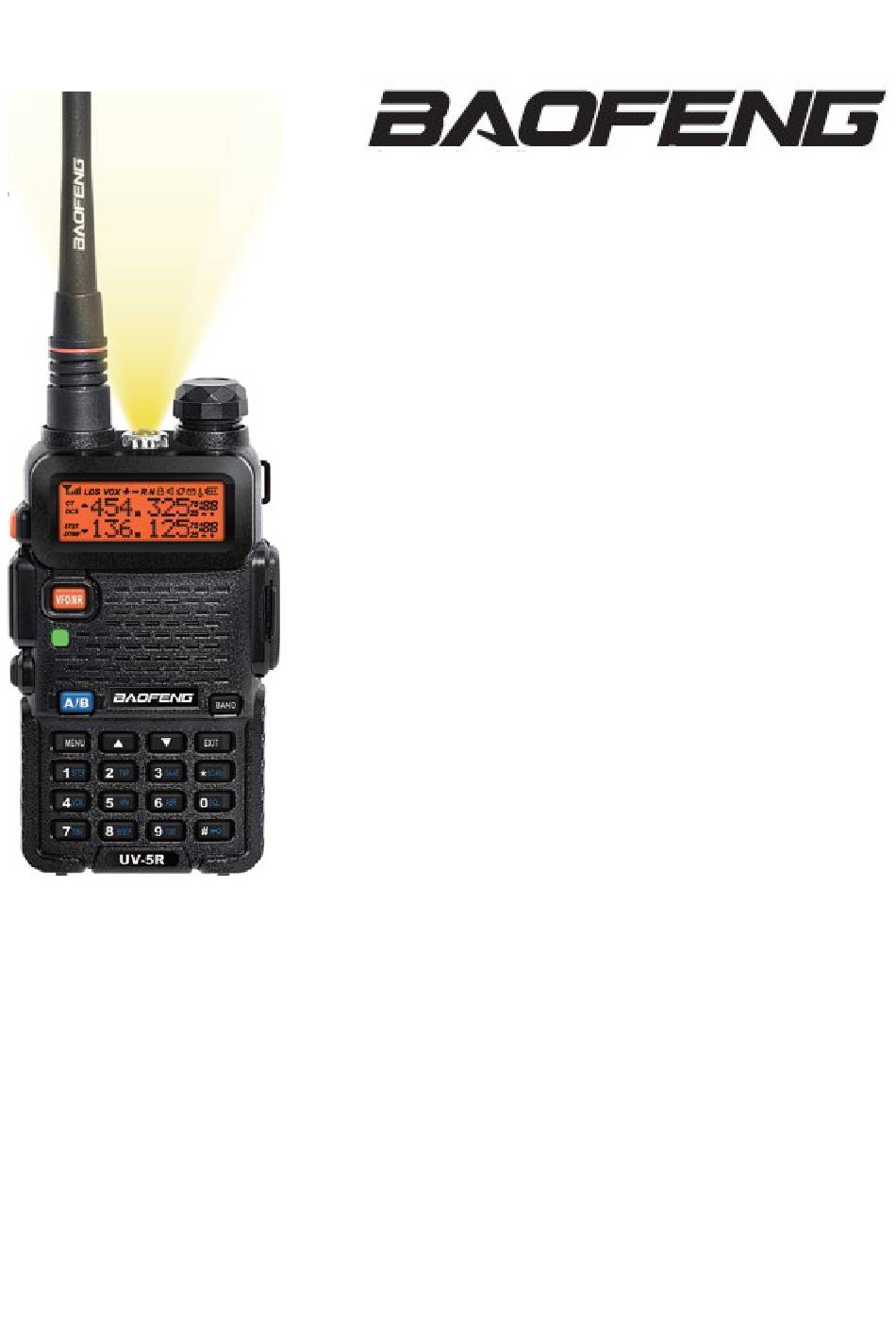

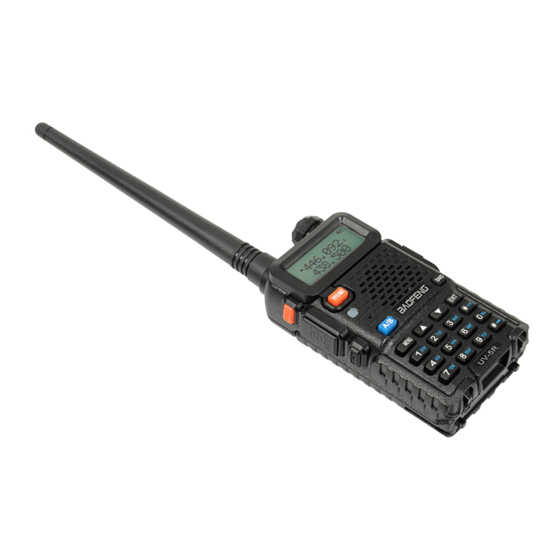

- Page 1 DUAL BAND/DUAL DISPLAY RADIO UV-5RA PERATING ANUAL...
- Page 2 PREFACE Thank you for purchasing UV-5RA Portable Radio, which is a dual band/dual display radio. This easy-to-use radio will deliver you secure, instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio.
-
Page 3: Advanced Operation
CONTENT 1.SAFETY INFORMATION 2.FEATURES AND FUNCTIONS 3.UNPACKING AND CHECKING EQUIPMENTS 4. OPTIONAL ACCESSORIES 5. INSTALLATION OF ACCESSORIES 5.1. INSTALLING THE ANTENNA 5.2. INSTALLING THE BELT CLIP 5.3. MICROHEADSET INSTALLATION OF EXTERNAL 5.4. – BATTERY INSTALLATION 6.BATTERY CHARGING 7.BATTERY INFORMATION 7.1.INITIAL USE 7.2.BATTERY TIPS 7.3.PROLONG BATTERY LIFE 7.4.BATTERY STORAGE 8.PARTS, CONTROLS AND KEYS 8.1.RADIO OVERVIEW 8.2. COMMAND/KEY DEFINITION 9.‘LCD’ DISPLAY 10. 1750 Hz TONE FOR ACCESS TO REPEATERS 11.1.RADIO ONOFF/VOLUME CONTROL 11.2. SELECTING A FREQUENCY OR CHANNEL 12ADVANCED OPERATION ... -
Page 4: Troubleshooting
12.1.SET MENU DESCRIPTION 12.2.SHORTCUT MENU OPERATION 12.3. “SQL” (SQUELCH) 12.4.FUNCTION “VOX” (VOICE OPERATED TRANSMISSION) 12.5.‐ SELECT WIDEBAND OR NARROW BAND “W/N” 12.6.‐TDR (DUAL WATCH/DUAL RECEPTION) 12.7. TOT(TRANSMISSION TIMER) 12.8.CTCSS/DCS 12.9. ANI 12.10. DTMFST (DTMF TONE OF TRANSMITTING CODE ) 12.11. SCREV(SCAN RESUME METHOD) 12.12. PTTID(PTT OR RELEASE PTT TO TRANSMIT THE SIGNAL CODE) 12.13BCL(BUSY CHANNEL LOCKOUT) 12.14. SFTD(DIRECTION OF FREQUENCY SHIFT) 12.15. OFFSET(FREQUENCY SHIFT) 12.16.STE(STE TAIL TONE ELIMATION) 13.CTCSS TABLE 14.DCS TABLE 15.TECHNICAL SPECIFICATION 15.1.GENERAL 15.2. – TRANSMITTER 15.3. RECEIVER 16.TROUBLESHOOTING 17.WARRANTY... -
Page 5: Safety Information
◇ This equipment shall be serviced by qualified technicians only. ◇ Do not modify the radio for any reason. ◇ Use only BAOFENG supplied or approved batteries and chargers. ◇ Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result. -
Page 6: Features And Functions
2.FEATURES AND FUNCTIONS: -Dual-band handheld transceiver with display function menu on the display "LCD". - DTMF encoded. - Commercial FM radio receiver (65 MHz ~ 108 MHz). - Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable. - Function "VOX" (voice operated transmission). - Alarm function. -
Page 7: Optional Accessories
Note: - Items included in the package, may differ from those listed in the table above depending on the country of purchase. For more information, consult your dealer or vendor. 4. OPTIONAL ACCESSORIES: Note: ‐ Consult the dealer or retailer for information about options available. 5. INSTALLATION OF ACCESSORIES: 5.1. INSTALLING THE ANTENNA: ... -
Page 8: Microheadset Installation Of External
5.3. MICROHEADSET INSTALLATION OF EXTERNAL: Plug the external micro-headset connector into the jack of ‘SP. & MIC’ of the transceiver as shown in the figure below. 5.4. – BATTERY INSTALLATION: -When attaching the battery, make sure the battery is in parallel and in good contact with the aluminum chassis. -
Page 9: Battery Charging
6.BATTERY CHARGING: Use only the charger specified by the manufacturer. The charger’s LED indicates the charging progress. CHARGING STATUS LED INDICATION Standby (no-load) Red LED flashes,while Green LED glows Charging Red LED solidly glows Fully Charged Green LED solidly glows Error Red LED flashes,while Green LED glows Please follow these steps: 1. -
Page 10: Battery Tips
7.2.BATTERY TIPS: 1. When charging your battery, keep it at a temperature among 5℃ - 40℃. Temperature out of the limit may cause battery leakage or damage. 2. When charging a battery attached to a radio, turn the radio off to ensure a full charge. 3. -
Page 11: Band】Button
① antenna 11.accessory jack ② flashlight 12.A/B key(frequency display switches) 3. knob (ON/OFF,volume) 13.BAND key(band switches) 4.LCD 14.keypad 5.SK-side key1/CALL(radio,alarm) 15.SP.&MIC. 6.SK-side key2/MONI(flashlight,monitor) 16.battery pack 7. PTT key(push-to-talk) 17.battery contacts 8.VFO/MR (frequency mode/channel mode) 18.battery remove button 9.LED indicator 10.strap buckle 8.2. COMMAND/KEY DEFINITION: ... -
Page 12: Numeric Keypad
-Press the 【*SCAN】key for 2 seconds to start scanning(frequency/channel). - While FM radio being activated,press the 【*SCAN】key to search FM radio station. -While setting the RX CTCSS/DCS, press the key 【*SCAN】to scan the RX CTCSS/DCS. KEY: -Under channel mode, press key to switch High/Low transmit power. -
Page 13: Basic Operation
75/25 ‘CTCSS’ activated. ‘DCS’ activated. Frequency offset direction for accessing repeaters. Dual Watch/Dual Reception functions activated. Function ‘VOX’ enabled. Reverse function activated. Wide Band selected. Battery Level indicator Keypad lock function activated. Low transmit power. Operation frequency. ▲▼ Signal Strength Level. 10. 1750 Hz TONE FOR ACCESS TO REPEATERS: ... - Page 14 Menu Function/Description Available settings 0 SQL (Squelch level) 0‐9 1 STEP(Frequency step) 6.25/12.5 kHz 2 TXP(Transmit power) HIGH/LOW 3 SAVE( Battery save,1:1/1:2/1:3/1:4) OFF/1/2/3/4 4 VOX(Voice operated transmission) OFF/0‐10 5 W/N( Wideband/narrowband) WIDE/NARR 6 ABR(Display illumination) OFF/1/2/3/4/5s 7 TDR(Dual watch/dual reception) OFF/ON 8 BEEP(Keypad beep) OFF/ON 9 TOT(Transmission timer) 15/30/45/60.../585/600seconds 10 R‐DCS(Reception digital coded squelch) OFF/D023N...D754I 11 R‐CTS(Reception Continuous Tone Coded Squelch) ...
-
Page 15: Shortcut Menu Operation
40 RESET (Restore to default setting) VFO/ALL 12.2.SHORTCUT MENU OPERATION: ▲ ▼ 1.‐Press the key MENU,then press the key or to select the desired menu. 2.‐Press the key MENU again, come to the parameter setting. 3.‐Press the key ▲ or ▼ to select the desired parameter. 4.‐Press the key MENU to confirm and save, press the key EXIT to cancel setting or clear the input. 12.3. “SQL” (SQUELCH): ‐The squelch mute the speaker of the transceiver in the absence of reception. With ... - Page 16 12.7. TOT(TRANSMISSION TIMER): This function can automatically control the time we transmit each time you press [PTT] on the transceiver. This feature is very useful to avoid overheating excessive power transistors of the transceiver. The transceiver will be off transmission automatically once the set time. ...
- Page 17 Notes: ‐ "TO" (Time Operation): Scanning will stop when it detects an active signal. The scanning will stop on each channel or active frequency for a predetermined time, after that time the scan will resume automatically. ‐ "CO" (Carrier Operation): The scanning will stop and remain in the frequency or channel, until the active signal disappears. ‐ "SE"(Search Operation): The scanning will stop and remain in the frequency or channel after it detects an active signal. 12.12. PTTID(PTT OR RELEASE PTT TO TRANSMIT THE SIGNAL CODE): ‐This feature allows you to know who call you. ‐“OFF”—Don’t transmit the code while push the PTT button. ‐“BOT”‐Transmit the code while push the PTT button.(the code only could be set by PC software.) ‐“EOT”‐Transmit the code while release the PTT button. ‐“BOTH”‐Transmit the code while push or release the PTT button. 12.13. BCL(BUSY CHANNEL LOCKOUT): The BCLO feature prevents the radio’s transmitter from being activated if a signal strong enough to break through the “noise” squelch is present. On a frequency where stations using different CTCSS or DCS codes may be active, BCLO prevents you from disrupting their communications accidentally (because your radio may be muted by its own tone decoder). 12.14. SFTD(DIRECTION OF FREQUENCY SHIFT): The "OFFSET" is the difference or offset between the reception frequency and the frequency of transmission for access to amateur radio repeaters.
-
Page 18: Ctcss Table
13.CTCSS TABLE: Nº Tone Nº Tone Nº Tone Nº Tone Nº Tone (Hz) (Hz) (Hz) (Hz) (Hz) 67.0 94.8 131.8 171.3 203.5 69.3 97.4 136.5 173.8 206.5 71.9 100.0 141.3 177.3 210.7 74.4 103.5 146.2 179.9 218.1 77.0 107.2 151.4 183.5 225.7 79.7 110.9... - Page 19 Memory channels: Up to 128 channels Frequency stability: 1.0ppm for UHF Band and 2.0ppm for VHF Band Frequency step: ...
- Page 20 16.TROUBLESHOOTING: Problem Possible cause / solution The radio does not start. The battery is low, replace the battery with a charged battery or proceed to the battery. The battery is not installed correctly, remove the battery and reattach it. The battery runs down quickly. The battery life has come to an end, replace the battery with a new one. The battery is fully charged, make sure the battery is made in full. The receiving indicator LED lights but do not hear Make sure the volume setting is too low. the speaker. ...
-
Page 21: Warranty Certificate
17.WARRANTY: (Better buy the radios from local dealer). WARRANTY CERTIFICATE Brand: Model no.: Serial no.: Name of purchaser: Address: City: Zip code: Province/State: Tel no.: Seal and name of the dealer: Date of purchase: WARNING: Warranty is valid provided it is complete and properly filled in legibly and clearly present the seal and name of the dealer and have attached the bill proof of purchase of equipment. The device described in this Certificate is guaranteed for a period of TWO YEARS from the date of sale to the final user.This Warranty Certificate is unique and not transferable and may not be reissued for new or original or copy. Substitution of product failure or any part thereof shall not involve extension of the guarantee. The warranty covers the replacement and free replacement of all parts that are defective in materials and components used in manufacturing and / or assembly of the apparatus. The warranty does not cover any faults caused by accident, improper installation and use, electric shock (eg storms), connect a power other than that specified, reverse polarity in the diet, or claims due to deterioration in the external appearance of normal use, nor the amount or condition of the accessories. Checking the accessories is the responsibility of the purchaser at the time of purchasing the device. The warranty does not cover rechargeable batteries even if they are part of the equipment purchased as they are considered consumables, the impairment must be reported within a period of fifteen days from the date of purchase. The warranty is void on the following assumptions: 1. ‐ Devices that have been manipulated by another or by anyone other than authorized service provider. 2. ‐ Equipment and accessories in which the serial number has been altered, deleted or filed unreadable. 3. ‐ Use of the product than as intended. ... -
Page 22: Safety Training Information
SAFETY TRAINING INFORMATION Your BAOFENG radio generates RF electromagnetic en-ergy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, Warning and the ways to minimize such hazards. - Page 23 RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your BAOFENG radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
