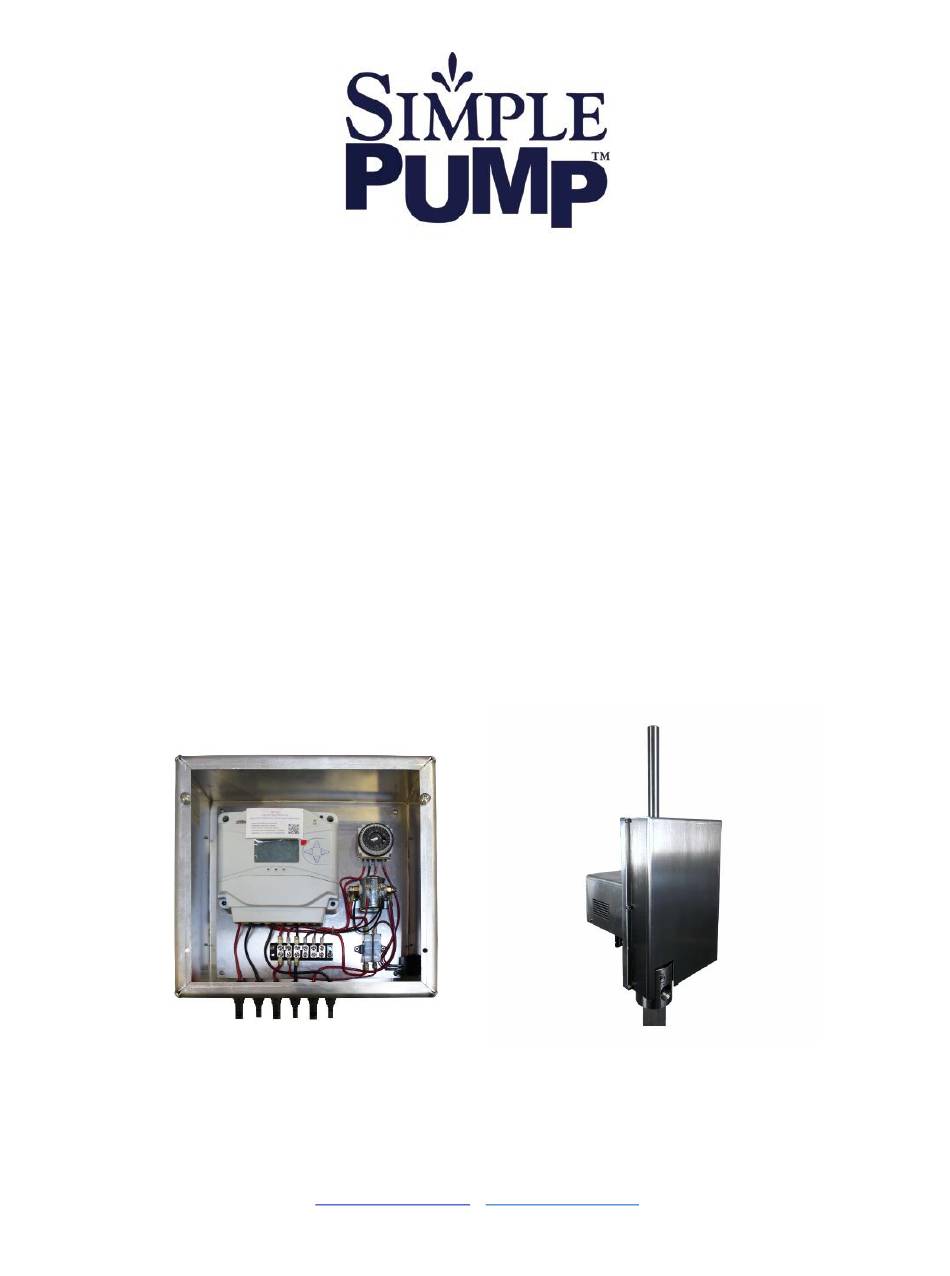

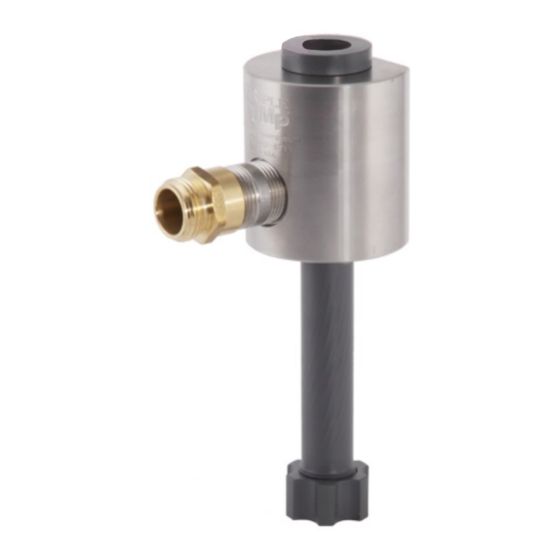

INSTALLATION INSTRUCTIONS FOR THE SIMPLE PUMP
SOLAR-POWERED MOTORIZED PACKAGE
(SOLAR MOTOR OPTION)
LAST UPDATED: June 22, 2022
(The following instructions are very detailed, and should tell you everything you
need to know. If you have questions, please phone 877-492-8711, ext. 6)
SIMPLE PUMP COMPANY
2516 Business Parkway, Unit B / Minden, NV 89423
Phone: 877-492-8711 (toll free)
Mon-Fri: 8am-5pm PST (GMT/UTC -8hours)
Fax: 888.826.1444 (toll-free)
info@simplepump.com
•
www.simplepump.com
page 1
© Simple Pump Company
Advertisement
Table of Contents
Related Manuals for Simple Pump 100
Summary of Contents for Simple Pump 100
- Page 1 INSTALLATION INSTRUCTIONS FOR THE SIMPLE PUMP SOLAR-POWERED MOTORIZED PACKAGE (SOLAR MOTOR OPTION) LAST UPDATED: June 22, 2022 (The following instructions are very detailed, and should tell you everything you need to know. If you have questions, please phone 877-492-8711, ext. 6)
-
Page 2: Table Of Contents
Linear Bearing Link Drive (LBLDWR) is designed for use with the Simple Pump model 100, 125, and 200 hand pumps. When installed on the Model 100, it delivers up to 1.0 GPM from a totally dynamic head (TDH) of 225 feet. See detailed limits below. When installed on the Model 125, the gear motor is capable of delivering up to 2.0 gallons of water per minute (GPM) from a total dynamic head (TDH) of... -
Page 3: Specifications
If the temperature at the planned site regularly peaks above 100˚F, we recommend operation of the motor in shade. The component box needs to be mounted near the batteries and out of the sun in a protected environment as it contains electrical equipment. - Page 4 (i.e. non-pressurized) storage tank along with a small DC powered transfer pump will allow you to pump the water into your pressure tank. The Simple Pump would be used to bring water to the surface and fill the ambient tank. The transfer pump would pump the water from the ambient storage tank into the pressurized system.
- Page 5 The switch turns the transfer pump on and off, according to a target pressure. If you are able to use the Simple Pump to pump into pressure, we STRONGLY suggest that you wire in a pressure switch to control the ON/OFF state of the system (See Section 10 for details). If the pump is not controlled in this way and is left on, it could exceed the allowed pressure and potentially damage both the pressure tank and/or the Simple Pump gear motor.
-
Page 6: Section 1: Unpacking And Tools Required
(1) 3/4” x 13" stainless steel pump rod extension (4) 1/4-20 x 3/4" SS SHCS fasteners for mounting the LBLD to the pump head (4) 15A (24V) ATO/ATC prong style fuses (spares) (1) MM/F MC4 Branch Connector (1) FF/M MC4 Branch Connector page 6 © Simple Pump Company... -
Page 7: Section 2: Power Source And Control Box Installation And Storage
At this point the negative terminal on the first battery and the positive terminal on the second battery are not being used, we will connect them to the control box later. page 7 © Simple Pump Company... -
Page 8: Section 3: Solar Panels And Mount
The modules are grounded in the J-box by means of a green bonding wire that attaches to the aluminum frame, which is then bolted to the aluminum bracket, that is bolted to the steel pipe, which is sunk in page 8 © Simple Pump Company... -
Page 9: Section 4: Lbld Assembly Preparation
You should confirm that your pump is delivering at least one gallon of water with approximately 25 strokes with the lever handle system (model 100). If you have the model 125, your pump should be delivering about one gallon of water in approximately 15 complete strokes. If you have the model 200, your pump should be delivering about one gallon of water in approximately 6 strokes. - Page 10 Hand Pump, half of the Riser Tube must be below the well cap. This means that when using the PHA2 only 12” of Riser Tube can be showing above the well cap, when using the PHA47, only 24” can be showing. page 10 © Simple Pump Company...
-
Page 11: Section 6: Installation
There is a 1/4" of space between the bearing housing and the top of the rod gland when the holes are fully aligned. The rod gland is the topmost exposed component on the pump head. page 11 © Simple Pump Company... - Page 12 It may be necessary to wiggle the clevis in order to move the rod upward. With deeper static water levels, it could take a fair amount of force to lift the rod. page 12 © Simple Pump Company...
- Page 13 This pinches the clevis to the stainless rod. These need to be very tight. You will notice when you tighten one and move to the other it will appear loose. Keep tightening in sequence until both are tight. page 13 © Simple Pump Company...
-
Page 14: Section 7: Alignment
You can now put the four (4) 8-32x1/2 SS cap screws back into the top linear bearing. At this point just make these screws finger tight. We will do final alignment adjustments in Section 7 below. page 14 © Simple Pump Company... -
Page 15: Section 8: Electrical Connections
MC4 connector on the control box. The black (PV-) cable needs to be plugged into the second from the left most MC4 connector on the control box. See image below. The control box is marked with PV+ and PV- just in front of the connector for more guidance. page 15 © Simple Pump Company... - Page 16 MC4 connector. The black (BAT-) cable needs to be plugged into the fourth from the left MC4 connector. See image below. The control box is marked with BAT+ and BAT- just in front of the connector for more guidance. page 16 © Simple Pump Company...
- Page 17 The LOAD- connector on the control box is on the far right. See image below. The control box is marked with LOAD+ and LOAD- just in front of the connector for more guidance. The LBLD should now be fully powered!!! page 17 © Simple Pump Company...
-
Page 18: Section 9: Operation
If you have verified and it continues to get really hot, please contact our technical support. 2. Tighten the remaining loose screws on both the top and bottom linear bearings, there should be four (4) left to tighten. page 18 © Simple Pump Company... - Page 19 Start the system again and begin the 6-hour break-in period. During the break-in period, leave the pump outlet open or pump through a drinking-water quality garden hose unrestricted. page 19 © Simple Pump Company...
-
Page 20: Section 10: Installing A Float Or Pressure Switch
A general rule of thumb can be found below. 1’ – 10’ 16 gauge 11’-25’ 14 gauge 26’-75’ 12 gauge > 75’ Utilize Voltage Drop Calculator found online page 20 © Simple Pump Company... -
Page 21: Section 11: Trouble-Shooting
If the system continues to blow fuses after verifying the alignment, remove the motor mechanism and stroke the pump rod by hand. It should require about 40 lbs. of lifting effort for each 100 feet of static water level depth. If the effort is any more than this, something is binding in the pump system and it is not an issue with the drive system. -
Page 22: Section 12: Maintenance
Note that all of these are those that must be replaced on any Simple Pump system, no matter what configuration -- driven by hand, or motor. If the flow rate of your pump starts to fall, replacing the seals may well be the solution.
