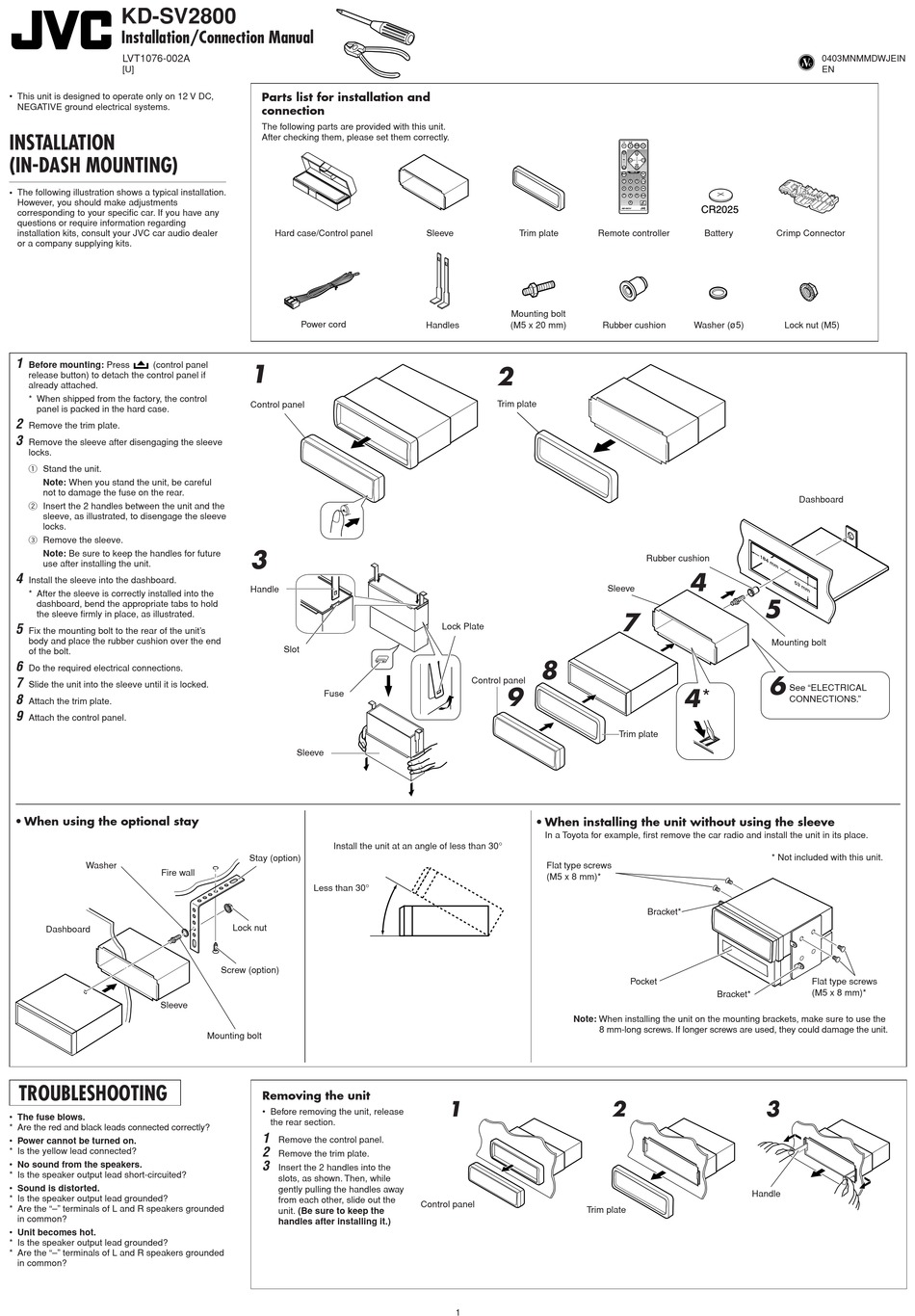

JVC KD-SV2800 Installation & Connection Manual

KD-SV2800
Installation/Connection Manual
LVT1076-002A
[U]
• This unit is designed to operate only on 12 V DC,
NEGATIVE ground electrical systems.
INSTALLATION
(IN-DASH MOUNTING)
• The following illustration shows a typical installation.
However, you should make adjustments
corresponding to your specific car. If you have any
questions or require information regarding
installation kits, consult your JVC car audio dealer
or a company supplying kits.
1
Before mounting: Press (control panel
release button) to detach the control panel if
already attached.
* When shipped from the factory, the control
panel is packed in the hard case.
2
Remove the trim plate.
3
Remove the sleeve after disengaging the sleeve
locks.
1 Stand the unit.
Note: When you stand the unit, be careful
not to damage the fuse on the rear.
2 Insert the 2 handles between the unit and the
sleeve, as illustrated, to disengage the sleeve
locks.
3 Remove the sleeve.
Note: Be sure to keep the handles for future
use after installing the unit.
4
Install the sleeve into the dashboard.
* After the sleeve is correctly installed into the
dashboard, bend the appropriate tabs to hold
the sleeve firmly in place, as illustrated.
5
Fix the mounting bolt to the rear of the unit's
body and place the rubber cushion over the end
of the bolt.
6
Do the required electrical connections.
7
Slide the unit into the sleeve until it is locked.
8
Attach the trim plate.
9
Attach the control panel.
• When using the optional stay
Washer
Fire wall
Dashboard
Sleeve

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded
in common?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded
in common?
Parts list for installation and
connection
The following parts are provided with this unit.
After checking them, please set them correctly.
Hard case/Control panel
Power cord
1
Control panel
3
Handle
Slot
Fuse
Sleeve
Install the unit at an angle of less than 30°
Stay (option)
Less than 30°
Lock nut
Screw (option)
Mounting bolt

Removing the unit

• Before removing the unit, release
the rear section.
1
Remove the control panel.
2
Remove the trim plate.
3
Insert the 2 handles into the
slots, as shown. Then, while
gently pulling the handles away
from each other, slide out the
unit. (Be sure to keep the
handles after installing it.)
Sleeve Trim plate
Mounting bolt
Handles (M5 x 20 mm)
2
Trim plate
Lock Plate
8
Control panel
9
• When installing the unit without using the sleeve
In a Toyota for example, first remove the car radio and install the unit in its place.
Flat type screws
(M5 x 8 mm)*
Note: When installing the unit on the mounting brackets, make sure to use the
1
Control panel
Trim plate
1
CD FM/AM EQ
ATT
UP
VOL
DOWN
VIDEO CD
ENTER PBC
RETURN
1 2 3
4 5 6
OSD
7 8 9 AUDIO
0
Remote controller Battery
Rubber cushion Washer (ø5)
Rubber cushion 1 8
4
m
4
Sleeve
5
7
6
4
*
Trim plate
Bracket*
Pocket
Bracket*
8 mm-long screws. If longer screws are used, they could damage the unit.
2 3
Handle
0403MNMMDWJEIN
V
J C
EN
Crimp Connector
Lock nut (M5)
Dashboard
m
5 3
m
m
Mounting bolt
See "ELECTRICAL
CONNECTIONS."
* Not included with this unit.
Flat type screws
(M5 x 8 mm)*
