Summary of Contents for JVC KD-SV3105UH

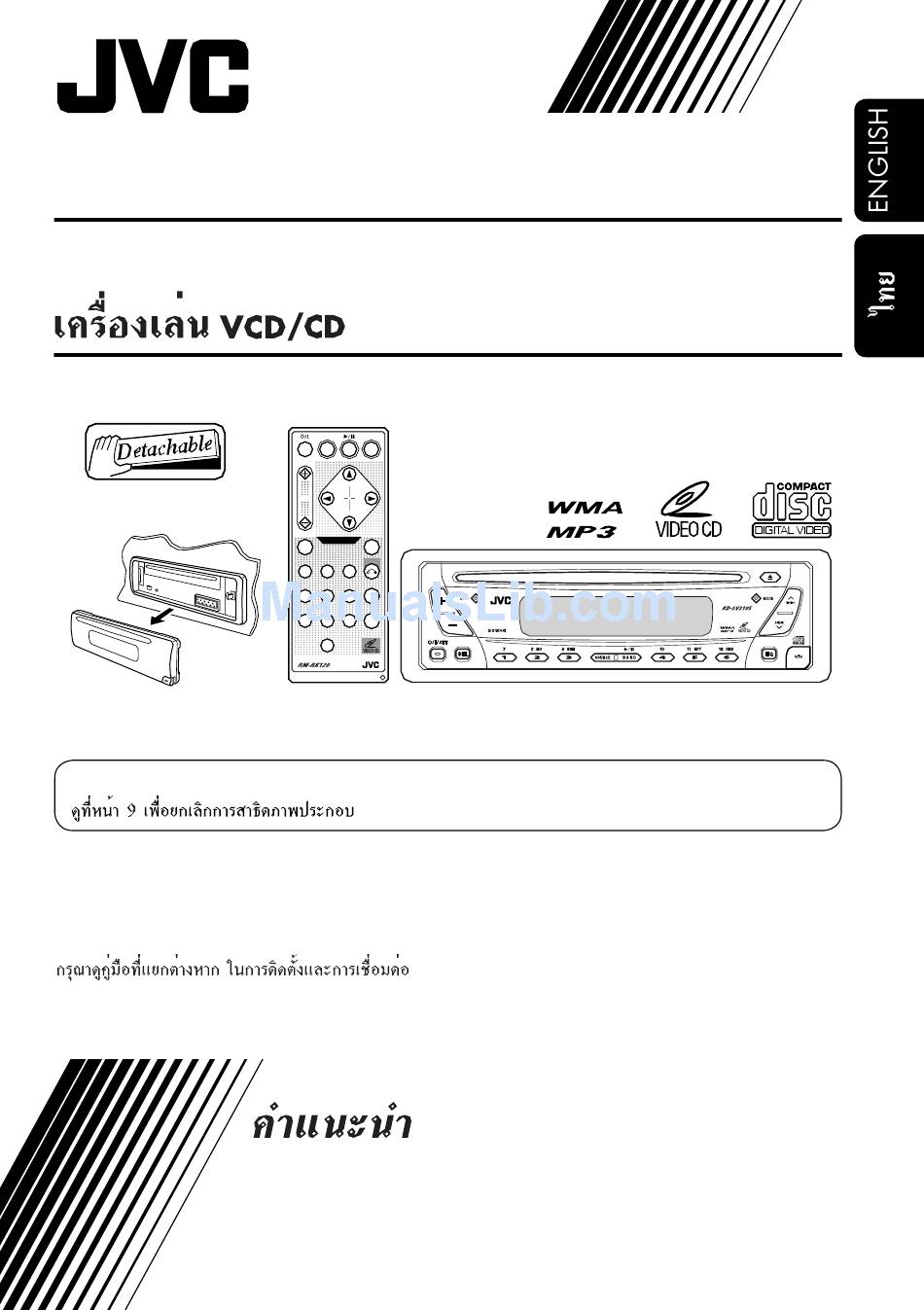

- Page 1 VCD/CD RECEIVER For canceling the display demonstration, see page 9. For installation and connections, refer to the separate manual. INSTRUCTIONS SOURCE BAND VOL. DOWN VIDEO CD ENTER RETURN AUDIO KD-SV3105 KD-SV3105 GET0262-001A [U/UH]...
-
Page 2: How To Reset Your Unit
(refer to the Installation/ Connection Manual). Thank you for purchasing a JVC product. How to reset your unit This will reset the microcomputer. Your preset adjustments will also be erased. -
Page 3: Table Of Contents
Contents How to reset your unit ... How to forcibly eject a disc ... How to read this manual ... How to use the MODE button ... Control panel — KD-SV3105 Parts identification ... Remote controller — RM-RK120 Main elements and features ... Getting started ... -
Page 4: How To Read This Manual
How to read this manual The following methods are used to make the explanations simple and easy-to-understand: • Some related tips and notes are explained in “More about this unit” (see pages 28 and 29). • Button operations are mainly explained with the illustrations as follows: Press briefly. -

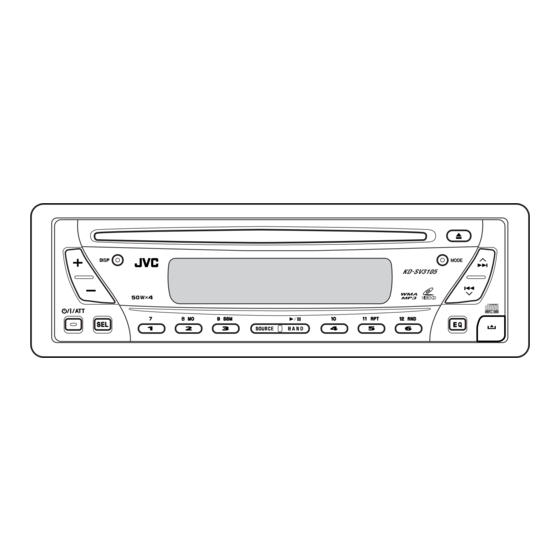

Page 5: Control Panel
Control panel — Display window 1 +/– buttons 2 DISP (display) button 3 Remote sensor 4 Loading slot 5 Display window 6 MODE button 7 0 (eject) button ¢/4 buttons (standby/on/attenuator) button p SEL (select) button q MO (monaural) button w SSM (Strong-station Sequential Memory) button e SOURCE button... -
Page 6: Remote Controller
Remote controller — Installing the lithium coin battery (CR2025) • Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between. Remote sensor • DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting). -
Page 7: Main Elements And Features
Main elements and features SOURCE BAND VOL. DOWN VIDEO CD ENTER RETURN AUDIO 1 SOURCE button • Selects the playback source. (standby/on attenuator) button • Turns on and off the power and also attenuates the sound. 3 2 REV / FWD 3 buttons •... -
Page 8: Getting Started
Getting started Ÿ You cannot select some sources if they are not ready. For FM/AM tuner ⁄ Adjust the volume. Volume level appears. Volume level indicator Basic operations Adjust the sound as you want. (See pages 21 and 22.) To drop the volume in a moment (ATT) To turn off the power Caution on volume setting: Discs produce very little noise compared... -
Page 9: Canceling The Display Demonstrations
Canceling the display demonstrations If no operations are done for about 20 seconds, display demonstration starts. [Initial: DEMO ON]—see page 24. Finish the procedure. To activate the display demonstration In step 3 above... Setting the clock Set the hour and minute. 1 Select “CLOCK H”... -
Page 10: Radio Operations
Radio operations Ÿ Lights up when receiving an FM stereo broadcast with sufficient signal strength. Start searching for a station. When a station is received, searching stops. To stop searching, press the same button again. Listening to the radio To tune in to a station manually In step ! on the left... -
Page 11: Storing Stations In Memory
When an FM stereo broadcast is hard to receive Lights up when monaural mode is activated. Reception improves, but stereo effect will be lost. To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off. Storing stations in memory You can preset six stations for each band. -
Page 12: Listening To A Preset Station
Manual presetting Ex.: Storing FM station of 92.5 MHz into the preset number 4 of the FM1 band. Preset number flashes for a while. Listening to a preset station Select the preset station (1 – 6) you want. To check the current clock time while listening to an FM or AM station... -
Page 13: Disc Operations
Disc operations The disc type is automatically detected, and playback starts automatically. All tracks will be played repeatedly until you change the source or eject the disc. • If a disc menu appears on the monitor while playing a VCD with PBC, see page 17. Before performing any operations, make sure the following... - Page 14 • When inserting an MP3 or a WMA disc: Total folder Total track number number Disc information appears automatically (see page 19). Selected folder number Clock Current track number • When inserting an audio CD or a CD Text disc: Total playing time of the inserted disc CD Text: Disc title/performer =...
-
Page 15: Playing A Disc In The Cd Changer
Playing a disc in the CD changer About the CD changer It is recommended to use the JVC MP3- compatible CD changer with your unit. • You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs. - Page 16 MP3 discs playback/search order in the CD changer Level 1 Level 2 Level 3 ROOT : Folder and their playback order : MP3 files and their playback order • When the current disc is an MP3 disc: Current disc number Selected folder number Folder name Disc information appears...
-
Page 17: Playback Control (Pbc) Operations
To go to the next or previous folders (only for MP3 or WMA discs) For MP3 discs: For WMA discs: To next folders. To previous folders. To locate a particular track (for audio CD, CD Text, or VCD with PBC set to “PBC OFF”) or folder (for MP3 or WMA discs) directly To select a number from 01 –... -
Page 18: On-Screen (Osd) Information
On-Screen (OSD) information This operation is only possible when using the remote controller. You can check the track number and elapsed playing time if the monitor is turned on. While playing a disc... • To turn off the On-Screen Display, press the button again. -
Page 19: Changing The Display Information
To select a folder DOWN To select a track • Pressing these buttons repeatedly can also select tracks from the previous/ next folders. • See also page 16 for using the buttons on the control panel to select a folder or track. Changing the display information While playing an audio CD, a CD Text (... -
Page 20: Selecting The Playback Modes
You can use only one of the following playback modes at a time. • For VCD: While PBC (see page 17) is not in use. Select your desired playback mode. Repeat play Ex.: When “TRK RPT” is selected while playing an MP3 disc Random play Ex.: When “DISC RND”... -
Page 21: Sound Adjustments
Sound adjustments Selecting preset sound modes You can select a preset sound mode suitable to the music genre. Ex.: When “ROCK” is selected Indication pattern for each sound mode: (C-EQ: custom equalizer) Preset values Indication For: BAS * USER (Flat sound) ROCK Rock or disco music... -
Page 22: Adjusting The Sound
Adjusting the sound You can adjust the sound characteristics to your preference. Ex.: When “TRE” is selected Indication pattern changes as you adjust the level. Indication To do: BAS* Adjust the bass. (bass) TRE* Adjust the treble. (treble) FAD* Adjust the front (fader) and rear speaker balance. -
Page 23: General Settings - Psm
General settings — PSM Basic procedure You can change PSM (Preferred Setting Mode) items listed in the table on page 24. Select a PSM item. Ex.: If “TAG DISP” is selected Adjust the PSM item selected. Ex.: If “TAG OFF” is selected Repeat steps to adjust the other PSM items if necessary. - Page 24 : Select this if your monitor is of the NTSC color system. • Press SEL to activate the selection before you select the other PSM items to adjust. CHANGER : [Initial]; To use a JVC CD changer, [15]. EXT IN : To use another external component, [26].
-
Page 25: Detaching The Control Panel
Detaching the control panel Attaching the control panel When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power. -
Page 26: External Component Operations
External component operations You can connect an external component to the LINE IN plugs on the rear, and another to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). • For connection, see Installation/Connection Manual (separate volume). -
Page 27: Maintenance
Maintenance How to clean the connectors Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors. Connector Moisture condensation Moisture may condense on the lens inside the VCD/CD player in the following cases: •... -
Page 28: More About This Unit
More about this unit Basic operations Turning on the power • By pressing SOURCE on the unit, you can also turn on the power. Turning off the power • If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power. -
Page 29: General Settings—Psm
• The On-Screen Display (OSD) will automatically canceled when you change the source or turn off the unit. Playing an MP3/WMA disc • While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds. • This unit can play back MP3/WMA files with the extension code <.mp3>... -
Page 30: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • The unit does not work at all. • SSM automatic presetting does not work. - Page 31 Symptoms • Track skips automatically and no sound can be heard. • No playback picture (VCD) appears on the monitor. • Disc cannot be played back. • Noise is generated. • A longer readout time is required (“CHECK” keeps flashing on the display). Causes •...
- Page 32 Symptoms • Elapsed playing time is not correct. • “NO FILES” appears on the display. • Correct characters are not displayed (e.g. album name). • “NO DISC” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display.
-
Page 33: Specifications
Specifications AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. - Page 34 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit EN, TH © 2005 Victor Company of Japan, Limited 0405DTSMDTJEIN...
-
Page 35: Installation (In-Dash Mounting)
INSTALLATION (IN-DASH MOUNTING) The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits. • If you are not sure how to install this unit correctly, have it installed by a qualified technician. -
Page 36: Electrical Connections
• Be sure to ground this unit to the car’s chassis again after installation. Notes: • Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer. • It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω... -
Page 37: Typical Connections
ENGLISH °“√‡™◊ Ë Õ ¡µË Õ ·∫∫ª°µ Typical Connections / Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color. - Page 38 Signal cord (not supplied for this unit) “¬‡§‡∫‘ ≈ — ≠ ≠“≥ (‰¡Ë ‰ ¥È „ ÀÈ ¡ “°— ∫ ™ÿ ¥ ª√–°Õ∫π’ È ) Connecting the external components / JVC CD changer / ‡§√◊ Ë Õ ß‡≈Ë π ´’ ¥ ’ CD JVC •...
