Summary of Contents for Titan TTB804CHR

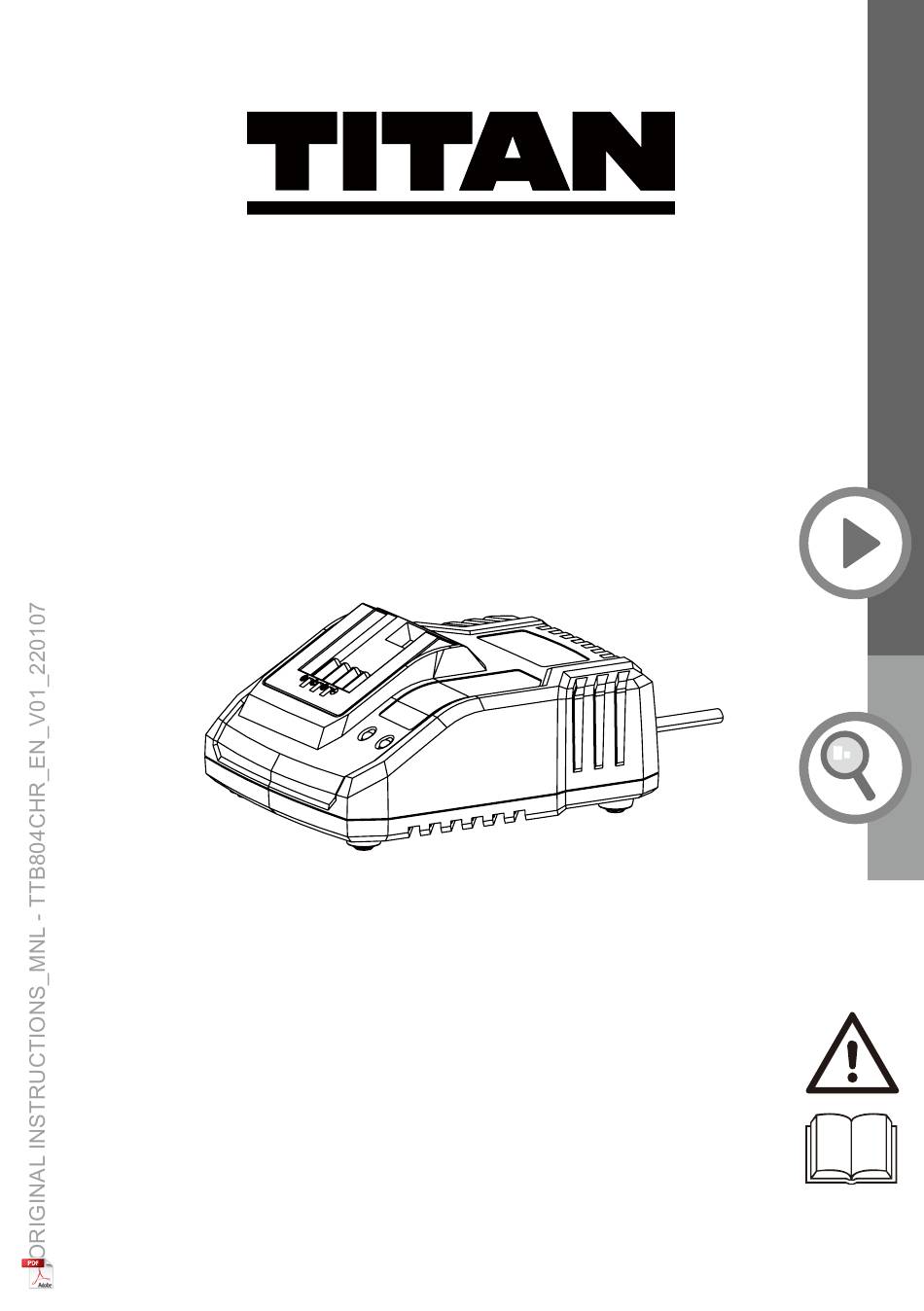

- Page 1 TTB804CHR WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
TTB804CHR Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Symbols Your product Before you start more detail... Intended use Maintenance Troubleshooting Recycling and disposal... -
Page 3: Getting Started
Safety information TTB804CHR Safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and... - Page 4 Safety information TTB804CHR When the charger is in use it MUST be supervised, if there is any evidence of overheating then IMMEDIATELY disconnect the charger from the power supply. If gas or smoke is emitted from the battery during charging switch off the power supply and move to a well ventilated area.
-
Page 5: Symbols
Symbols TTB804CHR Symbols Before charging, read the instructions Warning For indoor use only This is a product of class II. This means it is equipped with an insulation reinforced or double insulation. T 3.15A Time lag fuse with rated current of 3.15A WEEE symbol. -
Page 6: Your Product
Your product TTB804CHR Your product Charger 2. Power / charging status indicator lights... - Page 7 TTB804CHR > Rated input 220 - 240 V~, 50Hz, 60 W > Rated output 21.4V 2.4 A > Protection class > Weight : Approx. 0.5 kg For charging 18V Li-Ion battery pack as below: Battery pack models TTI800BAT TTI801BAT Rated capacity 1.5Ah...
-
Page 8: Before You Start
Before you start TTB804CHR Before you start Unpacking 2. Remove all packing materials and shipping devices if applicable. parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property. -
Page 9: In More Detail
TTB804CHR more detail... Intended use Maintenance Troubleshooting Recycling and disposal Guarantee Declarations of conformity... -
Page 10: Intended Use
Intended use TTB804CHR Intended use This charger is solely for the charging of batteries listed in the TECHNICAL SPECIFICATION section. Charging the battery pack WARNING! The charger and battery pack are specifically designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur. -
Page 11: Maintenance
Maintenance TTB804CHR 2)After charging has finished, disconnect the charger from power supply. To remove the battery pack from the charger, press the release button on the battery and pull the battery pack out of the charger (Fig.2). NOTE: It is normal for the battery pack and charger to become warm (but not hot) during the charging process. -
Page 12: Troubleshooting
Maintenance / Troubleshooting / Recycling and disposal TTB804CHR WARNING! Never connect live or neutral wires to the earth terminal of the plug which is marked with E. Only fit an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse. -
Page 13: Guarantee
Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( TITAN Charger) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. -
Page 14: Declarations Of Conformity
(UK) DECLARATION OF CONFORMITY Product • Product name – Charger • Product model - TTB804CHR • Type / batch or serial number range 00001 to 99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited... - Page 15 Declarations of conformity TTB804CHR Signed for and on behalf of: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom David Awe Group Quality Director On: 20/08/2021...
- Page 16 (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto • Charger/Chargeur/Ładowarka/Încărcător/Cargador/Carregador • TTB804CHR • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela: Denumirea și adresa producătorului sau a reprezentantului său autorizat:...
- Page 17 Declarations of conformity TTB804CHR 2014/30/EU as amended Directive Electromagnetic compatibility 2014/35/EU Directive Electrical Safety: Low-voltage electrical equipment 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique 2014/35/EU Directive Sécurité...
- Page 18 Manufacturer,Fabricant,Producent, Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E, 1011 VM, Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
