Summary of Contents for Audio Hungary Qualiton C200

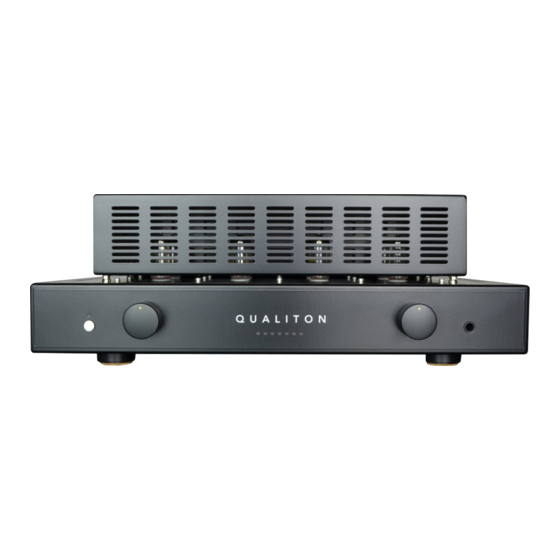

- Page 1 Qualiton C200 User’ s Manual...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........5 GOOD TO KNOW ..............31 MARKINGS ................9 REMOTE CONTROL ..............32 PREFACE .................. 10 INSERTING / REPLACING BATTERY .........33 BASIC INFORMATIONS ............11 REPLACEMENT OF FUSE .............34 ..12 WASTE MANAGEMENT ............35 TECHNICAL ASSISTANCE AND SERVICE INFORMATION GENERAL SPECIFICATIONS..........13 ELECTRICAL SPECIFICATIONS .......... -
Page 3: Important Safety Instructions
USER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT! 1. Read these instructions. 9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus 2. Keep these instructions. (including amplifiers) that produce heat. 3. - Page 4 QUALITON C200 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT! 12. Be careful with appliance cables! Do not lead 16. Use only with the cart, stand, tripod, bracket, or them across sharp surfaces, do not clam them table specified by the manufacturer, or sold with the together and do not leave them in a hanging apparatus.
- Page 5 USER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT! 19. Servicing is required when the apparatus has 23. Do not touch the appliance or its mains cable been damaged in any way, such as power supply with wet hands. cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus 24.
- Page 6 QUALITON C200 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT! 29. To completely disconnect this equipment from the AC mains, disconnect the power supply cord plug from the AC receptacle. 30. The mains plug of the power supply cord shall remain readily operable.
-
Page 7: Markings
USER’S MANUAL MARKINGS The exclamation point within an equilateral The product meets the relevant directives triangle is intended to alert the user to the and standards of the European Union. presence of important operating and maintenance instructions in the literature accompanying the Supplied with alternating current (AC). -
Page 8: Preface
QUALITON C200 PREFACE Before installing the Qualiton C200 preamplifier, please study this User’s Manual carefully! Operating your preamplifier in a manner it is designed for, ensures you an utmost musical experience and a reliable operation. If you have any questions on our products or services, please do not hesitate to contact us on our website www.audiohungary.com... -
Page 9: Basic Informations
USER’S MANUAL BASIC INFORMATIONS For your convenience, please fill out the following lines to facilitate any future technical assistance and repair service: Serial Number: _______________________________ Date of purchase: _______________________________ Dealer Name: _______________________________ Vacuum tubes used: _______________________________ _______________________________ _______________________________... -
Page 10: Technical Assistance And Service Information
QUALITON C200 TECHNICAL ASSISTANCE AND SERVICE INFORMATION If at any time you have any questions about your Qualiton product, do not hesitate to contact your local Qualiton dealer, who is at your disposal. If you or your dealer need more help, you can receive technical assistance at: Audio-Hungary Ltd. -
Page 11: General Specifications
USER’S MANUAL GENERAL SPECIFICATIONS 4 unbalanced line level inputs (LINE 1-4), Number of input ports 2 balanced line level inputs (BALANCED INPUTS 1-2), 1 PHONO level input (PHONO MM) 2 unbalanced line level outputs (LINE; SUB), Number of output ports 1 balanced line level output (BALANCED OUTPUTS), 1 headphone output per channel Tubes required... -
Page 12: Electrical Specifications
QUALITON C200 ELECTRICAL SPECIFICATIONS Nominal output level - Line Input sensitivity - Line 1 V, to nominal output level Input sensitivity - Phono 5,7 mV, to nominal output level Max. input signal - Line 10 V Max. input signal - Phono... - Page 13 USER’S MANUAL ELECTRICAL SPECIFICATIONS Frequency response - Line 4 Hz - 300 kHz, (-1 dB) Frequency response - Phono 20 Hz - 20 kHz, (-0.5 dB) Input impedance - Line 10 kOhm Input impedance - Phono 47 kOhm Signal-to-noise ratio - Line >...
-
Page 14: Front Panel
QUALITON C200 FRONT PANEL... - Page 15 USER’S MANUAL FRONT PANEL 1. STANDBY (RED) / ON (WHITE) switch 2. INPUT SELECTOR rotary switch allows selection of preamplifier channel used. From left to right: PHONO, LINE 1, 2, 3 and 4, BALANCED INPUTS 1 and 2 3. INPUT LEDs indicating the selected input port. From left to right: PHONO, LINE 1, 2, 3 and 4, BALANCED INPUTS 1 and 2 4.
-
Page 16: Rear Panel
QUALITON C200 REAR PANEL... - Page 17 USER’S MANUAL REAR PANEL 1. GND terminal accepts a ground wire from a 7. LINE OUTPUTS - Connections for an external turntable power amplifier 2. PHONO INPUT accepts signals from a moving 8. SUBWOOFER OUTPUT - Connection for an active magnet phono cartridge subwoffer 3.
-
Page 18: Contents Of Package
CONTENTS OF PACKAGE Once you have unpacked the entire contents of the package, you can now check that you have received all the accessories. - 1 pc Qualiton C200 - 1 pc Remote Control - 1 pc User’s Manual - 8 pcs... -
Page 19: Placement
USER’S MANUAL PLACEMENT • Please read the following carefully to select a • The aforesaid applies to the very first installation of correct location for your amplifier. the amplifier as well. Prior to the first installation, leave the amplifier at its place of operation at least •... -
Page 20: Installation Of Vacuum Tubes
QUALITON C200 INSTALLATION OF VACUUM TUBES 1. You have to remove the protective cover to prepare for the insertion of the electron tubes. The protective cover locks in place with relatively high resistance, be careful not to scratch the device while removing it. - Page 21 USER’S MANUAL INSTALLATION OF VACUUM TUBES 12AX7 / ECC83 12AX7 / ECC83 12AX7 / ECC83 12AX7 / ECC83...
- Page 22 QUALITON C200 INSTALLATION OF VACUUM TUBES 12AX7 / ECC83...
-
Page 23: Using Third Party Vacuum Tubes
USER’S MANUAL USING THIRD PARTY VACUUM TUBES • Audio-Hungary Ltd. does not recommend the use of any other electron tubes in the C200 preamplifier other than those supplied with the device. • Audio-Hungary Ltd. cannot and does not warrant against, and shall have no liability of any kind for any defects resulting from the use of vacuum tubes from third parties and such defects will void the warranty. -
Page 24: Block Diagram
QUALITON C200 BLOCK DIAGRAM... -
Page 25: Connection Diagram
USER’S MANUAL CONNECTION DIAGRAM TURNTABLE (MM) MAGNETOFON CD PLAYER RADIO MEDIA SERVER MONO MONO STEREO ACTIVE SUB BASS (OPTIONAL) (OPTIONAL) (OPTIONAL) (OPTIONAL) (OPTIONAL) AMPLIFIER AMPLIFIER AMPLIFIER (OPTIONAL) (RIGHT) (LEFT) -
Page 26: Connection Diagram - Stereo Mode
QUALITON C200 CONNECTION DIAGRAM - STEREO MODE P200 POWER AMPLIFIER UNBALANCED CONNECTION BALANCED CONNECTION... -
Page 27: Connection Diagram - Monoblock Mode
USER’S MANUAL CONNECTION DIAGRAM - MONOBLOCK MODE P200 POWER AMPLIFIER - RIGHT CHANNEL P200 POWER AMPLIFIER - LEFT CHANNEL... -
Page 28: Ac Mains Connection
QUALITON C200 AC MAINS CONNECTION • The Qualiton C200 is factory configured for one of WARNING! Do not connect any external source to the following AC Mains Voltages: the appliance until you have connected it to a mains socket outlet with a protective earthing connection. -
Page 29: Good To Know
USER’S MANUAL GOOD TO KNOW • After pressing the STANDBY / ON button, a circuit provides 1 minute of wake-up / warm-up time for the tubes. After this time, the outputs of your C200 will become active and ready for use. •... -
Page 30: Remote Control
QUALITON C200 REMOTE CONTROL 1. POWER ON / STANDBY POWER 2. VOLUME UP VOLUME 3. VOLUME DOWN MUTE 4. MUTE... -
Page 31: Inserting / Replacing Battery
USER’S MANUAL INSERTING / REPLACING BATTERY PLEASE NOTE: C200’s remote control comes without battery. The remote control operates with type A23 battery. Battery should be installed by the user before first use: 1. Unscrew the screws on the back (a., b., c.) with the torx wrench, included in the package, then remove the cover. -
Page 32: Replacement Of Fuse
QUALITON C200 REPLACEMENT OF FUSE The IEC power inlet features a built‑in fuse holder. The specification of replacement fuses are: 1 A for 230 V AC mains and 2 A for 115 V AC mains. 1. Open the fuse holder with a screwdriver. -
Page 33: Waste Management
USER’S MANUAL WASTE MANAGEMENT • The appliance and its packaging are made of recyclable materials. • The appliance contains repairable or recyclable components and materials. Waste separation makes their recycling possible. • A faulty appliance or an appliance meant to be discarded has to be sent or brought to an adequate waste collection place or to our company site. - Page 34 Audio-Hungary Ltd. Hungary 132 Derkovits Street 4400 Nyíregyháza WWW.AUDIOHUNGARY.COM...
