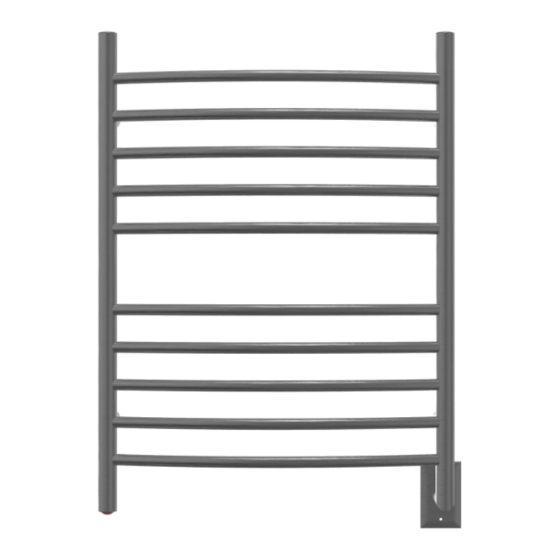

Amba RWH-C Installation Instructions

RADIANT CURVED
INSTALLATION INSTRUCTIONS

WARNINGS

- These units should be installed by a certified electrician in accordance with the National Electrical Code (NEC) and the Canadian Electrical Code (CEC).
- The unit requires a 120 volt, 60Hz power source and should be installed on a GFCI protected circuit.
- Plug-in units should be connected to a grounded outlet with a minimum rating of 10 amps.
- Follow installation instructions to ensure unit is securely fixed to wall. Unit is designed for drying towels. Under no circumstances should anybody climb on or hang on unit.
- Unit is intended for indoor use only. Do not place units inside a shower, sauna, steam room, or wherever unit would be exposed to water.

CAUTION

- As this is a heating device, the surface temperature can increase depending on the ambient temperature in the room and the number of towels applied to the unit.
- Overloading the unit will cause the unit to become extremely hot and may result in a burn if touched and/or damage to towels.
- The fasteners provided with the installation kit are for convenience only and are not suitable for all installation conditions.
- It is the ultimate responsibility of the installer to ensure suitable mounting hardware is used.

OPERATING INSTRUCTION

- After installation, connect the electric power.
- Remove the protective cover from the switch and turn it to the on position.
- The indicator light will glow red and the towel warmer will start to heat — Allow 10-20 minutes to heat up.
- This towel warmer has been designed to run continuously — Turn off the switch or unplug the cord when the towel warmer is not in use for long periods of time.
- Never use an extension cord for Plug-in models.
CARE & MAINTENANCE
- Towels which contain soap or detergent residue may appear to have scorch marks; this is simply discoloration of the residue in the towels themselves.
- The unit is constructed from extremely durable 304 stainless steel. To maintain a good appearance, follow these simple instructions:
- For routine cleaning, simply switch off the unit, allow to cool to room temperature, wipe with a damp cloth and buff with a soft, dry cloth.
- Under no circumstances should abrasive cleaners be used to clean the unit.

INCLUDED COMPONENTS

A
4x 4x
F
4x 4x
M6x10

PLUG-IN MODELS

REQUIRES
GROUNDED
OUTLET
Please read the following information before installing and using your Heated Towel Rack.
B C
4x 4x
ST4.2*40
G H
1x 2x
#6-32 x 3/4 -in

INTEGRATED SWITCH

SWITCH
COVER
- The Radiant Collection features an
Integrated on/off switch.
- Remove plastic cover after installation.
- Switch is located on the bottom of the
left vertical bar.
- Press switch to power on unit.
- Switch will illuminate when on.
! CAUTION — SURFACE OF UNIT IS HOT WHEN ON !
D
E
4x
M8x65
I
SWITCH

TOOLS REQUIRED

ELECTRICAL INFO

150 1.3 120
watts amps volts

AVAILABLE MODELS

RWH-CP
RWP-CP
WH - wall mounted & hardwired
WP - wall mounted & plug-in
P-Polished
CONTACT
TEL:
404 3509738
FAX:
404 3550166
EMAIL:
customerservice@ambaproducts.com
WEB:
www.ambaproducts.com

WARRANTY

Two year limited warranty
with proof of purchase will
apply if all Terms and
Conditions of Sale are met
and Installation Instructions
are adhered to.
FOR FULL WARRANTY VISIT:
www.ambaproducts.com/warranty
RWH-CB
RWP-CB
B-Brushed
