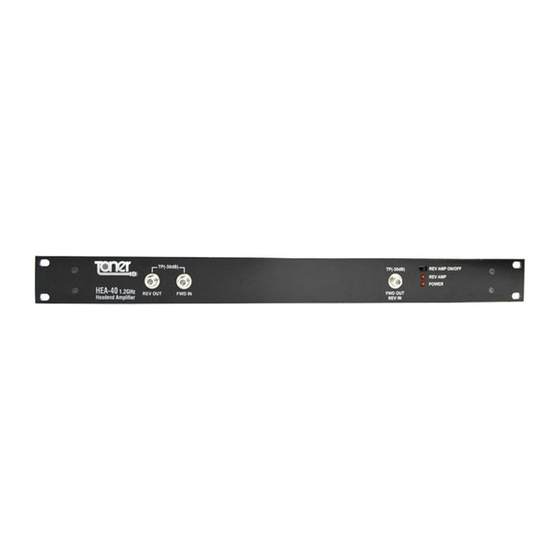

HEA-40-D31
1.2 GHz Headend Amplifier
Model
Bandwidth
5-42 MHz / 54-1218 MHz
HEA-40-D31-42
5-85 MHz / 105-1218 MHz
HEA-40-D31-85
FEATURES
• 1.2 GHz forward bandwidth,
• GaAs/GaN Power Doubler Hybrid for high output levels with low distortions,
• Active Push Pull reverse path with seperate output, field selectable active/passive operation,
•Rack Mount - 1 EIA (1.75") spacing, rugged aluminum chassis
•Surge protection at all ports,
• UL and CE listed power transformers.

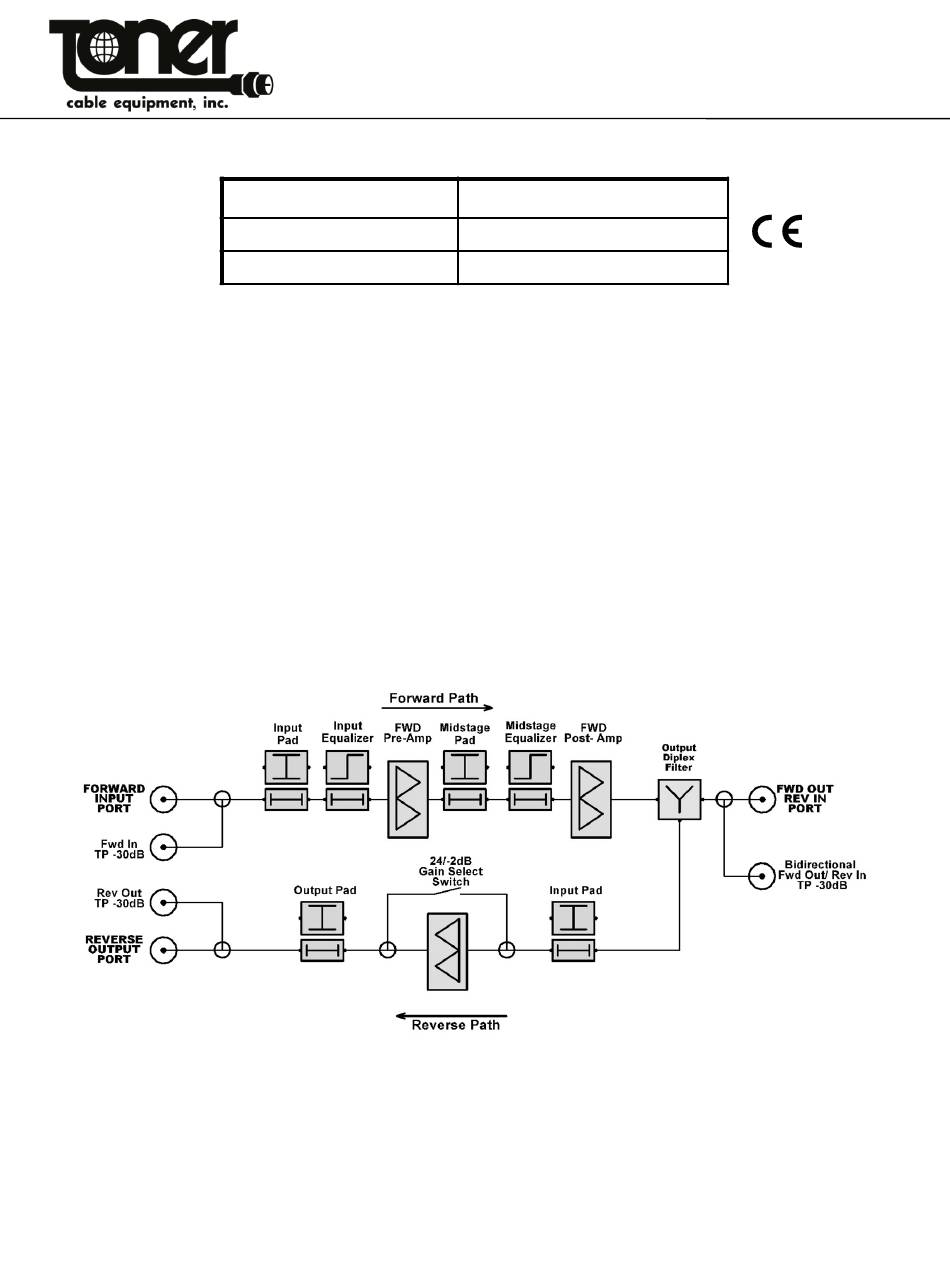

Figure 1 – Block Diagram
HEA-40-D31 1.2 GHz_V1
1
Advertisement
Related Manuals for Toner HEA-40-D31
Summary of Contents for Toner HEA-40-D31
- Page 1 • Active Push Pull reverse path with seperate output, field selectable active/passive operation, •Rack Mount - 1 EIA (1.75”) spacing, rugged aluminum chassis •Surge protection at all ports, • UL and CE listed power transformers. Figure 1 – Block Diagram HEA-40-D31 1.2 GHz_V1...
- Page 2 10. Now adjust the mid-stage forward slope and attenuator controls to achieve as close as possible to the desired output signal level and slope. 11. Reverse gain can be set as 24dB or -2dB from the jumper settings reachable behind the front panel window. Rear Panel HEA-40-D31 1.2 GHz_V1...
- Page 3 / kg Dimensions (L x W x H) 19 x 9 x 1.75 inch 1. Universal 1’’ JXP style pads. 0dB jumper pads are factory default. 2. Universal 1’’ JXP plug-in equalizer. 0dB jumper pads are factory default. HEA-40-D31 1.2 GHz_V1...
