Toner TIBA Series Instruction Manual

TIBA Series (1 GHz)
Instruction Manual
www.tonercable.com

TIBA Series CATV Distribution Amplifiers

Model Bandwidth
5-42 MHz / 54-1000 MHz
TIBA-30-1000/42
The Toner two way apartment house type amplifiers with active return are broadband indoor GaAs Hybrid,
high output level distribution amplifiers designed for 1 GHz RF distribution systems such as those in Cable
Television Apartments, Hotels, Hospitals and other applications where a high quality low noise figure
amplifier is necessary to amplify the signals in both the forward and return paths.
These are all designed with flat operational gain of 3 dB in the forward bandwidth and 24 dB in the 5-42MHz 0
0
reverse bandwidth. TIBA-3 -1000 has sockets for plug-in controls of forward input stage gain, balancing and
return gain at output stages. Forward path has also interstage variable gain and equalizer controls.
The amplifiers are powered by a plug in wall type 24 V DC power transformer that is available in either 90-
240VAC universal applications.

FEATURES

1 GHz forward bandwidth,
• GaAs Power Doubler Hybrid for high output levels with low distortions,
• Active Push Pull reverse,
• Gain and equalization controls,
• Aluminum chassis designed for excellent heat dissipation,
•Surge protection at all ports,
• UL and CE listed power transformers.

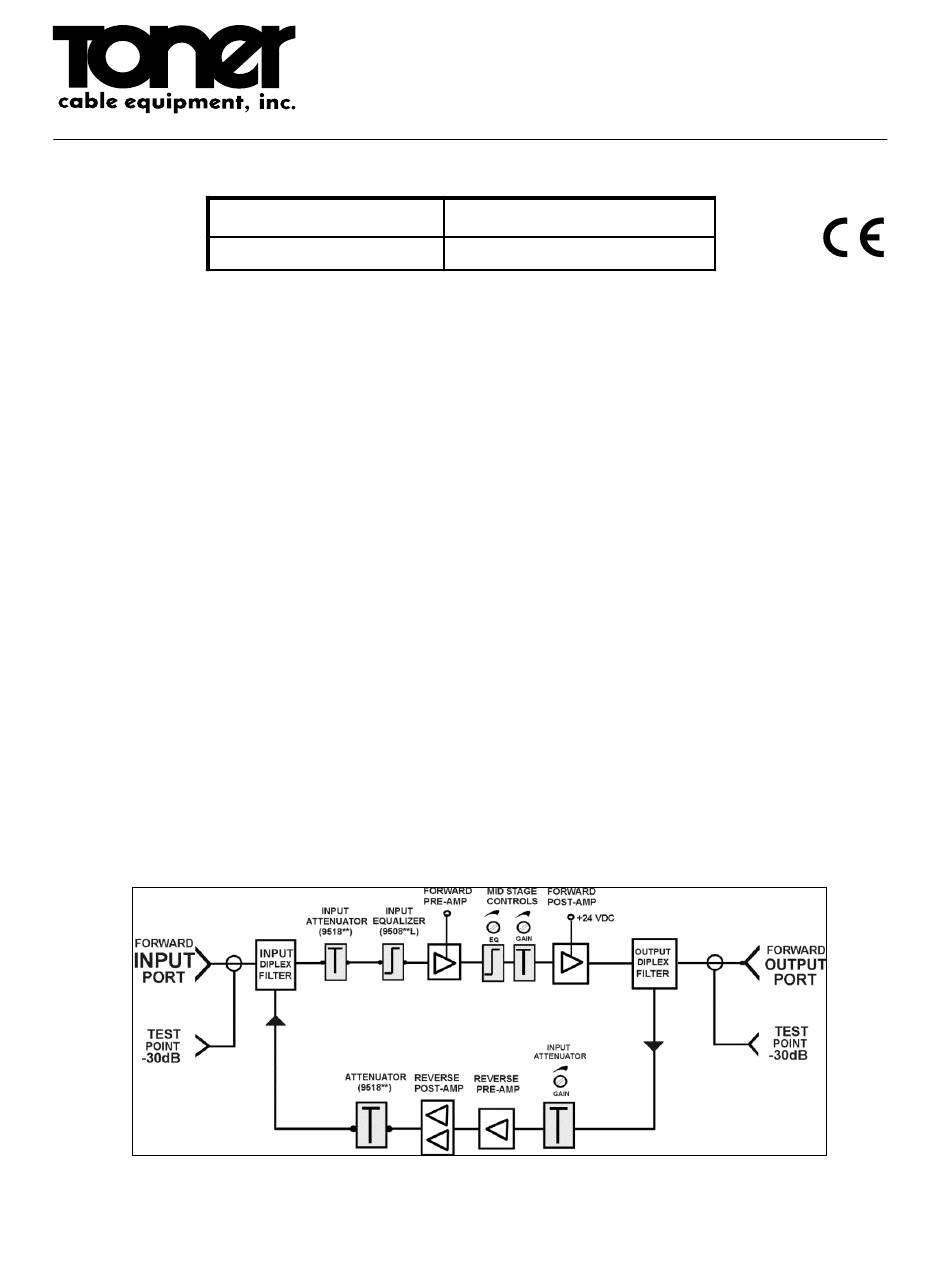

Figure 1 – Block Diagram
1
