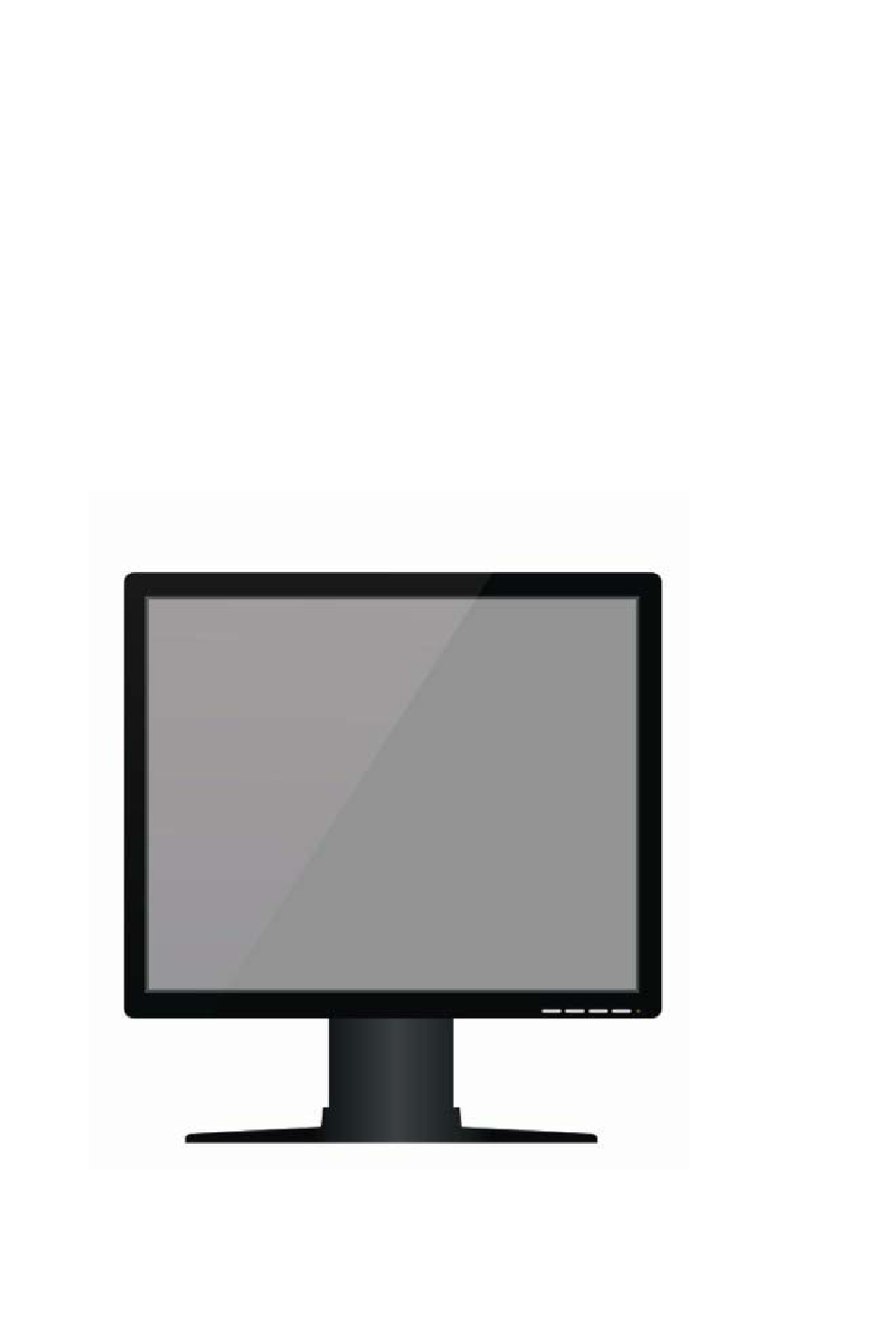

- Page 1 User Manual LCD Monitor Model: C16S SERIAL Rev.: A0...
-
Page 2: Table Of Contents
Contents 1. Application................. 1 2. Declarations................1 3. Installation................6 4. Start-up..................6 4.1 Connecting the power and signal cables ..........7 4.1.1 Little cover (removing)............7 4.1.2 Cable (attaching)..............8 4.1.3 Stand base (attaching)............9 4.1.4 Mounting Use..............10 4.2 Switching on the display.............. -
Page 3: Application
1. Application This high-resolution color display with touch screen use is specifically designed to meet the rigorous performance standards needed for diagnostic, interventional radiology, and other medical applications. To guarantee image integrity, features include accurate signal conversion and a wide range of interfacing options. Compact design -Low weight and small size with improved performance make the color flat panel display HL1916S SERIAL preferable to conventional CRT monitors. - Page 4 Appliance coupler or separable plug of is used as isolation means to isolate the equipment from mains supply. Accessory equipment connected to the analog and digital interfaces must be certified according to the respective IEC/EN standards (e.g.IEC/EN950 for data processing equipment and IEC/EN 60601-1 for medical equipment).
- Page 5 Do not place any objects on top of the units Penetrating liquids may result in a fire or electric shock. Connection No contact to a patient must occur when handling the cables. Do not hurt yourself, when moving the display The display can be tilted backwards and forwards.
- Page 6 screws. Turn switch off and then remove power cord. Mounting information: The stability of the display must be guaranteed following mounting of the foot/holder. The immersion depth of the mounting screws has to be 10 to 12 mm including a 3 mm VESA mounting plate.
- Page 7 The permissible ambient temperature range (5 °C ... 35 °C) must not be violated. Do not subject device to unnecessary shocks. Take care when transporting! Use the original packaging! The panel in particular should protected against shocks. When touching the panel surface, the mechanical contact or an electrical discharge may cause a brief disturbance in the picture quality.
-
Page 8: Installation
3. Installation Provide adequate ventilation Ventilation slots are located on the rear of the housing. Ambient temperature The permissible ambient temperature range must not be violated. Minimize reflections The display should be positioned so that reflections of lights, windows, furniture with shiny surfaces or light-colored walls do not appear on the screen. -
Page 9: Connecting The Power And Signal Cables
If the display is to be used in a sequence of several displays, or if it is not exactly known whether the graphics card standard can be output by the display, refer to Section 5.1 "Connection of the flat panel display". -
Page 10: Cable (Attaching)
4.1.2 Cable (attaching) Connect the cables to the display. VGA connector: the flat panel display can be connected to the computer system using a VGA Cable on D-sub connection for analog signal. The Page 8 of 26... -
Page 11: Stand Base (Attaching)
display is adapted using an OSD menu. DVI-D connection: The connection to the computer can also be made via the digital single link. The picture quality, noise immunity and radiated interference of the complete system depend on the cable quality and length. DP connection: The connection to the computer can also be made via the DisplayPort connection. -
Page 12: Mounting Use
Button of stand base Note: the stand base is optional. 4.1.4 Mounting Use Remove the stand base according to the contrary way in 4.1.3. Fix the mount by mounting screws (see page 6 table Mounting Screws for details). Page 10 of 26... -
Page 13: Switching On The Display
4.2 Switching on the display Switch on the flat panel display using the power switch. The operation LED lights up (color: green, provided the timing has been recognized – please refer to section 7 "Fault diagnostics"). 4.3 Adjusting the image geometry The display automatically recognizes the used standard, and set-up values for each standard are preprogrammed. -
Page 14: Connections
5. Connections 5.1 Connecting the flat panel display Note All screening precautions contained in the corresponding EMC guidelines must be observed. If these guidelines are not observed, interference signals could penetrate the monitor. Information on cable installation Only screened cables are permitted for the signal connections. All connectors should be of screw or locking types (as far as possible). -
Page 15: Analog And Digital Inputs (Dvi,Vga,Dp)
to the computer for firmware updating and monitor test. 5.4 Analog and digital inputs (DVI,VGA,DP) DVI socket With DVI digital signal through DVI cable. VGA socket Use VGA cable for VGA input. DP socket With DP digital signal through DP cable. 5.5 Power supply connection Note Device fuses can not be exchanged outside of the repair centers. -
Page 16: Adjustments
Figure 4 USB-B connector Signal VBUS 6. Adjustments 6.1 Picture adjustment This section describes the settings for operation of the flat panel display with a video source. The most important settings are: Adjusting the graphics memory of the video source As with all monitors, the flat panel display also has certain limits, e.g. -
Page 17: Optimum Picture Quality
picture source, cable length and video mode (e.g. VGA, SVGA, XGA) this conversion may cause certain deviations which cannot be corrected fully automatically by the flat panel display. A manual fine adjustment is therefore necessary during which the flat panel display (or, more precisely, the video digitizer) is matched to the respective video source. -
Page 18: Osd Menu
of 1280 x 1024 pixels (settings for graphics card in the PC). When adjusting the picture position and size, ensure that the picture appears exactly on the active surface of the display and that it is not offset by even one pixel. For example, if the horizontal position is offset by one step to the right, the right-hand edge of the picture will disappear, and a black pixel column will appear at the left-hand edge. -
Page 19: Key Functions Without Active Osd Menu
6.3.2 Key functions without active OSD menu Action Menu Activate OSD Define VGA port Down Select DVI-D,DP, VGA input source Note: While there is no sync in VGA input, there is instruction on the OSD to indicate that how to define the analog input as VGA input. -
Page 20: Description Of The Menus
6.3.6 Description of the menus Main Menu Function Adjustment range Description Performance Brightness 0…100 Set brightness. Adapting the image quality of darker picture areas. The center point is in 50 position. Note: The brightness settings are already optimized for digital signals. Manual changes to these values are not recommended, as this can result in an impairment of picture quality (loss of... - Page 21 digital signals which is lower than 1280 x 1024 can be adjusted. Analog signals adjusted supported resolution. Negative figure is adjusted to get softer image and positive figure is adjusted to get sharper image. user should individually adjust the filter depending on the application. Input DVI-D Select...
-
Page 22: Fault Diagnostics
Exit Reject changes Check box for save or reject the Accept changes changes when Quit OSD Quit OSD menu . 7. Fault diagnostics Fault Cause Remedy No picture appears on Broken fuse Inform servicing department the display, Power cable not Insert power cable operation LED off inserted or... -
Page 23: Power Supply
Picture diagonal 19" or 48 cm Native resolution 1280 x 1024 (full-screen format) Pixel organization 3 vertical sub pixels Pixel pitch 0.294 mm x 0.294 mm Contrast ratio Typically 900:1 Horizontal viewing Typically ± 85° (CR≥10) angle Vertical viewing angle Typically ±... -
Page 24: Inputs/Outputs
8.4 Inputs/outputs 8.4.1 Analog signal input VGA input Via VGA socket, single link 8.4.2 Digital signal input DVI-D input Via DVI socket , single link DP input Via DP socket Via DVI 8.4.3 Serial interface RS232 Via RJ11 connector 8.4.4 Timing Input Item SPEC Horizontal: 31 ~ 82kHz... -
Page 25: Controls And Connection Elements
DVI-Digital TMDS: 600mV for each differential line Input Impedance: 50 ohm Single link Digital DVI EDID datum EDID via DVI I2C bus Display Port 1.1 Display Port: 600mV for each differential line Receiver Display Impedance: 100 ohm per differential pair 4 main Lanes Port DP EDID datum... -
Page 26: Climatic Conditions
8.7 Climatic conditions Operation Ambient temperature range +5 -- +35℃ Temperature gradient Max. 7℃/h , no condensation Relative Humidity 15%-85% Atmospheric pressure 70 – 106 kPa Transport and storage (packed) Ambient temperature range -20 -- +60℃ Temperature gradient Max. 10℃/h, no condensation Relative Humidity 10%-90% Atmospheric pressure... -
Page 27: Electromagnetic Compatibility
Type B/BF/CF applied No Applied Part part Category AP/APG No AP/APG equipment Conformity GAMMA2.2 8.10 Electromagnetic compatibility IEC60601-1-2 Class B FCC Part15 class B 9. Dimensional drawings All dimensions in mm. 9.1 Front, Platform and Side view 10 Remarks and contact address Invalidity of guarantee All unauthorized electrical or mechanical alterations on or in the unit Page 25 of 26... - Page 28 Environmental protection When disposing of the device, the requirements and laws in the respective country must be observed. Contact Information Shenzhen Beacon Display Technology Co.,Ltd. Room201, Incubator Building, CASTD, High-tech South 1st Street, Nanshan District, Shenzhen 518057, China Tel: 86-24-26995355...
- Page 29 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
