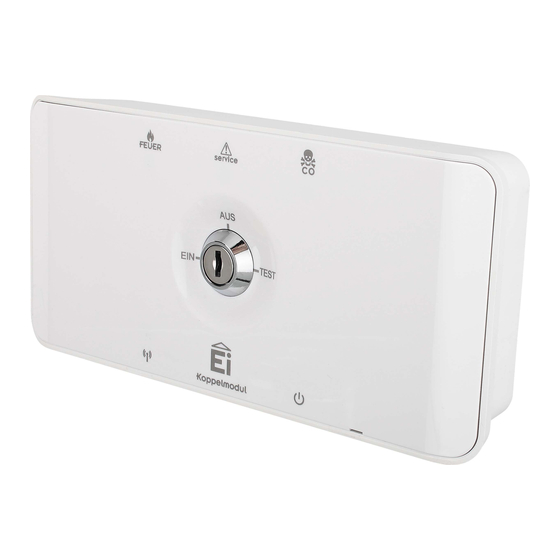

Fire / CO Alarm Interface
Model: Ei414
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your
Fire / CO Alarm Interface. The booklet should be regarded as part of the product.
If you are just installing the unit, the booklet must be given to the householder. The booklet is to be given to any subsequent user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EI944 and is the answer not in the manual?

Questions and answers

Related Manuals for Ei Electronics EI944

Summary of Contents for Ei Electronics EI944

  • Page 1 Fire / CO Alarm Interface Model: Ei414 Instruction Manual Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Fire / CO Alarm Interface. The booklet should be regarded as part of the product. If you are just installing the unit, the booklet must be given to the householder.

  • Page 2: Table Of Contents

    Contents Page 1. Introduction & Connection Diagrams ..................2. Typical Installation Examples ......................3. Installation ............................4. House Coding ............................5. Testing ..............................6. Service Relay ............................7. User Information ..........................8. Troubleshooting the RadioLINK ..................... 9. Technical Specification ........................10.

  • Page 3: Introduction & Connection Diagrams

    The Ei414 has 3 output relays for Fire, CO & Service that can be triggered by an Ei Electronics RF Alarm System. These relays can be directly connected to the other Systems or alternatively can be used to trigger one of the other Systems RF transmitters.
  • Page 4 Wireless Smoke Alarm System Wireless Smoke & Carbon Monoxide Alarm System RF Smoke Alarm RF Smoke Alarm RF CO Alarm RF Smoke Alarm Alarm Controller Alarm Interface Alarm Controller Alarm Interface RF Smoke Alarm RF Smoke Alarm Model No. - Alarms Comment Ei140RC, Ei160RC &...
  • Page 5 Hardwired Output Connection Diagram External Panel Fire / CO Alarm Controller (Fire / Telecare etc.) Ei208WRF Ei650RF Ei168RC Ei262 Ei450 RF Signal Input from Ei Alarm System service 11 - 30VDC TEST 230VAC Fire / CO Alarm Interface Ei414 For connection to External Panel see Manufacturers instructions...
  • Page 6 Wireless (RF) Connection Output Diagram External RF Panel Fire / CO Alarm Controller (Fire / Telecare etc.) Ei208WRF Ei650RF Ei168RC Ei262 Ei450 RF Signal Input from Ei Alarm System Transmitter service 11 - 30VDC Transmitter TEST 230VAC Fire / CO Alarm Interface Transmitter Ei414 For connection to External Panel &...
  • Page 7 Input Connection Diagram External Device Fire / CO Alarm Controller (Strobe etc.) Ei208WRF Ei650RF Ei168RC Ei262 Ei450 External Fire Panel RF Fire Signal Output service TEST External Device 230VAC (sprinkler flow valve) Fire / CO Alarm Interface Ei414 For connection to External Devices see Manufacturers instructions...

  • Page 8: Typical Installation Examples

    2. Typical Installation Examples RadioLINK Mains Powered Alarm System External Panel Fire / CO Alarm Controller (Fire / Telecare etc.) Ei166RC Smoke Alarm Ei164RC Heat Alarm Ei450 Alarm with Ei168RC with Ei168RC Controller RadioLINK Base RadioLINK Base In the event of a fire, the Ei161RC / Ei166RC service / Ei164RC will detect Smoke / Heat and the Ei168RC base will transmit an RF fire signal...
  • Page 9 RadioLINK Battery Powered Alarm System External RF Panel Fire / CO Alarm Controller (Fire / Telecare etc.) Ei450 Alarm Ei650RF Ei603TYCRF Controller Smoke Alarm Heat Alarm In the event of a fire, the Ei650RF / Ei603TYCRF service will detect Smoke / Heat and transmit an RF fire signal to the Ei414.
  • Page 10 RadioLINK / Hard Wired Hybrid System Fire / CO Alarm Controller External RF Panel (Fire / Telecare etc.) Ei650RF Ei208WRF Ei450 Alarm Smoke Alarm Carbon Monoxide Controller Alarm In the event of a fire / CO event, the relevant service Smoke / Heat / CO Alarm will transmit an TEST...

  • Page 11: Installation

    3. Installation Dip Switch (default) Screw Fixings Antenna Fire Relay Service Relay CO Relay Screw Fixings RadioLINK LED Battery Backup Switch...
  • Page 12 Screw Fixings Trigger inputs to send fire Voltage Input 12 - 24V signal to the RF Alarm system. These inputs will Volt Free Contacts also activate fire relay DC Power In 11 - 30V Power inputs AC Mains Input 230V Screw Fixings Power LED Battery Backup Switch...
  • Page 13 Mounting and Wiring AC Mains Wiring (230V) Warning: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. 1. Remove the cover (see page 3). Mount the Ei414 in a suitable location on a wall using the fixings provided, away from any objects that may block the RF signal (i.e away from metal surfaces).
  • Page 14 (See adjacent diagram for wiring option using surface trunking and knockout segments on the back of the base. Remove segments using a pliers or similar). 4. The green LED will indicate if power has been connected. Knockout segments 5. Ensure the Dip Switch has been set to the correct orientation (see ‘Dip Switch Operation section’).
  • Page 15 4. The trigger input voltage signal is optional and can be triggered by either a 12-24V DC power supply or alternatively from a dry contact signal. 5. Repeat steps 5 to 9 as above. Knockout segments Caution - Alternative Energy Sources – (wind, solar, UPS etc.) This product is designed to be connected to a True Sine Wave 230VAC supply.
  • Page 16 DIP Switch Operation (for delayed transmission) = Switch The Ei414 contains a dip switch which specifies whether the device will work in continuous mode or = Switch through a pulsed operation. It is also used to delay the output action. = Switch = Switch = Switch...
  • Page 17 Keyswitch Orientations TEST TEST TEST The Ei414 will be shipped In the ‘ON’ position the In the ‘TEST’ position the in the ‘OFF’ position. Ei414 responds to a fire Ei414 responds to a button alarm signal (activates test signal (will activate When ‘OFF’...

  • Page 18: House Coding

    4. House Coding It is essential to House Code the Ei414 to all the other RadioLINK Alarms and devices in the system to ensure they will not communicate with nearby systems. Failure to House Code the system may also result in a system malfunction.
  • Page 19 Return to the Ei414 and check that RadioLINK LED is flashing blue. The number of flashes should equal the number of RadioLINK Alarms and devices in the system. A system with 2 x Smoke Alarms, 1 x CO Alarm, 1 x Alarm Controller and 1 x Ei414 will result in 5 blue flashes.
  • Page 20 To complete the commissioning, the system must exit House Code mode. The units will automatically exit House Code after 30 minutes. Once coded the system will not communicate with any other RadioLINK Alarms and devices outside the House Coded group. To manually exit House Code press the House Code button on the Ei414.
  • Page 21 Reset the House Code Sometimes in order to resolve an RF communication issue, e.g. Alarms have to be relocated, it may be necessary to reset and House Code all RadioLINK Alarms and devices in the system again. To reset the Ei414 press and hold the House Code button. The RadioLINK LED will flash blue briefly and then go solid.

  • Page 22: Testing

    5. Testing The Ei414 must be tested by the installer upon installation. This test is primarily to ensure the functionality of the entire system i.e. the RadioLINK Alarm System in conjunction with the other manufacturer’s system. The ‘TEST’ mode facilitates the installer to button test each Alarm individually to ensure that the correct communication has taken place between the Ei414 and the other manufacturer’s system.

  • Page 23: Service Relay

    6. Service Relay The Ei414 is designed to act upon Service messages transmitted from any Alarm in a RadioLINK system. The Service relay will activate after one of the following events: (this will be indicated by the service LED flashing approx. every 6 secs). 1.

  • Page 24: User Information

    7. User Information Having an Ei414 Fire/CO Alarm Interface installed in conjunction with an other manufacturer’s system gives the user additional protection. However it is essential that all Smoke/Heat/CO Alarms are tested weekly. If an Ei168RC RadioLINK Base is installed in the system then the system must be tested using an Ei450 Alarm Controller.
  • Page 25 When the alarm system sounds N.B. If there has been an emergency evacuation procedure put in place by the Alarm Monitoring Centre (or equivalent), please follow those instructions in case of an emergency. If there has not been any specific instructions issued by the Alarm Monitoring Centre, please follow the basic responses in the instance of a fire or CO event.

  • Page 26: Troubleshooting The Radiolink

    8. Troubleshooting the RadioLINK If, when checking the RadioLINK interconnection, some of the Alarms do not respond, repeat the steps in the ‘Housecode’ procedure: (i) Ensure the Ei414 has been activated correctly. Check that the power on procedure operates as described in the ‘Installation’...

  • Page 27: Technical Specification

    9. Technical Specification Power Required: Mains 230VAC or 11-30VDC RF Range: Over 100 meters in free space RF Visual Indicator: Blue light indicates RF activity Power Indicator: Green light indicates mains or DC power connected Alarm Indicator: Red light for Fire (marked) - Red light for CO (marked) Service Indicator: Red light (marked) RF Frequency:...

  • Page 28: Service & Guarantee

    Five Year Guarantee Ei Electronics guarantees this Fire / CO Alarm Interface for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of use and service, and does not include damage resulting from accident, neglect, misuse, unauthorised dismantling, or contamination howsoever caused.
  • Page 29 0889 Hereby, Ei Electronics declares that this Ei414 Fire / CO Alarm Interface is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformity may be consulted at www.eielectronics.com/compliance...
  • Page 30 Block E1 The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream. Proper disposal will prevent possible harm to the environment or to human health. When disposing of this product please separate it from other waste streams to ensure that it can be recycled in an environmentally sound manner.

  • Page 32: Contact Us

    11. Contact Us Aico Ltd Ei Electronics Mile End Business Park, Shannon Industrial Estate, Maesbury Road, Oswestry, Shannon, Co. Clare, Ireland. Shropshire SY10 8NN, U.K. Telephone: +353 (0)61 471277 Telephone: 01691 664100 www.eielectronics.com www.aico.co.uk © Ei Electronics 2015 P/N B18063 Rev 1...
