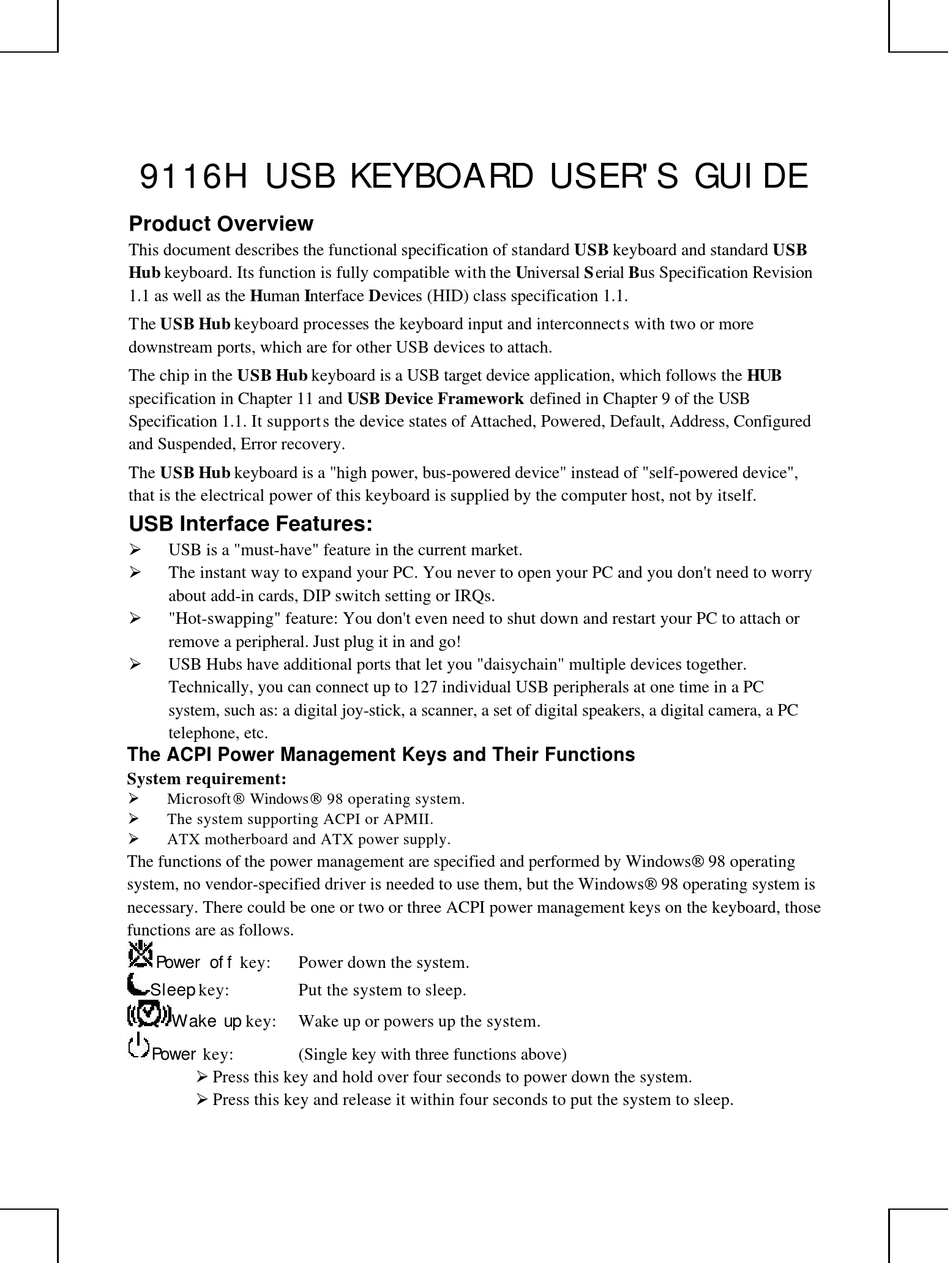

9116H USB KEYBOARD USER'S GUIDE

Product Overview

This document describes the functional specification of standard USB keyboard and standard USB
Hub keyboard. Its function is fully compatible with the Universal S erial Bus Specification Revision
1.1 as well as the Human Interface Devices (HID) class specification 1.1.
The USB Hub keyboard processes the keyboard input and interconnects with two or more
downstream ports, which are for other USB devices to attach.
The chip in the USB Hub keyboard is a USB target device application, which follows the HUB
specification in Chapter 11 and USB Device Framework defined in Chapter 9 of the USB
Specification 1.1. It support s the device states of Attached, Powered, Default, Address, Configured
and Suspended, Error recovery.
The USB Hub keyboard is a "high power, bus-powered device" instead of "self-powered device",
that is the electrical power of this keyboard is supplied by the computer host, not by itself.

USB Interface Features:

Ø
USB is a "must-have" feature in the current market.
Ø
The instant way to expand your PC. You never to open your PC and you don't need to worry
about add-in cards, DIP switch setting or IRQs.
Ø
"Hot-swapping" feature: You don't even need to shut down and restart your PC to attach or
remove a peripheral. Just plug it in and go!
Ø
USB Hubs have additional ports that let you "daisychain" multiple devices together.
Technically, you can connect up to 127 individual USB peripherals at one time in a PC
system, such as: a digital joy-stick, a scanner, a set of digital speakers, a digital camera, a PC
telephone, etc.

The ACPI Power Management Keys and Their Functions

System requirement:
Microsoft ® Windows® 98 operating system.
Ø
Ø
The system supporting ACPI or APMII.
Ø
ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by Windows® 98 operating
system, no vendor-specified driver is needed to use them, but the Windows® 98 operating system is
necessary. There could be one or two or three ACPI power management keys on the keyboard, those
functions are as follows.
Power off key:
Power down the system.
Sleep key:
Put the system to sleep.
Wake up key:
Wake up or powers up the system.
Power key:
(Single key with three functions above)
Ø Press this key and hold over four seconds to power down the system.
Ø Press this key and release it within four seconds to put the system to sleep.
