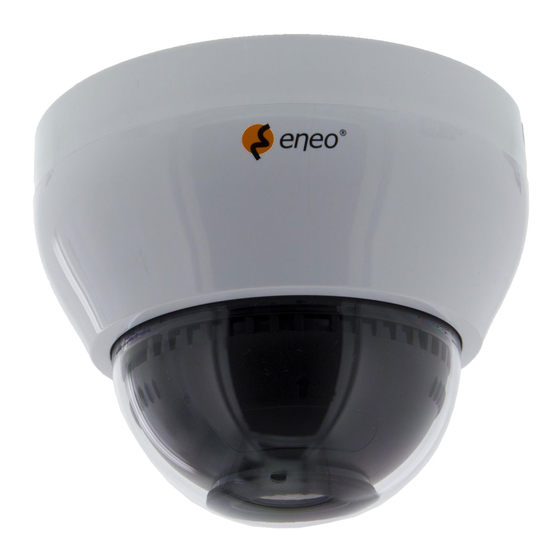

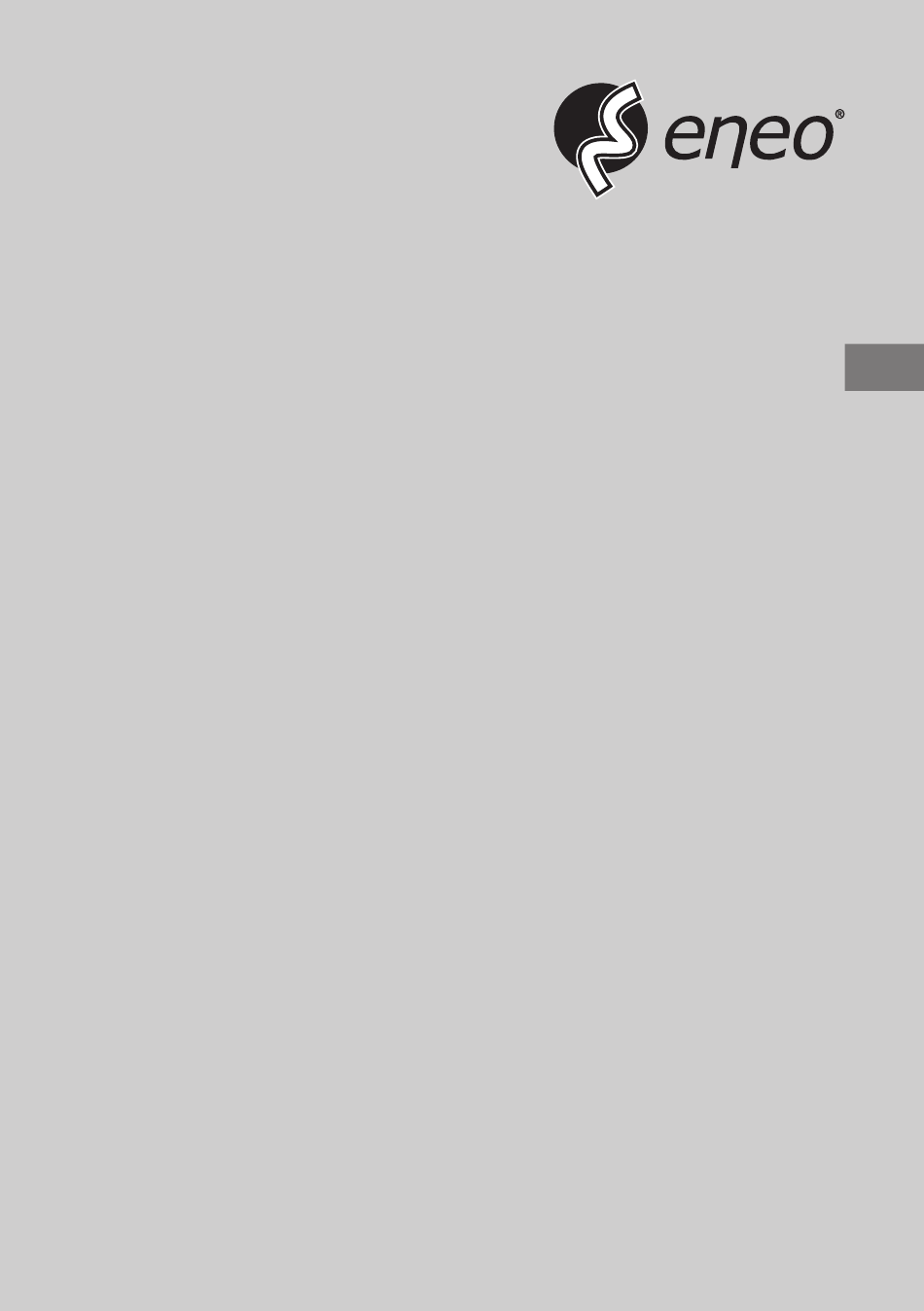

- Page 1 User Manual 1/2.8” Network Dome, 2MP, 1920x1080, Day&Night, D-WDR, 2.8-12mm, Infrared, Indoor IPD-62M2812P0A...
-
Page 2: Table Of Contents
Table of content Parts supplied ......................5 Part names .........................6 Installation instructions ...................7 Pan & Tilt adjustments ............................9 Power supply connections ..........................10 General Description ....................11 ......................12 Quick Network Setup ....................14 Further information ....................14 Full Menu Setup .......................15 Web viewer description .......................... - Page 3 Safety instructions General safety instructions • • Keep the operating instructions in a safe place for later use. • Installation, commissioning and maintenance of the system may only be carried out by authorised individuals and in accordance with the installation instructions - ensuring that all applicable standards and guidelines are followed.
- Page 4 Class A device note This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may need to take appropriate measures to compensate for these. WEEE (Waste Electronical & Electronic Equipment) Correct Disposal of This Product (Applicable in the European Union and other European countries with separate collection systems).
-
Page 5: Parts Supplied
Parts supplied • Dome Camera • Operating Instruction • Mounting Template • Easy Adaptor (Flat type) • Easy Adaptor (Tilted type) • Plastic Anchor: 6 x 30mm (3x) • Mounting Screw: 3.5 x 25mm (3x) • Open Tool (1x) -
Page 6: Part Names
Part names Ethernet & Power Cable Tilted Easy Adaptor Easy Adaptor Flat type Dome Base Gimbal Rear View Micro SD-Card Slot Reset Button (Default) 3-Axis Gimbal Lens Dome Cover Bubble Light Sensor IR-LEDs... -
Page 7: Installation Instructions
Installation instructions CAUTION: The camera’s base should be attached to a structural object, such as concrete, hard wood, wall stud or ceiling rafter that supports the weight of the camera. If necessary use appro- priate mounting material (e.g. anchors) instead of the material enclosed with the camera. - Page 8 Detach the dome camera from the Easy Adaptor Push the hook on the dome base and swing the dome base to counterclock wise. Then detach the dome camera from the installed easy adaptor. Open the dome cover 1. Insert wide side of Open Tool into the lock of Dome Cover. 2.
-
Page 9: Pan & Tilt Adjustments
Pan & Tilt adjustments 1. Pan limit: Pan is limited to +/- 165°. Do NOT force to rotate the gimbal over the limit to prevent from the internal damage. 2. Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the inclination of camera module is 0°, that is, the image is aligned horizontally. -
Page 10: Power Supply Connections
Power supply connections Make sure the power is removed before the installation. Camera can work with either 12VDC or PoE (IEEE Std. 802.3af ). Primary and secondary grounds are completely isolated to avoid the possible ground loop problems. 1. Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal. -
Page 11: General Description
General Description • Full-HD, 2.3Mega Pixel, NETWORK CAMERA, 1920x1080(30p/25p) • ONVIF Conformance • Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome) • Adaptive web resizing depending on layout & resolution of display device by RESPONSIVE WEB • Increased usability for all PC, tablet and mobile •... - Page 12 ITEM IPD-62M2812P0A Imaging Sensor 1/2.8" Sony 2.3Mega pixel RGB Bayer Array CMOS Sensor Effective Pixels 1920(H) x 1080(V) approx. 2.07Mega pixels (Full-HD mode) Sensitivity Color Mode: 0.15 lux (LED off), B/W Mode: 0.03 lux (LED off) Scanning mode Progressive Scan...
- Page 13 Network Time Sync. Synchronize Computer/NTP Server, Manual Software Reset Restart, Reset, Factory Default Auto Recovery Backup, Restore Using Web Browser Remote Upgrade Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Built-In Web, ONVIF Compatible 3rd Party VMS API, ONVIF Profile S Compliant SDK Support SD memory card...
-
Page 14: Quick Network Setup
IP addresses. The network camera‘s default IP address is: 192.168.1.10. 5. Right clicking the device name in the eneo Site Manager will bring up the context menu. Use the ‘Open Device Web Site’ option to access the camera. 6. The web viewer login page will open up in your default web browser. -
Page 15: Full Menu Setup
Full Menu Setup Web viewer description XXX-XXXXXXXXXX (A) Menu button : Click the button to show or hide the setup menu bar. (B) Model name : Show a camera model name connected. (C) Select Language : Set the web viewer language English, Deutsch or French. (D) Main setup menu bar : Set the camera or network functions. -
Page 16: Setup Menu Table
Full Menu Setup Setup Menu Table Category Menu Player Control Pause, Snapshot, Record Display Window Fit, Full Screen, Custom LIVE VIEW Video Stream Stream1, Stream2, Stream3 Protocol HTTPS, HTTP, TCP, UDP PTZ Contol Zoom, Focus, Push AF PLAYBACK Event Search, Timeline Search, Timeline Bar Information General, System Information, Open source Information Source... - Page 17 Full Menu Setup Record verwrite when storage is full, Continuous record setting Record chedule Recycling Recycling Time Setting Storage Format, Remove, Storage Information Motion, VCA, Tamper, System, Manual, Network, Timer, Triggers Day/Night Event Actions Record, E-Mail, FTP, Video B SETUP Rules Event Processing, ONVIF Mapping Security...
-
Page 18: Live View
Full Menu Setup 1. LIVE VIEW Enter the live view menu on the Web Viewer. Player Control & Display Pause : Pauses the live view. Snapshot : Captures the image in .jpg format with the current stream resolution. Record : Records the live video in H.264 format into the equipped storage memory like SD, SDHC &... -
Page 19: Ptz Control
Full Menu Setup PTZ Control • ZOOM : Controls the lens optical zoom in/out for WIDE & TELE. • FOCUS : Adjusts the lens focus manually for NEAR & FAR. • PUSH AF : Gets the lens to focus at the push of a button. NOTE ZOOM, FOCUS &... -
Page 20: Playback
Full Menu Setup 2. PLAYBACK 0:00:00 Event Search Playback display using the event list. • Press the input bar to pop up EVENT DATE & TIME window and select the event TYPE. • Click SEARCH button to show up EVENT LIST. •... -
Page 21: Setup
Full Menu Setup 3. SETUP Enter the setup menu on the Web Viewer. 3-1. Information Shows the overall information about the system such as Model name, MAC address, IP address, Zeroconf, IP address, Firmware version, Server time, Running time, CPU usage, Inbound/Outbound Bandwidth and Open source list. - Page 22 Full Menu Setup 3-2-2. Stream 1920x1080@25fps Stream1, 2, 3 > COMPRESSION : Video compression codecs are available with H.264 profiles for all streams and additional MJPEG for stream3 only. > RESOLUTION : Each stream can have its individual resolution selected from its list. >...
- Page 23 Full Menu Setup > BITRATE : Indicates the transmission speed through the network and defines the overall picture quality along with the image resolution, frame rate, GOP size and the compression codec for H.264. A high value provides the higher image quality but the total sum of bitrates for the streams has to be considered in calculating the network duty.
- Page 24 Full Menu Setup 3-2-3. Image 2015-10-06 09:50:35 CAM1...
- Page 25 Full Menu Setup Basic > BRIGHTNESS: Adjusts the overall brightness of the scene. Increasing the value increases the brightness. > CONTRAST: Adjusts the contrast of the scene. Increasing the value increases the contrast. > SATURATION: Adjusts the color richness of the scene. Increasing the value increases the color richness.
- Page 26 Full Menu Setup > MODE : Selects how to control the exposure, AUTOMATIC or MANUAL. > SHUTTER : (Available only in MANUAL mode) Sets the shutter to a fixed value. > MAX. SHUTTER : Sets the maximum exposure time to limit long exposure at night or in low-light scenes.
- Page 27 Full Menu Setup VerticalView > MODE : Selects how to control the focus of the built-in Motor driven V/F lens or AF lens. • MANUAL : Focusing works during zoom operation only and stops thereafter. • AUTOMATIC : Focusing works steadily for sharp focusing on the object. In the case of a Motor driven lens, focusing resumes in about 7~8 seconds to save the lens lifetime when the focus gets lost.
- Page 28 Full Menu Setup [ WARNING ] LENS CALIBRATION is not necessary for regular installations. LENS CALIBRATION would only be necessary should you not be able to focus the lens after a zoom operation due to shock during transportation of the camera. To perform LENS CALIBRATION;...
- Page 29 Full Menu Setup > SWITCHING TIME : Delays switching the day/night filter to prevent from an undesirable transition. > THRESHOLD [D->N] : (Available in AUTOMATIC mode) Sets the threshold level for day->night switching. Decrease the value to switch at low luminance.
- Page 30 Full Menu Setup > BLC (Back Light Compensation) : • MODE : ON enhances the visibility of the back-lit object. • LEVEL : Determines the strength of the bright-up. High value gets brighter. > HLC (High Light Compensation) : ON cuts out the highlight area with black mask and excludes it from compensation. VerticalView (Dynamic Digital Noise Reduction) >...
- Page 31 Full Menu Setup > 3DNR : • MODE: ON reduces the noise by cancelling the spatial & temporal components in 3 dimensional a way. • LEVEL: Determines the strength of the noise reduction. Higher values reduce more noise but can also lead to a ghosting effect. (Lens Distortion Compensation) >...
- Page 32 Full Menu Setup VerticalView > MODE : ON displays the video in vertical view format, 16:9->9:16 for narrow streets, corridors or hallways. > ROTATION : Determines the orientation to rotate. Mode : On Rotation : 90 degree 3-2-4. Privacy Mask Mark ENABLE checkbox to activate the privacy masks.
- Page 33 Full Menu Setup To set the privacy mask (up to 8 privacy areas) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor anywhere and click the right mouse button. A mini pop up appears. Select CREATE MASK AREA / DELETE MASK AREA. 3) In the video window, place the mouse cursor where you would like to create a mask.
-
Page 34: Record
Full Menu Setup 3-3. Record 3-3-1. Record > Mark OVERWRITE WHEN STORAGE IS FULL checkbox to allow the storage to be overwritten. > CONTINUOUS RECORD SETTING : Mark ENABLE checkbox to activate the continuous recording into the storage. > VIDEO STREAM : Selects the stream to be recorded into the storage. SD, SDHC or SDXC memory can be used as a storage device. - Page 35 Full Menu Setup 3-3-3. Recycling > Mark ENABLE RECYCLING checkbox to delete recorded video data in storage when certain time is passed. For example, if Recycling Time is set to 2 Months 1Day 0Hour, all the video data that passed 2 Months 1Day 0Hour will be deleted. >...
-
Page 36: Event
Full Menu Setup 3-4. Event 3-4-1. Triggers EVENT TRIGGERS menu defines and sets the parameters for the various event sources. [ Important NOTE ] Once the event is generated, the camera can record the video into the storage, output the alarm signal, email the event, send the video clip to FTP, boost the video frame rate, move to PTZ preset or send the event to the notification server. - Page 37 Full Menu Setup To set the motion detection area (up to 4 include-types and 4 exclude-types) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor where you would like to make a detection window and click&drag the right button. The following window is then generated. •...
- Page 38 Full Menu Setup > Mark ENABLE checkbox to create & activate up to 3 VCAs. > NAME : Input the individual name for each VCA. To set the VCA detection area (up to total 3 VCAs including Line Cross, Field intrusion & Appear/Disappear) : 1) Mark ENABLE checkbox.
- Page 39 Full Menu Setup Tamper The camera can detect severe changes in the image caused by actions such as repositioning the camera or painting over of the lens and generates an alarm to alert. > Mark ENABLE checkbox to activate the tamper alarm. >...
- Page 40 Full Menu Setup Network : Used to trigger the event when the network connection fails. > Mark ENABLE checkbox to activate the network event. > DWELL TIME : Sets the time for the event once triggered by the network connection event. Timer Day/Night Timer...
- Page 41 Full Menu Setup 3-4-2. Actions EVENT ACTIONS menu defines and sets the parameters for how to treat the various event sources. Record > Mark ENABLE checkbox to enable recording into the built-in storage when the event occurs. > VIDEO STREAM : Selects the stream to be recorded when the event occurs. >...
- Page 42 Full Menu Setup > Mark ENABLE USE(SMTP) AUTHENTICATION checkbox if the mail server requires authentication. • USER NAME : Enter the user name as provided by the network administrator. • PASSWORD : Enter the password as provided by the network administrator. •...
- Page 43 Full Menu Setup > RECEIVER LIST : Enter the recipient’s email addresses as the receivers. > E-MAIL(SMTP) TEST : Enter the recipient's email address in RECEIVER and click the TEST button to test if the mail servers are functioning and the email address is valid.
- Page 44 Full Menu Setup • USER NAME: Enter the user name provided by the network administrator. • ANONYMOUS LOGIN: Mark ANONYMOUS LOGIN checkbox if anyone is permitted to access the FTP server. • PASSWORD: Enter the password provided by the network administrator. >...
- Page 45 Full Menu Setup Notification Server > Mark ENABLE checkbox to notify the event to the notification server when it occurs. • TYPE : Selects the network protocol to connect the notification server. • SERVER URL : Input the server URL of the notification sever. To enable the audio when the event occurs, copy the URL at SETUP>AUDIO and paste it on the server URL like http://x.x.x.x/setup/audio/audio.php •...
- Page 46 Full Menu Setup 3-4-3. Rules EVENT RULES menu defines and sets the parameters for what to do for the various event sources. Event Processing Event process lists have to be generated and can be edited for what to do when the event occurs.
- Page 47 Full Menu Setup > FTP : Mark the checkbox to use FTP as set in SETUP>EVENT>ACTIONS>FTP when the selected event occurs. > VIDEO BOOST : Select the video stream to be boosted up. Video boost is disabled if RECORD is enabled. [ NOTE ] >...
- Page 48 Full Menu Setup ONVIF Mapping Onvif mapping is provided to map the various events generated by this camera, but not defined by Onvif, to assign them to Onvif events for the Onvif compatible VMSes or NVRs. Two mappings for Motion and Alarm In are provided to be mapped and can be used by editing them.
-
Page 49: System
Full Menu Setup 3-5. System 3-5-1. Security Users ● Manages the user accounts by names, groups and authorities. > USERS : Can be added, edited or deleted. - Page 50 Full Menu Setup HTTPS Selects the CONNECTION MODE. Export / Import > HTTP : Transfers data without encryption. Supports a URL that only starts with "HTTP: " > HTTPS : Transfer data with encryption by Hypertext Transfer Protocol over SSL protocol. Supports a URL that only starts with "HTTPS: "...
- Page 51 Full Menu Setup To add a subnet of network addresses, these must be added in CIDR [ NOTE ] (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Contact your network administrator for more detail.
- Page 52 Full Menu Setup 3-5-2. Date & Time Current Time Shows the current date and time. Clicking SAVE tap updates and saves the date and time with the selected time in NEW TIME. New Time Select one of the following server times. >...
- Page 53 Full Menu Setup 3-5-3. Network TCP/IP > IPv4 ADDRESS : • OBTAIN IP ADRESS VIA DHCP : Gets the IP address assigned by the DHCP (Dynamic Host Configuration Protocol) server. • STATUS : ‘Allocated’ shows that the IP address is obtained from the DHCP. •...
- Page 54 Full Menu Setup > PORT : • HTTP PORT : Use a port number in the range 1024-65535. Default is 80. • HTTPS PORT : Use a port number in the range 1024-65535. Default is 443. • RTSP PORT : Use a port number in the range 1024-65535. Default is 554.
- Page 55 Full Menu Setup DDNS (Dynamic Domain Naming Service) > Mark ENABLE checkbox to use DDNS. > DDNS server : Select the DDNS server to use. > Input REGISTERED HOST name, USER NAME, PASSWORD and INTERVAL. [ NOTE ] If the camera has not been registered to the DDNS host previously, the registration is required.
- Page 56 Full Menu Setup > START PORT & END PORT : RTP port range defines the range of the ports from which ports of the video/audio are automatically selected. This feature is useful if the camera is connected to a NAT router with manually configured port mapping. Limit the range of the ports permitted for RTP unicast/multicast by entering START PORT and END PORT.
- Page 57 Full Menu Setup UPnP UPnP is enabled by default so that the network camera can be automatically detected by operating systems and clients that support this protocol. > FRIENDLY NAME : Enter the name up to 32 alphanumeric characters like Model Name-MAC address.
- Page 58 Full Menu Setup 3-5-4. Language Six languages are available to select from English, Deutsch (German), Français (French), Polski (Polish), Suomi (Finnish), and (Korean). 3-5-5. Maintenance Maintain > RESTART : Restarts the camera without changing any settings. > RESET : Restarts and loads the factory settings but does not change IP address and PTZ settings.
- Page 59 Full Menu Setup Upgrade ● Bring the firmware file to the drop box or click the drop box to browse for the firmware file, and then click the UPGRADE button. Do not disconnect the power or network cable during firmware UPGRADE. [ CAUTION ] Setup Export ●...
-
Page 60: Help, 4 Eyes Principle
Full Menu Setup 4. Help Help the menu function. Click and pop-up the page about current menu description. 5. 4 EYES PRINCIPLE > Four Eyes Principle Setting : Two individual administrators(user authority) should approve to playback recorded data on Micro SD card for data security. One administrator should click Approval #1 and the other administrator should click Approval #2. -
Page 61: Troubleshooting
Troubleshooting If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware. - Page 62 Troubleshooting Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.
