Summary of Contents for Eneo IPD-68M3611P5A

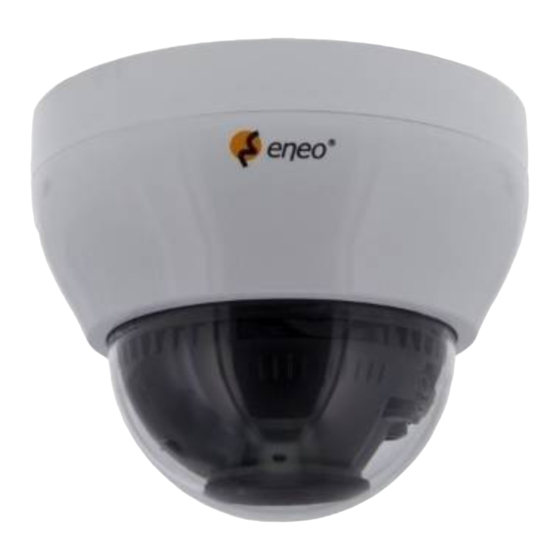

- Page 1 User Manual 1/2.5" Network Dome, Fix, 3840x2160, Day&Night, DOL- WDR, 3.6-11mm, Infrared, Indoor IPD-68M3611P5A...
-
Page 3: Safety Precaution
MEGA-PIXEL NETWORK CAMERA Safety Precaution To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 MEGA-PIXEL NETWORK CAMERA Safety Precaution NOTICE • The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. • Avoid installing areas where has shock or vibration which results in the problems. •...
-
Page 5: Table Of Contents
MEGA-PIXEL NETWORK CAMERA Contents Safety Precaution ....03~04p Contents ....... 05p . -
Page 6: Features
MEGA-PIXEL NETWORK CAMERA Features • 8.29Mega Pixel, NETWORK CAMERA, 3840x2160(30/25fps) • The best low light performance with SONY’s STARVIS sensor • ONVIF Conformance • ONVIF Event Mapping • Zero configuration • Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome) • Adaptive web resizing depending on layout & resolution of display device by RESPONSIVE WEB •... -
Page 7: Composition
MEGA-PIXEL NETWORK CAMERA Composition Plastic Anchor: Mounting Screw: 6 x 30mm (3pcs) 3.5 x 25mm (3pcs) Dome Camera Operating Mounting Instruction Template Open Driver (1pc) Easy Adaptor Tilted Adaptor Dimensions (unit : mm) Option... -
Page 8: Part Names
MEGA-PIXEL NETWORK CAMERA Part Names Tilted Easy Adaptor Power Cable Easy Adaptor Flat type Dome Base Micro SD-Card Slot (option) IP Reset Button 3-Axis Gimbal Lens Dome Cover Bubble Dome IR-LED Type Light Sensor IR LEDs... -
Page 9: Installation Instructions
MEGA-PIXEL NETWORK CAMERA Installation Instructions 1. Drill three holes for mounting on the ceiling or wall. 2. Attach the Easy Adaptors at the pre-drilled installation position and fix it by using mounting screws. 3. Route the power cable to the connecting place. 4. - Page 10 MEGA-PIXEL NETWORK CAMERA Installation Instructions Limit of Pan & Tilt 1) Pan limit: Pan is limited to +/- 165°. Do NOT force to rotate the gimbal over the limit to prevent from the internal damage. 2) Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the inclination of camera module is 0°, that is, the image is aligned horizontally.
- Page 11 MEGA-PIXEL NETWORK CAMERA Installation Instructions ■ Detach the dome camera from the easy adaptor Push the hook on the dome base and swing the dome base to counter- clock wise. Then detach the dome camera from the installed easy adaptor. CAUTION (LED type only) •...
-
Page 12: Specifications
MEGA-PIXEL NETWORK CAMERA Specifications NTSC ITEM Imaging Sensor 1/2.5" Sony 8.29Mega pixel RGB Bayer Array CMOS STARVIS Sensor Effective Pixels 3840(H) x 2160(V) approx. 8.29 Mega pixels Sensitivity Color : 0.2 Lux, B/W : 0.02 Lux (Sens-up OFF) Scanning mode Progressive Scan S/N Ratio 50dB... - Page 13 MEGA-PIXEL NETWORK CAMERA Specifications Login Authority Administrator, Operator, Guest Security Multi User Authority, IP Filtering, HTTPS, Video Stream, Export/Import Network Time Sync. Synchronize Computer/NTP Server, Manual Software Reset Restart, Reset, Factory Default Auto Recovery Backup, Restore Remote Upgrade Using Web Browser Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour...
-
Page 14: Operating Instructions
MEGA-PIXEL NETWORK CAMERA Operating Instructions Setup Menu table Category Menu Configuration Player Control Pause, Snapshot, Record Display (Window Fit, Full Screen, Custom) LIVE VIEW Video Stream Stream1, Stream2, Stream3, Stream4 Protocol HTTPS, HTTP, TCP, UDP PTZ Control Zoom, Focus, Push AF PLAYBACK Event Search, Timeline Search, Timeline Bar Information... - Page 15 MEGA-PIXEL NETWORK CAMERA Operating Instructions Record Record Overwrite when storage is full, Continuous record setting Schedule Recycling Recycling Time Setting Storage Format, Remove, Storage Information Event Triggers Motion, VCA, System, Manual, Network, Timer, Day/Night Actions Record, E-Mail, FTP, Video Boost, SETUP Notification Server Rules...
- Page 16 IP addresses. The network camera‘s default IP address is: 192.168.1.10. 5. Right clicking the device name in the eneo Scan Device tool will bring up the context menu. Use the ‘Open Device Web Site’ option to access the camera.
-
Page 17: Full Menu Setup
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 1. LIVE VIEW Enter the live view menu on the Web Viewer. ■ Web Viewer description XXX-XXXXXXXXX A) Menu button : Click the button to show or hide the setup menu bar. B) Model name : Show a camera model name connected. C) Select Language : Set the web viewer language English, Deutsch or French. - Page 18 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ■ Display ④ Window Fit : Resizes the live view display to fit along with the display window size. ⑤ Full Screen: Resizes the live view display to fit to the monitor resolution. ESC key returns to the previous view.
-
Page 19: Playback
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 2. PLAYBACK 0:00:00 ■ Event Search Playback display using the event list. • Press the input bar to pop up EVENT DATE & TIME window and select the event TYPE. • Click SEARCH button to show up EVENT LIST. •... -
Page 20: Setup
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3. SETUP Enter the setup menu on the Web Viewer. 3-1. Information Shows the overall information about the system such as Model name, MAC address, IP address, Zeroconf, IP address, Hardware version, Firmware version, Server time, Running time, CPU usage, Inbound/Outbound Bandwidth and Open source list. - Page 21 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-2-2. Stream XXXXxXXXX 4000 Stream1, 2, 3, 4 ● > COMPRESSION : H.265(+) and H.264(+) are available in all stream but MJPEG is available in Stream 3, 4 only. • H.265+, H.264+ : Enables to process video data smartly according to users demand and lowering overallbandwidth, and reduce the storage burden.
- Page 22 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > GOP SIZE: GOP (Group of Picture) defines the number of Intra-coded pictures (I frame) & Predictive-coded pictures(P frame) in H.264. I frame is a complete image while P frame is the predictive image data which can lower the image data dramatically between frames. GOP SIZE stands for the number of P frames between I frames.
- Page 23 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-2-3. Smart Video Stream ● ROI(Region Of Interest) > Enables to process video data smartly according to users demand. > Available to deliver high quality video on interested region while less quality video on non interested region.
- Page 24 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 4) ROI frame rate is available to set in Settings> Video & Image> Video Stream. 5) To delete the selected area, Click the mouse right button on the video viewer, select "Create ROI area" or click “Delete” button. 6) After setting the mode, press the SAVE.
- Page 25 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-2-4. Image 2016-10-06 09:50:35 CAM1...
- Page 26 MEGA-PIXEL NETWORK CAMERA Full Menu Setup Basic ● > BRIGHTNESS: Adjusts the overall brightness of the scene. Increasing the value increases the brightness. > CONTRAST: Adjusts the contrast of the scene. Increasing the value increases the contrast. > SATURATION: Adjusts the color richness of the scene. Increasing the value increases the color richness.
- Page 27 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ● > MODE : Selects how to control the exposure, AUTOMATIC or MANUAL. > SLOW SHUTTER : Extends the shutter time over the maximum shutter at multiple times of value in SLOW SHUTTER. Increasing the values increases brightness but also increases blurriness(Available only with 2MP model) >...
- Page 28 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ● > MODE : Provides White Balance presets. ATW or Manual is recommended for most applications. > R GAIN / Gr GAIN / Gb GAIN / B GAIN : (Available only in MANUAL AWB mode) Adjusts the white balance by Cb/Cr color components to the specific lighting which has a fixed color temperature.
- Page 29 MEGA-PIXEL NETWORK CAMERA Full Menu Setup [ WARNING ] LENS CALIBRATION is not necessary for regular installations. LENS CALIBRATION would only be necessary should you not be able to focus the lens after a zoom operation due to shock during transportation of the camera. To perform LENS CALIBRATION;...
- Page 30 MEGA-PIXEL NETWORK CAMERA Full Menu Setup Day & Night ● > MODE : Selects how to control the day/night feature. • DAY : Disables the switching day/night filter and fixes it to DAY only. • NIGHT : Disables the switching day/night filter and fixes it to NIGHT only. •...
- Page 31 MEGA-PIXEL NETWORK CAMERA Full Menu Setup [ CAUTION ] • The gap between THRESHOLD [D->N] and THRESHOLD [N->D] should be greater than 18. Otherwise, an undesirable transition may occur. • Too high a value in THRESHOLD [N->D] can cause cameras at installed in low-light areas to stay in night mode permanently i.e.
- Page 32 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > BLC (Back Light Compensation) : • MODE : ON enhances the visibility of the back-lit object. • LEVEL : Determines the strength of the bright-up. High value gets brighter. > HLC (High Light Compensation) : ON compensates whole image against High light area.
- Page 33 MEGA-PIXEL NETWORK CAMERA Full Menu Setup VerticalView ● > MODE : ON displays the video in vertical view format, 16:9->9:16 for narrow streets, corridors or hallways. > ROTATION : Determines the orientation to rotate. Mode : On Rotation : 90 degree...
- Page 34 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-2-5. Privacy Mask Mark ENABLE checkbox to activate the privacy masks. > COLOR : Select the color to mask at each privacy area. > NAME : Input the individual name for each privacy mask. To set the privacy mask (up to 8 privacy areas) : 1) Mark ENABLE checkbox.
- Page 35 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-2-6. Digital Zoom > Mark ENABLE checkbox to activate the digital zoom. > LEVEL selects the fixed digital zoom ratio. X1.0 is not digital zoomed. 3-2-7. DIS (Digital Image Stabilization) > Mark ENABLE checkbox to reduce and stabilize the shaky image from a camera installed in the vibrating area.
-
Page 36: Record
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-3. Record 3-3-1. Record > Mark OVERWRITE WHEN STORAGE IS FULL checkbox to allow the storage to be overwritten. > CONTINUOUS RECORD SETTING : Mark ENABLE checkbox to activate the continuous recording into the storage. >... - Page 37 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-3-3. Recycling > Mark ENABLE RECYCLING checkbox to delete recorded video data in storage when certain time is passed. For example, if Recycling Time is set to 2 Months 1Day 0Hour, all the video data that passed 2 Months 1Day 0Hour will be deleted. >...
- Page 38 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-3-4. Storage > FORMAT : Formats the storage. Backup the data before formatting the storage if necessary. > REMOVE : Helps removing the storage safely. [ NOTE ] Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services.
-
Page 39: Event
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-4. Event 3-4-1. Triggers EVENT TRIGGERS menu defines and sets the parameters for the various event sources. [ Important NOTE ] Once the event is generated, the camera can record the video into the storage, output the alarm signal, email the event, send the video clip to FTP, boost the video frame rate, move to PTZ preset or send the event to the notification server. - Page 40 MEGA-PIXEL NETWORK CAMERA Full Menu Setup To set the motion detection area (up to 4 include-types and 4 exclude-types) : 1) Mark ENABLE checkbox. 2) In the video window, place the mouse cursor where you would like to make a detection window and click&drag the right button.
- Page 41 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > Mark ENABLE checkbox to create & activate up to 3 VCAs(Line Cross, Field intrusion & Appear/Disappear) > NAME : Input the individual name for each VCA. To set the VCA detection area (up to total 3 VCAs including Line Cross, Field intrusion & Appear/Disappear) : 1) Mark ENABLE checkbox.
-
Page 42: System
MEGA-PIXEL NETWORK CAMERA Full Menu Setup System ● Used to trigger the event when the camera gets rebooted. > Mark ENABLE checkbox to activate the system event. > DWELL TIME : Sets the time for the alarm once the system event is detected. Manual : ●... - Page 43 MEGA-PIXEL NETWORK CAMERA Full Menu Setup Network : ● Used to trigger the event when the network connection fails. > Mark ENABLE checkbox to activate the network event. > DWELL TIME : Sets the time for the event once triggered by the network connection event. Timer Day/Night Timer...
- Page 44 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-4-2. Actions EVENT ACTIONS menu defines and sets the parameters for how to treat the various event sources. Record ● > Mark ENABLE checkbox to enable recording into the built-in storage when the event occurs.
- Page 45 MEGA-PIXEL NETWORK CAMERA Full Menu Setup E-mail ● The camera can send email messages generated by the events via SMTP (Simple Mail Transfer Protocol). > Mark ENABLE checkbox to enable emailing. • SENDER : Enter the email address as the sender. Any virtual email address like sample@sample.com can be used if the recipient can recognize it from the camera.
- Page 46 MEGA-PIXEL NETWORK CAMERA Full Menu Setup...
- Page 47 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ● FTP notification will save files on the specified FTP server. > Mark ENABLE checkbox to set the FTP server. • SERVER : Enter the IP address or host name of the specific FTP server. •...
- Page 48 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > JPEG SETTING : Configures JPEG for the FTP server. • PRE-EVENT : Sets the time & the frame rate for JPEG images to be sent to FTP before the event. • POST-EVENT : Sets the time & the frame rate for JPEG images to be sent to FTP after the event.
- Page 49 MEGA-PIXEL NETWORK CAMERA Full Menu Setup Notification Server ● > Mark ENABLE checkbox to notify the event to the notification server when it occurs. • TYPE : Selects the network protocol to connect the notification server. • SERVER URL : Input the server URL of the notification sever. To enable the audio when the event occurs, copy the URL at SETUP>AUDIO and paste it on the server URL like http://x.x.x.x/setup/audio/audio.php •...
- Page 50 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-4-3. Rules EVENT RULES menu defines and sets the parameters for what to do for the various event sources. Event Processing ● Event process lists have to be generated and can be edited for what to do when the event occurs.
- Page 51 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > FTP : Mark the checkbox to use FTP as set in SETUP>EVENT>ACTIONS>FTP when the selected event occurs. > VIDEO BOOST : Select the video stream to be boosted up. Video boost is disabled if RECORD is enabled. [ NOTE ] >...
- Page 52 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ONVIF Mapping ● Onvif mapping is provided to map the various events generated by this camera, but not defined by Onvif, to assign them to Onvif events for the Onvif compatible VMSes or NVRs. Two mappings for Motion and Alarm In are provided to be mapped and can be used by editing them.
- Page 53 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-5. System 3-5-1. Security Users ● Manages the user accounts by names, groups and authorities. > USERS : Can be added, edited or deleted.
- Page 54 MEGA-PIXEL NETWORK CAMERA Full Menu Setup HTTPS ● Selects the CONNECTION MODE. > HTTP : Transfers data without encryption. Supports a URL that only starts with "HTTP: " > HTTPS : Transfer data with encryption by Hypertext Transfer Protocol over SSL protocol. Supports a URL that only starts with "HTTPS: "...
- Page 55 MEGA-PIXEL NETWORK CAMERA Full Menu Setup To add a subnet of network addresses, these must be added in CIDR [ NOTE ] (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Contact your network administrator for more detail.
- Page 56 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-5-2. Date & Time Current Time ● Shows the current date and time. Clicking SAVE tap updates and saves the date and time with the selected time in NEW TIME. New Time ● Select one of the following server times. >...
- Page 57 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-5-3. Network TCP/IP ● > IPv4 ADDRESS : • OBTAIN IP ADRESS VIA DHCP : Gets the IP address assigned by the DHCP (Dynamic Host Configuration Protocol) server. • STATUS : ‘Allocated’ shows that the IP address is obtained from the DHCP. •...
- Page 58 MEGA-PIXEL NETWORK CAMERA Full Menu Setup...
- Page 59 MEGA-PIXEL NETWORK CAMERA Full Menu Setup > PORT : • HTTP PORT : Use a port number in the range 1024-65535. Default is 80. • HTTPS PORT : Use a port number in the range 1024-65535. Default is 443. • RTSP PORT : Use a port number in the range 1024-65535. Default is 554. >...
- Page 60 MEGA-PIXEL NETWORK CAMERA Full Menu Setup ● > START PORT & END PORT : RTP port range defines the range of the ports from which ports of the video/audio are automatically selected. This feature is useful if the camera is connected to a NAT router with manually configured port mapping. Limit the range of the ports permitted for RTP unicast/multicast by entering START PORT and END PORT.
- Page 61 MEGA-PIXEL NETWORK CAMERA Full Menu Setup UPnP ● UPnP is enabled by default so that the network camera can be automatically detected by operating systems and clients that support this protocol. > FRIENDLY NAME : Enter the name up to 32 alphanumeric characters like Model Name-MAC address.
- Page 62 MEGA-PIXEL NETWORK CAMERA Full Menu Setup 3-5-4. Language 4 languages are available to select from English, Deutsch (German), Français (French), and 한국어 (Korean). 3-5-5. Maintenance Maintain ● > RESTART : Restarts the camera without changing any settings. > RESET : Restarts and loads the factory settings but does not change IP address and PTZ settings.
- Page 63 MEGA-PIXEL NETWORK CAMERA Full Menu Setup Upgrade ● Bring the firmware file to the drop box or click the drop box to browse for the firmware file, and then click the UPGRADE button. Do not disconnect the power or network cable during firmware UPGRADE. [ CAUTION ] Setup Export ●...
-
Page 64: Eyes Principle
MEGA-PIXEL NETWORK CAMERA Full Menu Setup 4. 4 EYES PRINCIPLE > Four Eyes Principle Setting : • Mark ENABLE checkbox to enable 4 EYES PRINCIPLE function. Administrators(user authority) are authorized to ENABLE/DISABLE 4 EYES PRINCIPLE function. Two individual administrators(user authority) should approve to playback recorded data on Micro SD card for data security. -
Page 65: Troubleshooting
MEGA-PIXEL NETWORK CAMERA Troubleshooting If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware. - Page 66 MEGA-PIXEL NETWORK CAMERA Troubleshooting Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.
