Summary of Contents for Galaxy Equipment 177P60S

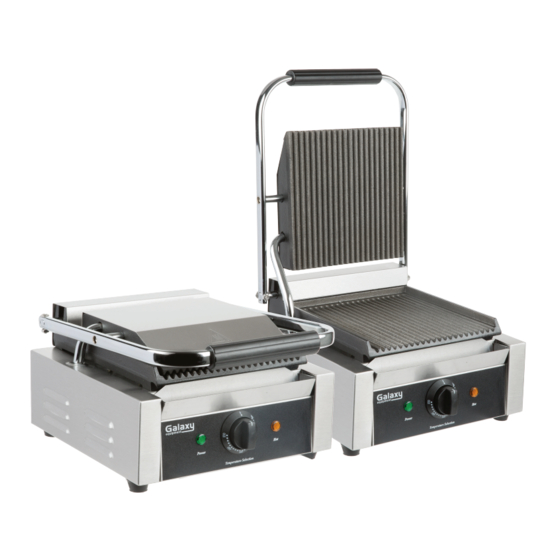

- Page 1 User Manual Panini Grills Models: 177P60S, 177P65SG, 177P68 05/2019 Please read and keep these instructions. Indoor use only.
- Page 2 User Manual Thank you for purchasing and using our Panini/Sandwich Grill. To make best use of this product and avoid damage and injury, please read this manual carefully before using the machine, and keep it handy for future reference. The Sandwich Grill design combines the advantages of stylish design, efficient construction, ease of operation and simple maintenance.
-
Page 3: Important Features
User Manual Notes 1. This product is intended for commercial use only. 2. Do not disassemble or modify the machine. 3. Lift the upper grill assembly smoothly; jerking it up may cause damage or injury. 4. Before cleaning, disconnect power and allow machine to cool. 5. -
Page 4: Specifications
User Manual Specifications Single Panini Grill Model Number P60S, P65SG, P68 Voltage 120V, 60 Hz Power 1.75 Kw Temp. Controls Temp. Range 120 F - 570 F Upper Grill (overall) 8 1/2"x 8 1/2" Lower Grill 8 1/2"x 8 1/2" Overall Size 17"x 12"x 10"... -
Page 5: Cleaning And Maintenance
User Manual Cleaning and Maintenance 1. Disconnect machine before cleaning and allow to cool. 2. Use only a damp towel with non-corrosive cleaner. Do not immerse or flush with water. 3. Wipe down outside surface to remove any soil. 4. Store in a dry clean area when not in use. Attack tough grease, oil, and carbon with this ready to use decarbonizer and degreaser. -
Page 6: Troubleshooting
User Manual Troubleshooting Problem Possible Cause Action Grill plates do not heat even though power Defective controller Replace controller indicators are lit. Defective heater(s) Replace heater(s) Temperature can not be controlled. Defective controller Replace controller Heating appears normal but power indicators Defective indicator(s) Replace are not lit. - Page 7 User Manual Parts Key Single Grill Diagram # and Part Name Replacement Part Item # 1. Green "Power" Light 177PLIGHTGRN (P60S, P65SG, P68, P78, P75SG, P70S) 2. Temperature Control Knob 177PKNOB (P60S, P65SG, P68, P78, P75SG, P70S) 3. Screw M4x6 4.
- Page 8 User Manual Diagram # and Part Name Replacement Part Item # 15. Slotted Screw M4x8 16. Spring Pin 17. Ground Screw M6x15 18. Power Cord 177FCORD (P60S, P65SG, P68, P78, P75SG, P70S) 19. Bottom Plate 177P7BTMFLT (flat), 177P7BTMGRV (grooved), (P78, P75SG, P70S) 20.
- Page 9 User Manual User Manual www.AvantcoEquipment.com...
- Page 10 User Manual User Manual www.AvantcoEquipment.com...
- Page 11 User Manual Equipment Limited Warranty Galaxy warrants its equipment to be free from defects in material and workmanship for a period of 6 months. This is the sole and exclusive warranty made by Galaxy covering your Galaxy brand equipment. A claim under this warranty must be made within 6 months from the date of purchase of the equipment.
