Omron Automotive Electronics OKA-210W User Manual

Table of Contents

Download this manual

User Manual

1. Constitution of the Unit Assy-Wireless Charging ( WPC ) for vehicle

Wireless Charger Unit, it's possible to charge the receiver based upon WPC( Wireless Power Consortium ) Standard.

WPC detects the receiver based upon the WPC standard being put on the surface of charge, and begins to charge it.

WPC detects conditions of the receiver and controls the transmission electric power by the state of the battery of it.

When the receiver is removed,WPC will suspend the transmission electric power.

When the receiver is full charge, WPC will suspend the transmission electric power.

WPC can recognize a foreign object and suspend the transmission electric power.

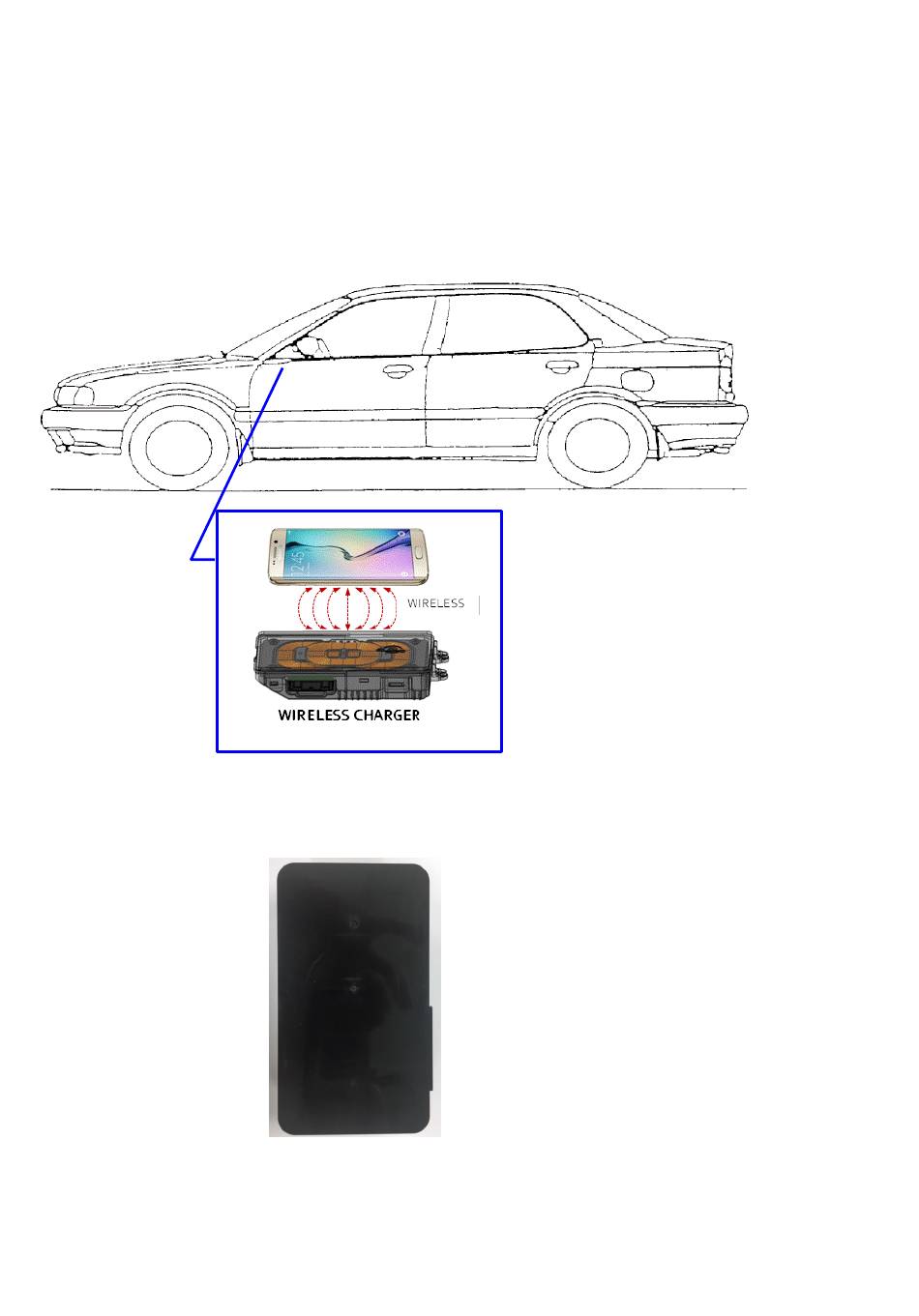

◎ Unit Assy - Wireless Charging ( OMRON KOREA : OKA-210W )

You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless Charger Unit.

※ Wireless Charger Unit is abbreviated as WPC.

Model : OKA-210W

Table of Contents

Do you have a question about the OKA-210W and is the answer not in the manual?

Page 1 WPC can recognize a foreign object and suspend the transmission electric power. ◎ Unit Assy - Wireless Charging ( OMRON KOREA : OKA-210W ) You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless Charger Unit.
Page 2 2. Specification 2.1 CONTROL PART 2.1.1 CPU SPC560B40L3 Type Manufacturer : ST Corporation 512 Kbytes 16 bytes EEPROM 32 bytes Clock frequency 16 MHz Package 100pin SSOP 2.1.2 Others Dimension 39.1mm×70.9mm×17.0mm Weigh about 290 g Battery Car Battery ( DC 12 V ) Operating Voltage, Current DC 12V, 2.0A 112.5 KHz±2.5KHz...
Page 3 3.Features 3.1 Charging Function WPC possesses the charge function of 3 coils type based upon WPC Ver 1.2.3. It controls the resonance voltage according to the request from the receiver. It doesn’t change the frequency of the resonance voltage. It judges whether there is a thing on the charge surface by the different amount of the resonance voltage and detects the receiver. 3.2 Foreign Objection Detection WPC monitors the power loss from the resonance voltage and current inside it.
