User Manual

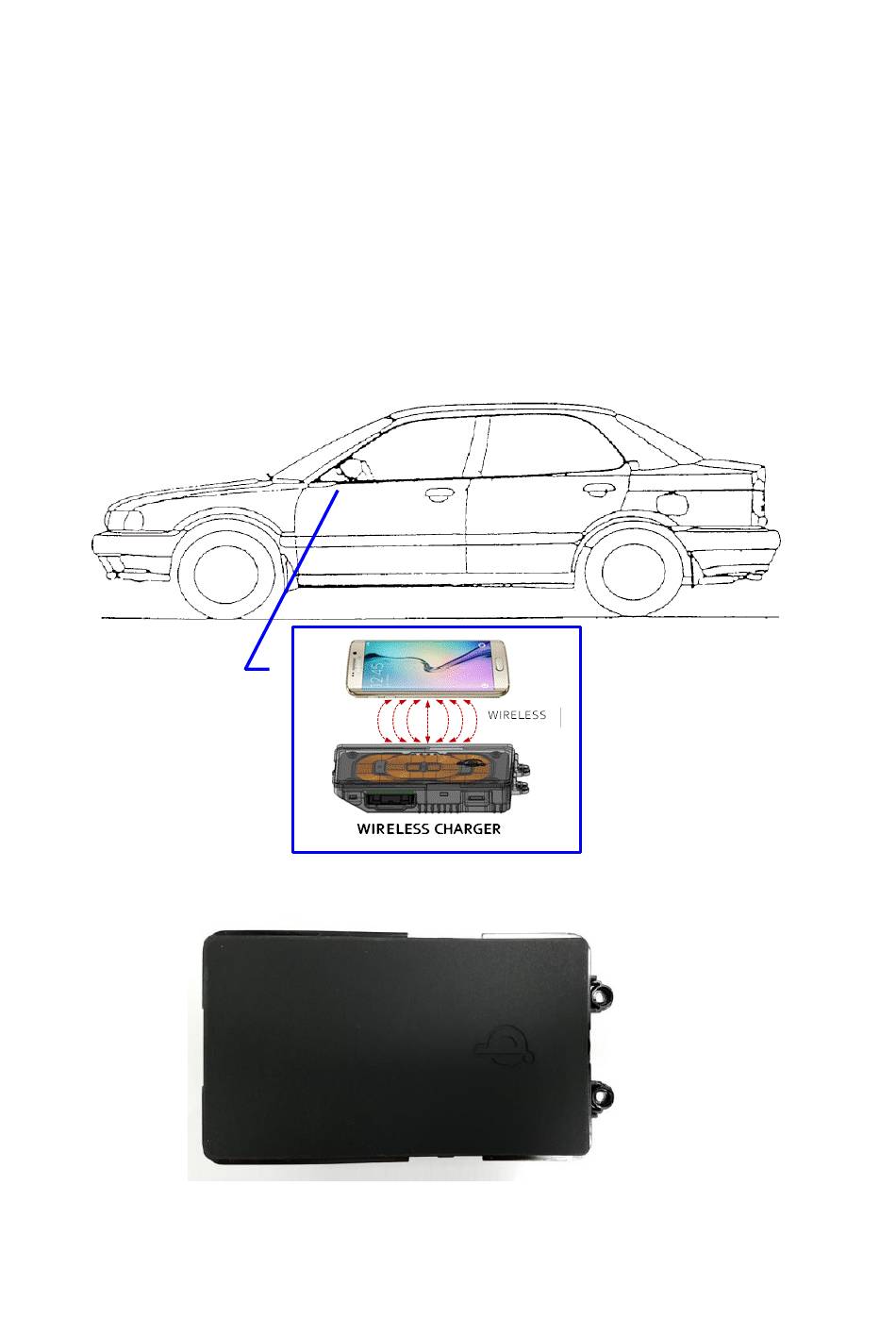

1. Constitution of the Unit Assy-Wireless Charging ( WPC ) for vehicle
Wireless Charger Unit, it's possible to charge the receiver based upon WPC( Wireless Power Consortium )
Standard.
WPC detects the receiver based upon the WPC standard being put on the surface of charge, and begins to
charge it.
WPC detects conditions of the receiver and controls the transmission electric power by the state of the battery of
it.
When the receiver is removed,WPC will suspend the transmission electric power.
When the receiver is full charge, WPC will suspend the transmission electric power.

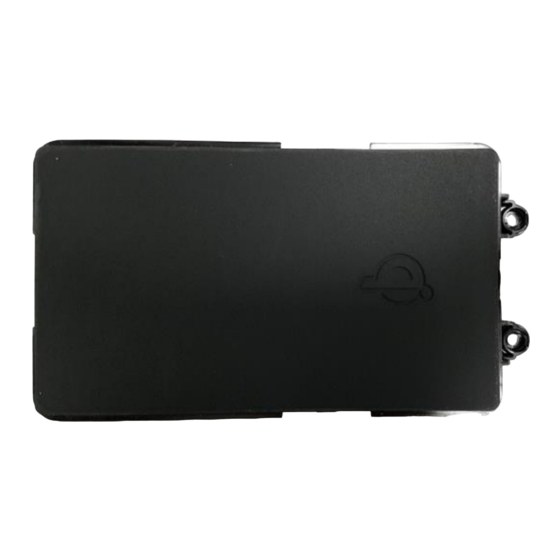

2. Unit Assy - Wireless Charging ( OMRON KOREA : OKA-105W )
You can charger a mobile phone or the battery pack and the like to Qi-compliant Wireless Charger Unit.
※ Wireless Charger Unit is abbreviated as WPC.
Model : OKA-105W
