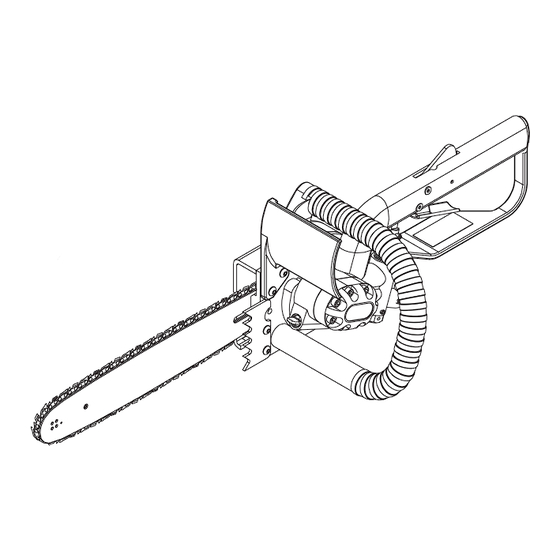

Greenlee hcs513 chain saw: specifications
Hide thumbs Also See for Fairmont HCS513:

Advertisement

SPECIFICATIONS AND PARTS
Serial Codes FZH, GAJ, GAK, GAL, FZJ, GAM, and GAN
99931842 REV 4
Chain Saws
HCS513 (49600)
HPS513 (49565)
HCS516 (49601)
HCS520 (49602)
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
© 2007 Greenlee Textron Inc.
HCS816 (49566)
HCS820 (49603)
HCS824 (49604)
12/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fairmont HCS513 and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenlee Fairmont HCS513

  • Page 1 Serial Codes FZH, GAJ, GAK, GAL, FZJ, GAM, and GAN Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 99931842 REV 4 Chain Saws HCS816 (49566) HCS820 (49603) HCS824 (49604) © 2007 Greenlee Textron Inc. 12/07...
  • Page 2: Exploded View

    Chain Saws Exploded View Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 3: Parts List

    55137 90551370 Standoff... 2 47 55101 90551010 Rim sprocket, .325" pitch (HCS513, HPS513, HCS516, and HCS520) ..1 55103 90551036 Rim Sprocket, 3/8" Pitch (HCS816, HCS820, and HCS824) ..1 Greenlee / A Textron Company UPC No. Part Key 78-3310- Description 48 43309 50433091 Washer, flat, .530" x 1.50" x .050" ... 1 49 41493 50414931 Nut, hex, 1/2–20, Lock ... 1...
  • Page 4: Other Publications

    HPS513 and HCS513 ... 3.9 kg (8.5 lb) HCS516 ... 4.0 kg (8.8 lb) HCS520 ... 4.4 kg (9.8 lb) HCS816 ... 4.3 kg (9.5 lb) HCS820 ... 4.6 kg (10.2 lb) HCS824 ... 4.9 kg (10.9 lb) Length HPS513... 652 mm (25.68") HCS513, HCS516 and HCS520 ..730 mm (28.75") HCS816, HCS820 and HCS824 ..806 mm (31.75") Width ..254 mm (10") Height ..224 mm (8.5") All specifications are nominal and may change as design improvements occur. Greenlee Textron shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 5: Hydraulic Schematic

    Pressure Relief Setting ..138 Bar (2000 psi) Back Pressure (Maximum*) ..13.8 Bar (200 psi) * 13.8 bar (200 psi) is the maximum agreed standard back pressure for the HTMA (Hydraulic Tool Manufacturers Association). Fairmont tool will operate satisfactorily at this standard. Maximum hydraulic fluid temperature must not exceed 60° C (140° F). A sufficient oil cooling capacity is needed to limit the hydraulic fluid temperature. Hydraulic flow must not exceed 30.3 l/min (8 gpm). Install a flow meter in the return line to measure the rate of hydraulic flow before using the tool. Pressure relief valve setting must not exceed 138 bar (2000 psi) at your tool’s maximum flow. Locate the pressure relief valve in the supply circuit to limit excessive hydraulic pressure to the tool. Greenlee / A Textron Company Hydraulic Schematic FILTER (10 MICRON) RELIEF COOLER VALVE 138 Bar RESERVOIR (2000 psi) CONTROL VALVE FLOW METER...
  • Page 6 Fax: Canada 800-435-0786 Fax: International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 • An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com 800-451-2632 815-397-1865 800-524-2853 Printed in USA...
