Features
•
Heating thermostat
•
2*AAA battery power supply
•
5+1+1 programmable
•
Surface mounting.
•
RF 868Mhz
•
Wireless Distance: 120m in open space
•
CE, ROHS，RED approved
Technical Data
Power Supply
Receiver Load current
Set Point Range
Ambient
Relative Humidity
Display and buttons
Room Temp.
Heating Icon

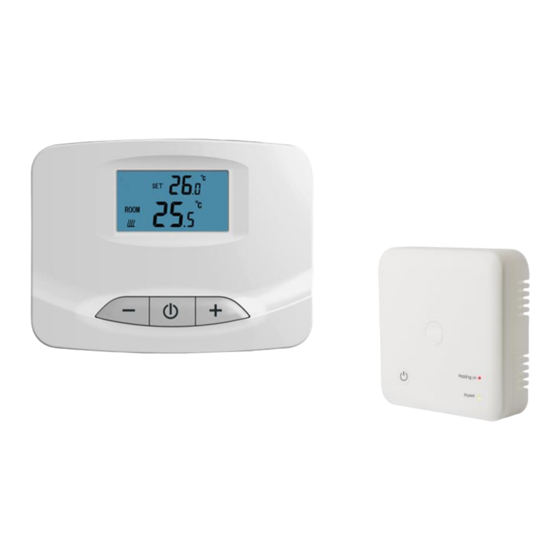

Heating Room Thermostat
- 2*AAA battery
- Max 10A
-
5~30℃
-
0~50℃
- 85%
Weekday
Clock
PRG Button
Mode Select Button
On/off Button
Backlight
-
White
Sensor
- NTC 10K
Accuracy
- ± 1℃ (step control by +0.5℃)
Protection Class - IP30
Housing
- ABS + PC
Set Temp.
Up Button
Down Button
THERMS-THERMALWP-WL
Programmable mode
Manual mode
Current PRG period
Advertisement
Table of Contents
Related Manuals for Well THERMS-THERMALWP-WL
Summary of Contents for Well THERMS-THERMALWP-WL
- Page 1 Heating Room Thermostat THERMS-THERMALWP-WL Features • Heating thermostat • 2*AAA battery power supply • 5+1+1 programmable • Surface mounting. • RF 868Mhz • Wireless Distance: 120m in open space • CE, ROHS，RED approved Technical Data Power Supply - 2*AAA battery...
- Page 2 Heating Room Thermostat THERMS-THERMALWP-WL Clock & weekday setting Press and hold M button for 3s, set the clock and weekday by pressing button, each press of M button will go to next item setting. Menu Description Clock setting- Minute Clock setting- Hour...
- Page 3 Heating Room Thermostat THERMS-THERMALWP-WL 1) Long press the code pairing button on the receiver until LED 1 is flickering quickly. 2) Turn off thermostat, and long press M button until the code shows on the screen, then press M button again.
- Page 4 Heating Room Thermostat THERMS-THERMALWP-WL Installation (1) Mounting Method: (2) Put on desk Receiver Installation: Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
