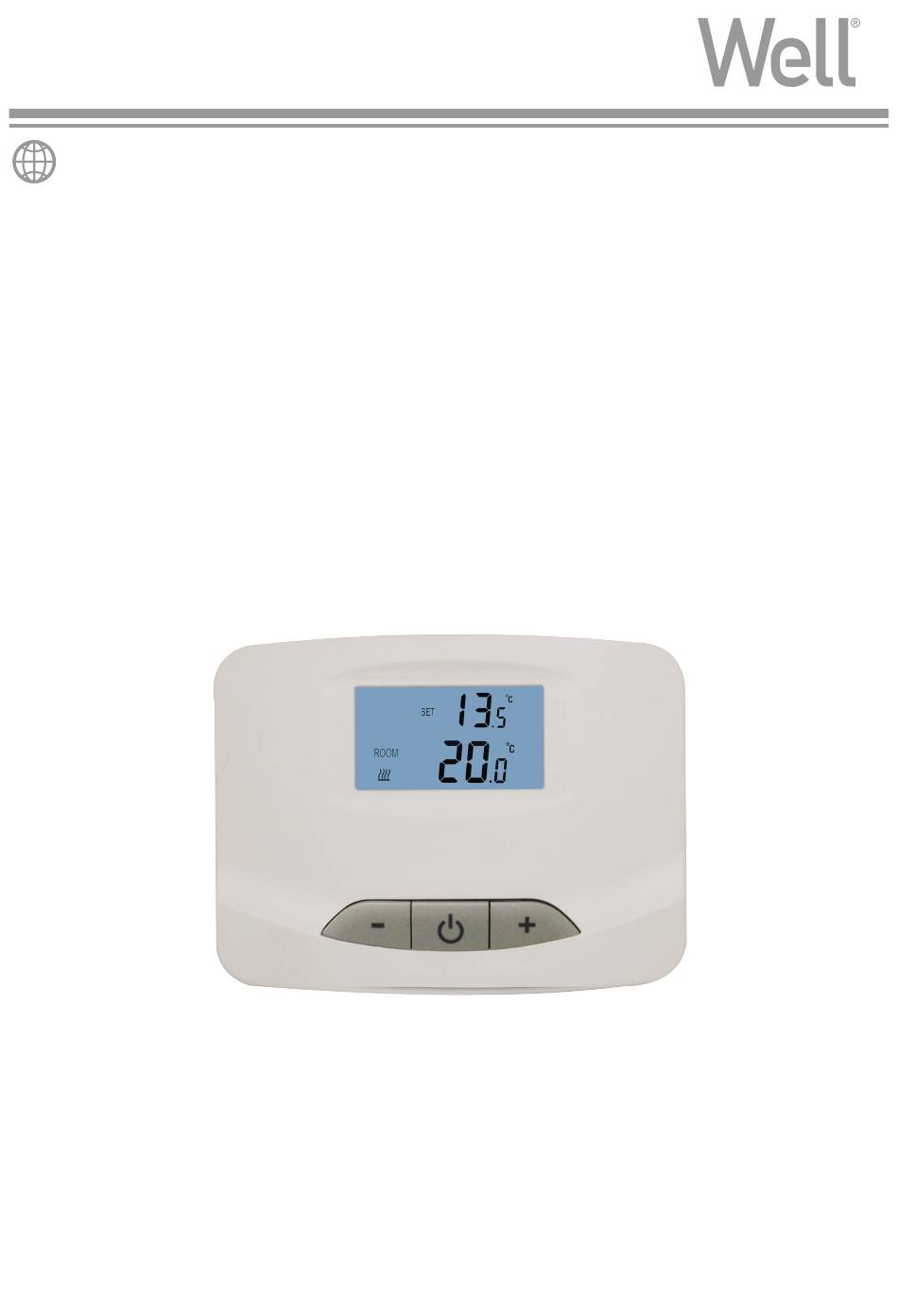

- Page 1 THERMS- THERMAL-WL English Romanian Hungarian (01-04) (05-08) (09-11) DIGITAL HEATING THERMOSTAT S.C. VITACOM ELECTRONICS S.R.L.
-
Page 2: Technical Data

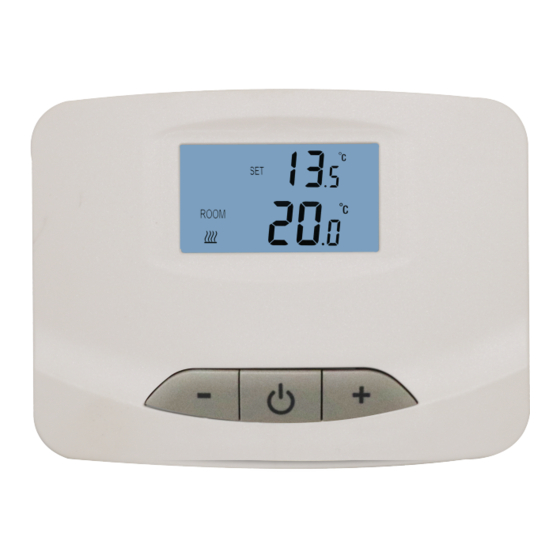

THERMS- THERMAL-WL Features ● Heating thermostat ● 2*AAA battery power supply ● Attractive modern styling ● Surface mounting ● CE, ROHS approved Technical Data Power Supply 2*AAA battery Backlight White Load current 0.5A Sensor NTC 10K Set Point Range 5~30°C Accuracy ±... -
Page 3: Display And Buttons
THERMS- THERMAL-WL Display and buttons Set Temp. Room Temp. Heating Icon Down Button Up Button On/off Button Temperature Calibration Range: -8 °C~8°C Press on/off button to turn off thermostat, then press on/off button for 3 seconds, set the value by pressing + or – button. Wiring Diagram AC230V English... -
Page 4: Installation
THERMS- THERMAL-WL Dimensions 26.2 Installation a. Open the thermostat b. Fix the base on wall with provided screws c.Install Battery d. Close the thermostat English 【 】... - Page 5 THERMS- THERMAL-WL Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health. Submitting waste electrical and electronic equipment to special collection centers makes the waste to be recycled properly and protecting the environment.
-
Page 6: Date Tehnice
THERMS- THERMAL-WL Caracteristici importante ● Termostat pentru încălzire ● 2x baterie AAA ● Design modern, atractiv ● Montare pe perete sau masă ● Cerificare CE, ROHS Date tehnice Alimentare 2* baterii AAA Iluminare fundal Curent de cuplare 0.5A Senzor NTC 10K Domeniu reglare temperatură... - Page 7 THERMS- THERMAL-WL Afișaj și butoane Setare temperatură Temperatură cameră Pictogramă încălzire Buton scădere Buton creștere Pornire/oprire Calibrare temperatură Gamă: -8 °C~8°C Apăsați butonul de pornire / oprire pentru a opri termostatul, apoi apăsați butonul de pornire / oprire timp de 3 secunde, setați valoarea apăsând butoanele + sau -.
- Page 8 THERMS- THERMAL-WL Dimensiuni Transmițător 26.2 Instalare a.Deschideți termostatul b.Montați suportul pe perete cu șuruburile c.Introduceți bateriile d. Închideți termostatul Romanian 【 】...
- Page 9 THERMS- THERMAL-WL Deseurile de echipamente electrice si electronice sunt o categorie speciala de deseuri , colectarea, depozitarea, tratarea si reciclarea sunt importante deoarece se pot evita poluari ale mediului cu gaze de efect de sera sau metale grele,si care pot fi daunatoare sanatatii. Depunand la centrele speciale de colectare a DEEE, va debarasati responsabil de aceste deseuri, va asigurati ca acestea ajung sa fie reciclate corect si totodata protejati natura.
-
Page 10: Műszaki Adatok
THERMS- THERMAL-WL Hőmérséklet beállítás Szoba hőmérséklet Fűtés ikon Lefele gomb Felfele gomb Felfele gomb Főbb jellemzők ● Fűtő termosztát ● Táplálás: 2x AAA alkáli elem ● Vonzó modern kivitelezés ● Falra szerelhető ● CE, ROHS engedély Műszaki adatok Táplálás 2*AAA elem Háttérvílagítás fehér Terhelési áramerősség... -
Page 11: Bekötési Rajz
THERMS- THERMAL-WL Hőmérséklet kalibrálás Skála: -8 °C~8°C Nyomja meg a be / ki gombot a termosztát kikapcsolásához, majd nyomja meg a be / ki gombot 3 másodpercig, és állítsa be az értéket a + vagy - gomb megnyomásával. Bekötési rajz AC230V Méretek 26.2... - Page 12 THERMS- THERMAL-WL Telepítés a.Nyissa ki a termosztátot b.Rögzítse a tartót a falra a mellékelt csavarokkal c.Telepítse az elemeket d. Zárja vissza a termosztátot Ha a terméken ezt az ábrát látja, az azt jelenti, hogy a terméket nem szabad a háztartási hulladék közé dobni. Köteles a rossz háztartási gépeket a háztartási hulladéktól elkülönítve gyűjteni.
