- Page 1 BOXCHIP S900A RADIO S900A UHF: 400-470mhz S900A VHF: 136-174mhz Quick Start Guide...

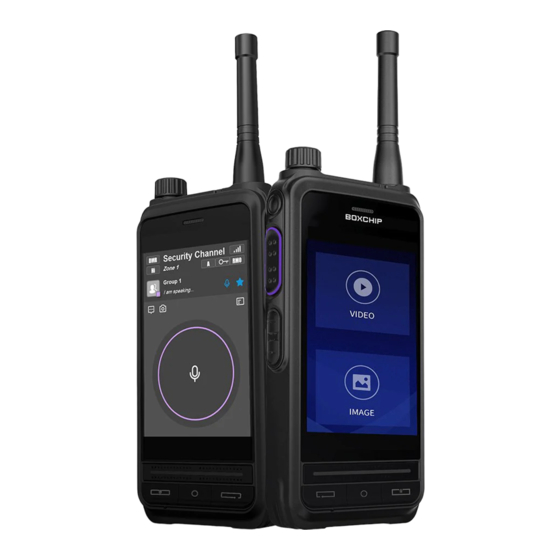

- Page 2 BOXCHIP S900A RADIO Thank you for purchasing the BOXCHIP S900A radio. This quick start guide will talk you through the basic features and functions of your new S900A radio. BOXCHIP S900A Overview Standard Included accessories: 1x Antenna (Model Dependent) ...
- Page 3 S900B: Short Antenna S900 Series Antenna Installation Installing the BOXCHIP S900A antenna is as simple as screwing it on. Simply place the antenna on top of the SMA connector and screw clockwise. Please Note: Once you start to feel resistance stop - do not over tighten.
- Page 4 Dual SIM Card and Memory Card Installation Step 1: Remove the battery if pre- installed. (Follow the battery installation and removal procedure below if you are unsure how to do this) Step 2: Locate the black silicone cover which is located in the middle of the device.
-
Page 5: Battery Installation / Removal
Battery Installation / Removal Battery Installation Procedure Step 1: Slide the top tabs of the battery into the corresponding indents on the back of the radio housing Step 2: Press down on the lower area of the battery to lock it into place. Please Note: You will hear an audible click as it locks in place. - Page 6 Step 1: Place belt clip on top of the 2 corresponding belt clip installation holes at the rear of the device (just below the camera and BOXCHIP logo). Step 2: Screw both screws in but do not over tighten. Dock Charger (Optional Accessory) Step 1: Plug the appropriate USB C cable into the back of the dock and into the USB wall charging socket.
- Page 7 Emergency Quick Blinking Blue BOXCHIP BiMR BiMR is BOXCHIP's powerful proprietary DMR and Analogue Software that allows you to receive or transmit utilising the devices built in VHF or UHF radio. Configuring the BiMR / BPS Software To configure your new radio simply download and install the BPS (BOXCHIP Programming Software) on your home computer or mac.
- Page 8 TLK（talk around mode) encryption time slot A, time slot B(only for DMR) What PoC Software can be used with BOXCHIP Devices? For the very best BOXCHIP PoC experience we can confirm full compatibility with the following PoC providers: Eschat Tassta ...
- Page 9 More Information If you require a little more information why not check out our online guides and videos or join the thriving BOXCHIP community - which is free to join!
- Page 10 BO X C H I P I S A L E A D I N G G L O B A L MA N U F A C T U R E R O F I N T E L L I G E N T C O M M U N I C A T I O N S .
