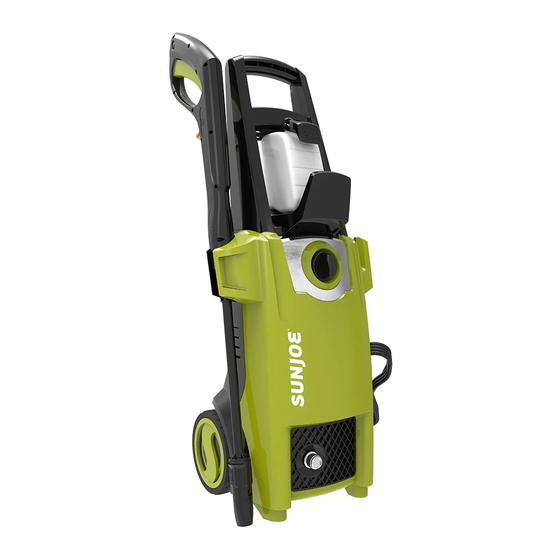

Electric pressure washer

Advertisement

Quick Links

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory, or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
R
ELECTRIC PRESSURE WASHER
Model SPX2600
+ Sun Joe
dealer or
®
®
customer service center at
®
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a plugged-
in machine with your finger on the trigger. Make sure the
switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear,
snug-fitting clothing, protective gloves, and hearing
and head protection.
• Check the water temperature – This pressure washer
is not meant to pump hot water. NEVER connect it to a
hot water supply as it will significantly reduce the life of
the pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – GFCI protection
should be provided on the circuits or outlets to be used
for this pressure washer. Receptacles are available having
built-in GFCI protection and may be used for this measure
of safety.
• Inspect electrical cables – The insulation of the power
cord should be perfectly intact. If the power cord is
damaged or shows any signs of wear or tear, do not use the
pressure washer. Contact your authorized Snow Joe
Sun Joe
dealer or call the Snow Joe
®
service center at 1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use only with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
other people unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SPX2600-880E-M
+
®
+ Sun Joe
customer
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sunjoe SPX2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE sunjoe SPX2600

  • Page 1 ® ® ® safety precautions should always be followed to reduce the service center at 1-866-SNOWJOE (1-866-766-9563). risk of fire, electric shock, and personal injury. These include: • Know your product – Know how to stop the machine and WARNING! Do not use this appliance without reading bleed pressure quickly.
  • Page 2: Electrical Safety

    ® ® ® power washer must not be used by children or + Sun Joe customer service center at 1-866-SNOWJOE ® untrained personnel. (1-866-766-9563). • To ensure appliance safety, use only original replacement The following should be observed when connecting the...
  • Page 3: Risk Of Electrocution

    If the appliance plug does not fit fully into the outlet, Table 1. Method of Securing Extension Cord reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the Cord set Appliance cord plug still does not fit, contact a qualified electrician to...
  • Page 4: Product Description

    Product Description Purpose • This high-pressure electric power washer is intended for residential use only. It is designed for medium-to-heavy duty cleaning jobs on cars, boats, motorcycles, RV’s, ATV’s, trailers, decks, barbecues, siding, patio furniture, lawn equipment, and more. Areas of application •...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the WARNING! Electrical shock hazard.
  • Page 6: Technical Data

    Know Your Electric Pressure Washer Read the owner’s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    V-shaped groove to secure ® ® it in place (Fig. 3). 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging Fig. 2 material until you are ready to use your new electric pressure washer.
  • Page 8 4. Run the PVC detergent tube through one of the holes 7. Connect the silver end of the high-pressure hose to the located at the top of the handle and connect the tube to trigger gun and twist to secure the connection (Fig. 7). the detergent connection (Fig.
  • Page 9 12. Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the pressure washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (REAR) (Fig. 12). Garden hose This end to (male end)
  • Page 10: Working With Detergents

    4. Release the safety lock, then press the trigger for a few seconds until the water flow is steady. Operating the Pressure adjustment knob pressure washer in this manner will allow air to escape and discharge residual pressure in the hose (Figs. 14 and 15). Fig.
  • Page 11 7. Rinse with clean water under high pressure. When working on a vertical surface, rinse from the bottom up, then rinse Fig. 17 from the top down to avoid streaking. Hold the nozzle 6-8 inches away from the work surface at a 45° angle. 8.
  • Page 12: Shutting Down

    Shutting down Fig. 20 1. Turn the switch to the OFF (0) position and unplug the power cord from the outlet. 2. Turn off the water source. 3. Hold the trigger to release water pressure. Locking tab 4. Disconnect the garden hose from the water inlet on the unit.
  • Page 13: Circuit Diagram

    • Do not store near a furnace or other sources of heat that may dry out the pump seals. Fig. 21 • Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter. WARNING! Before reusing, completely flush the unit with clear water.
  • Page 14: Service & Support

    SPX2006 electric pressure washer requires ® service or maintenance, please call the Snow Joe ® Sun Joe customer service center at 1-866-SNOWJOE ® (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit.
  • Page 15: Troubleshooting

    • Pump seals worn out. • Please call the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Machine stops • Fuse has blown. • Replace fuse. Switch off other machines using the same circuit.
  • Page 16 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
  • Page 21 sunjoe.com...
