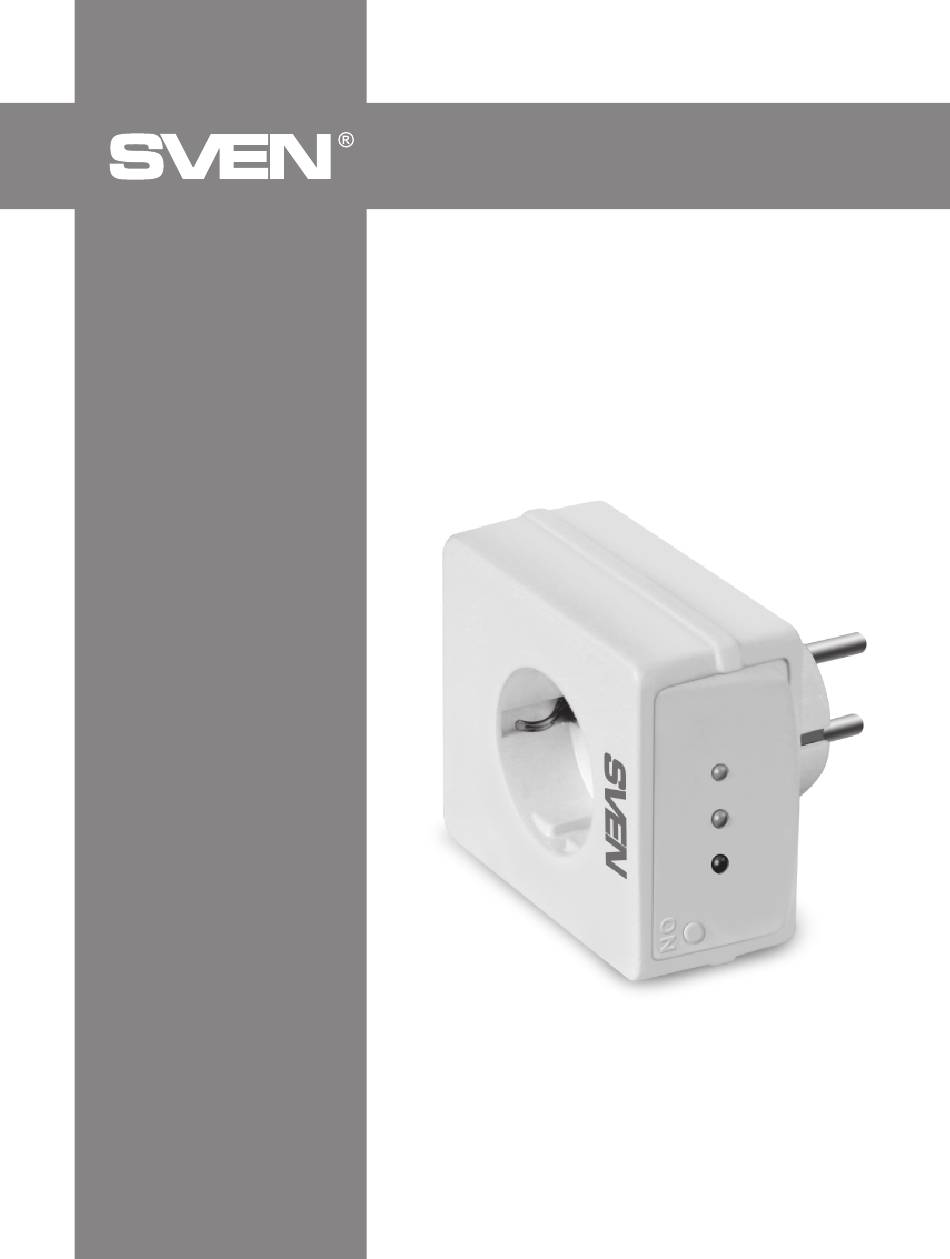

  • Page 1 Voltage Relay USER’S MANUAL RN-15 www.sven.fi...
  • Page 2 Voltage Relay Congratulations on your purchase of the SVEN voltage relay! COPYRIGHT © 2018. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
  • Page 3 RN-15 User’s Manual 1. PRECAUTIONS • Before using the device, please carefully read the following User’s Manual and save it for the whole operation period. • Before connecting the device to the power supply network, keep it within two hours in operating conditions.
  • Page 4 • Protective grounding contacts, fusible safety device 15А 5. TECHNICAL DESCRIPTION RN-15 voltage relay presents a device with an electronic circuit with mic- roprocessor control assembled in the case with a wall plug and socket. RN-15 voltage relay has fixed settings and does not need programming.
  • Page 5 RN-15 User’s Manual Design description a Indicator "low" entrance voltage range b Indicator "norm" entrance voltage range c Indicator "high" entrance voltage range d ON: button of a force connecting of loading e Wall plug to connect the voltage relay to 230 V / 50 Hz power supply...
  • Page 6 Voltage Relay 6. CONNECTION RN-15 voltage relay is connected to a standard socket of 230 V / 50 Hz power supply network. The socket must be rated at the current 16 А. Protected devices are connected to the output socket of RN-15.
  • Page 7 Coulor Notes: • Technical specifications given in this table are supplemental infor- mation and cannot give occasion to claims. • Technical specifications and package contents are subject to chan- ge without notice due to the improvement of SVEN production.
  • Page 8 Voltage Relay Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolah- dentie, Kotka, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN RN-15 Scandinavia Ltd. Finland.
