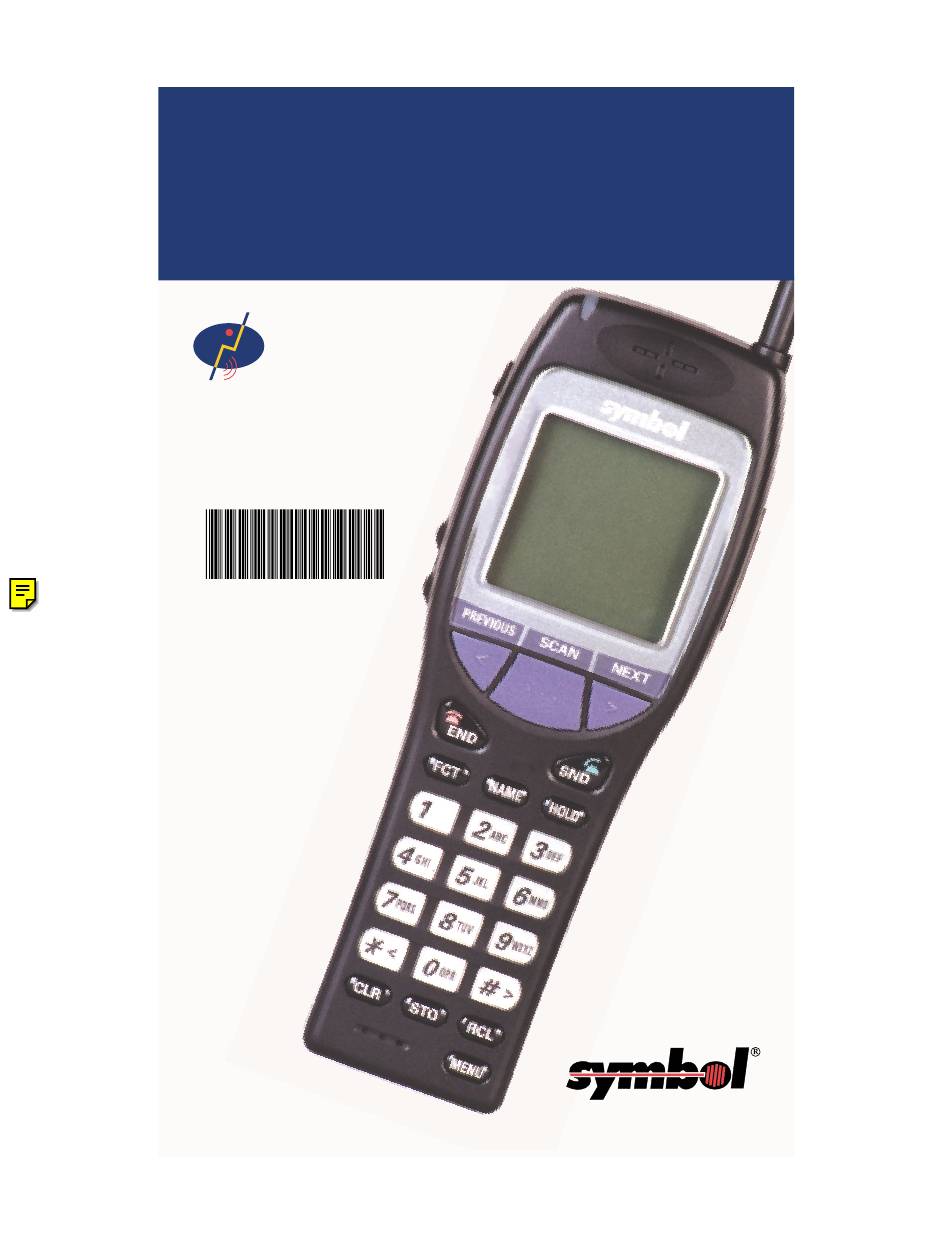

A Spectrum24
Wireless LAN
Solution
Copyright © 1999 by
Symbol Technologies, Inc.
All rights reserved.
Symbol, Spectrum24 and
NetVision are registered trade-
marks of Symbol Technologies, Inc.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
Telephone:(800)SCAN234
(516)738-2400, TLX:6711519
70-20620-01
NetVision
Data Phone
User Guide
www.symbol.com
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetVision DP4046 and is the answer not in the manual?

Questions and answers

Related Manuals for Symbol NetVision DP4046

Summary of Contents for Symbol NetVision DP4046

  • Page 1 Wireless LAN Solution User Guide Copyright © 1999 by Symbol Technologies, Inc. All rights reserved. Symbol, Spectrum24 and NetVision are registered trade- marks of Symbol Technologies, Inc. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 Telephone:(800)SCAN234 (516)738-2400, TLX:6711519 70-20620-01 www.symbol.com...
  • Page 2 Do no into sc Call Indicator Mini-Headset Jack For hands-free use. Volume Buttons Adjusts the current call volume. Previous/Next Keys Tabs between application fields. END Key Refuses or ends a call. Powers off the phone. Returns to a previous menu. Ends data collection.
  • Page 3 NetVision Data Phone ® Feature Overview ot stare Laser Scanner High Gain Antenna. scanner! The antenna does not extend. Earpiece Data Phone Display Displays phone status, menu options, messages and application prompts. Serial Port Connector For network administration use. Scan Key Activates the scanner for data collection.
  • Page 4 Use only approved batteries and charging accessories with the NetVision Data Phone. Do not charge the battery in a charger other than a Symbol NetVision Data Phone Charger. Battery Swapping NetVision Data Phone users can swap the battery during data operations when the phone is idle.

  • Page 5: Operating The Phone

    This allows you to pick up and use any Data Phone. - As a personal phone, the system administrator preloads the Data Phone for one user. The Setup user profile is reserved for the network administrator. Support and Symbol user profiles are reserved for Symbol Technologies support personnel.

  • Page 6: Setting The Call Volume

    Receiving Calls with the NetVision Data Phone The NetVision Data Phone provides user-configurable features to determine how a call is answered. The caller ID feature allows you to identify callers before answering the call. You can select from three answering modes: - Auto-Answering: automatically answers the call after the first ring.
  • Page 7 Extension and Outside Number Dialing If the network is configured, the Data Phone can make calls to other Data Phones and wired phones on the network, and can send and receive outside phone calls. - To call to an extension, dial the extension number and press SND. - To call an outside number, dial the network-specific code to access the outside line, then dial the number along with required long distance access codes.

  • Page 8: Intercom Calling

    Intercom Calling This feature allows NetVision Phone users to connect to users of a group. NetVision Data Phone users can belong to as many as 10 intercom groups. The network administrator manages access levels to the intercom groups. You can communicate with only one intercom group at a time.

  • Page 9: Data Collection Features

    Data Collection Features The NetVision Data Phone can collect data for many different applications. The type of data collected depends on the network configuration. You can enter data by keypad entry or using the built-in, bar code scanner. To scan a bar code: 1.
  • Page 10 Manually Entering Data The NetVision Data Phone performs data entry best using the scanner. However, you can enter alphanumeric characters using the keypad. To enter alphanumeric characters, press and hold FCT, then press a key- pad key to display a list of characters associated with that key. Navigating through Data Collection Applications This feature maps the Data Phone keypad to functions different than when operating during a call.
  • Page 11 Data Phone Ring Styles This feature allows NetVision Data Phone users to select different rings to announce incoming phone and intercom calls. You can also add the vibrator to the ring selection. Tone 1 One-second beep Tone 2 Two short beeps Tone 3 A half-second beep Tone 4...
  • Page 12 RF Devices Symbol RF products are designed to be compliant with the rules and regulations in the locations into which they are sold and will be labeled as required. The majority of Symbol RF devices are type approved and do not require the user to obtain license or authorization before using the equipment.
