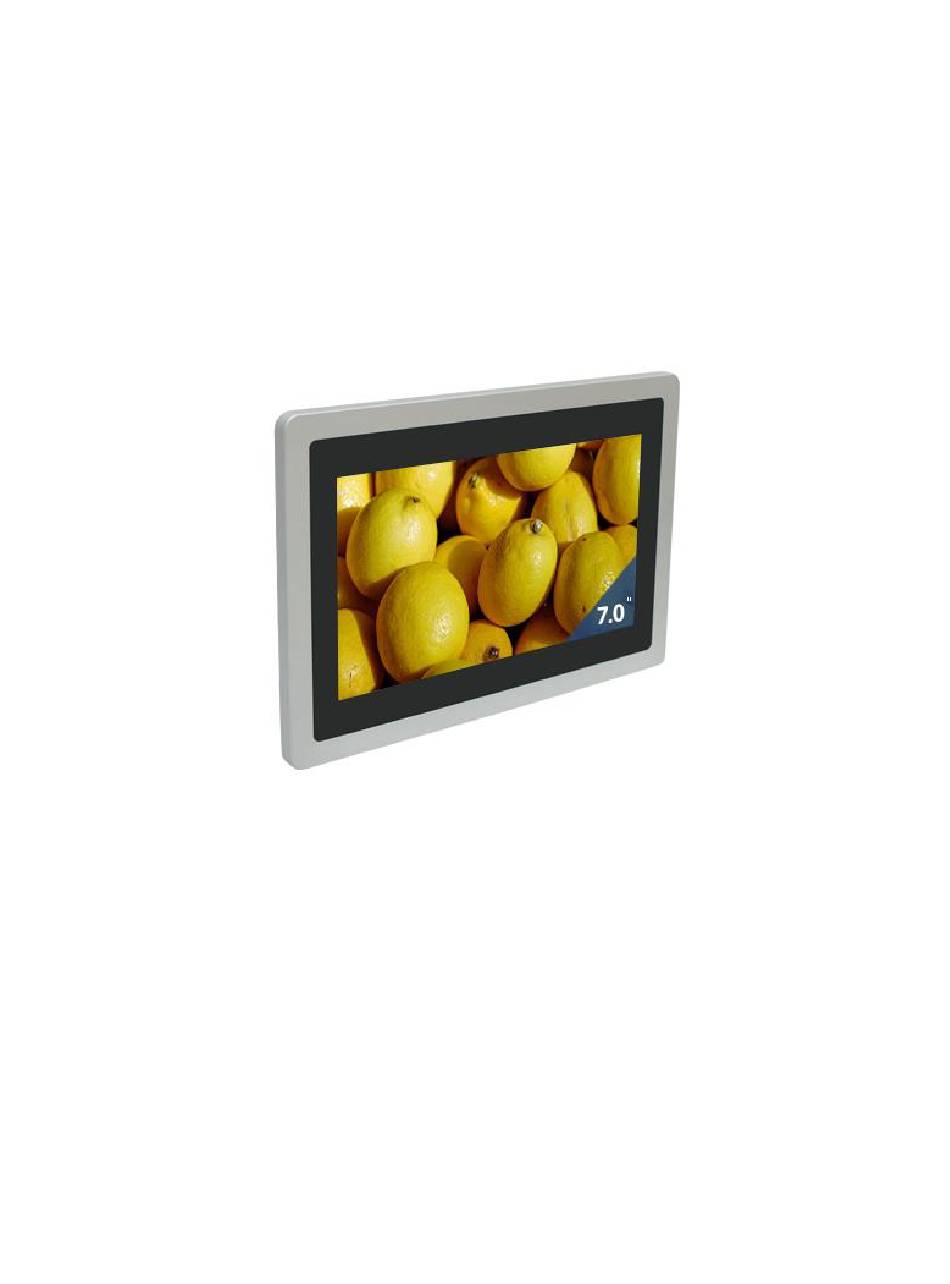

- Page 1 TEP-0700-IMX7 MODULAR HMI PRODUCT MANUAL (TEP-0700-IMX7) VER. 1.01 March 11, 2019...
- Page 2 TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 REVISION HISTORY Revision Date Originator Notes 1.00 July 30, 2018 TechNexion First public release 1.01 March 11, 2019 TechNexion Ordering table update Page 2 of 26...
-
Page 3: Table Of Contents
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 TABLE OF CONTENTS 1. Introduction ............................... 4 1.1. General Care and Maintenance ......................4 2. TEP-0700-IMX7 Product Overview ......................5 2.1. Functional Block Diagram ........................5 2.2. Dimensions ............................6 2.3. -
Page 4: Introduction
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 1. Introduction 1.1. General Care and Maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you. •... -
Page 5: Tep-0700-Imx7 Product Overview
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 2. TEP-0700-IMX7 Product Overview 2.1. Functional Block Diagram Page 5 of 26... -
Page 6: Dimensions
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 2.2. Dimensions The following figure shows the TEP-0700-IMX7 dimensions (unit: mm): Page 6 of 26... -
Page 7: Device Cut-Out Dimensions For Mounting Though A Panel
2.3. Device Cut-out Dimensions For Mounting Though a Panel The TEP-0700-IMX7 can be mounted on the front or the back of the panel. In order to mount it from the front, a nominal rectangular cutout must be made in the panel. The following drawing shows the... -
Page 8: External Connectors
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 2.4. External Connectors The TEP-0700-IMX7 has a number of external connectors. Rear view: 16 15 12 13 External Connectors: Description Description RS-XXX (Serial Port) connector USB OTG (Type-C) connector CANBus (CAN Bus) connector... - Page 9 TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 Bottom view: Right side view: 7 8 9 11 External Connectors: Description Description RS-XXX (Serial Port) connector USB OTG (Type-C) connector CANBus (CAN Bus) connector MicroSD card slot GPIO1 connector...
- Page 10 TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 Left side view without side cover: External Connectors: Description Description RS-XXX (Serial Port) connector USB OTG (Type-C) connector CANBus (CAN Bus) connector MicroSD card slot GPIO1 connector Nano-SIM card slot...
-
Page 11: Internal Board Connectors
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 2.5. Internal Board Connectors The TEP-0700-IMX7 has several connectors, switches and internal expansion options. It is necessary to remove the Power Expansion module to access several switches, headers and connectors. - Page 12 TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 Rear view (opened device) without the Power Expansion module: Internal Connectors and Switches: Description Description RTC Battery connector SW2 Panel switch M.2 KEY-B 3G/4G LTE module connector Power Expansion module connector...
-
Page 13: External Connectors
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 3. External Connectors 3.1. Serial Port Connector (RS-XXX) The TEP-0700-IMX7 has a dual non-galvanic isolated 2-wire RS-232 serial port. RS-XXX: Pin # Signal Description Device Ground SERIAL1A_TXD Port#1A Transmit data (output) -
Page 14: Can Bus Connector (Canbus)
Header on TEP-0700-IMX7: Molex 43045-1212 (12-pin Micro-Fit 3.0). Cable receptacle: Molex 43025-1200 (12-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007. 3.3. Digital I/O Connectors (GPIO1/GPIO2) The TEP-0700-IMX7 has two non-galvanic isolated GPIO Expansion headers with the following pinout: GPIO1: Signal... -
Page 15: S1 Button
Cable receptacle: Molex 43025-0800 (8-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007. 3.4. S1 Button The TEP-0700-IMX7 by default boots the unit from internal flash storage (eMMC). By pressing the “S1” button before applying power to the unit and keeping the button pressed for 10 seconds, the unit will boot from an alternative boot media (microSD card). -
Page 16: Usb Otg (Type-C) Connector
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 3.7. USB OTG (Type-C) Connector The TEP-0700-IMX7 has one USB Type-C connector (USB 2.0 signals only) that can be used to connect a host computer to the unit for programming and update purposes. -
Page 17: Gigabit Ethernet Interface
MDI3+ MDI3- 3.11. USB Host Connector The TEP-0700-IMX7 has a standard single USB Host connector (USB 2.0 signals only) to connect to a USB peripheral such as a keyboard, mouse, USB storage device or USB hub. 3.12. Power Input Connector The TEP-0700-IMX7 can be powered either over the DC INPUT connector or PoE over the RJ45 LAN1 port. -
Page 18: Grounding
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 3.13. Grounding The TEP-0700-IMX7 must always be grounded to the earth. Grounding helps to limit the effects of noise due to electromagnetic interference on the device. The earth connection will have to be done using the grounding screw. -
Page 19: Internal Connectors And Expansion Options
Power Expansion module connector (USB) SW3 Panel switch NOTE: Items marked with * are accessible only after removing the Power Expansion module. 4.1. RTC Battery Connector The TEP-0700-IMX7 has an internal RTC backup battery connector (Marked A). Pin # Signal Description RTC_VCC... -
Page 20: Key-B 3G/4G Lte Module Connector
4.2. M.2 KEY-B 3G/4G LTE Module Connector The TEP-0700-IMX7 has an internal M.2 KEY-B 3G/4G LTE module (USB 2.0 signals) connector (Marked B). M.2 cards in the industry-standard M.2 KEY-B 3042 (30 x 42 mm) or M.2 KEY-B 2242 (22 x 42 mm) form factor are supported. -
Page 21: Mounting
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 5. Mounting This section describes the mounting procedures for TEP-0700-IMX7. The material in area of the mounting must provide sufficient strength for safe mounting of this device. 5.1. VESA Mounting The TEP-0700-IMX7 is compatible with the VESA MIS-C Standard 35*75mm hole pattern. -
Page 22: Surface Mounting And O-Ring Installation
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 5.2. Surface Mounting and O-ring Installation There are 8 mounting holes (M4) on the rear side of the device required for surface mounting. M4 screws with at least 4mm head-to-tip length are required to secure this device. -
Page 23: Ordering Information
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 6. Ordering Information The TEP-0700-IMX7 is available in several configurations. Please contact your TechNexion sales contact window or distributor for options and availability details. 6.1. Custom Part Number Rule The TEP-0700-IMX7 can be ordered in custom tailored configuration to meet special application requirements and conditions according to the following custom part number creation rules. -
Page 24: Standard Package Contents
TEP-0700-IMX7 HARDWARE MANUAL – VER 1.00 – MAR 11 2019 6.2. Standard Package Contents Item Partnumber Description TEP-0700-IMX7 7 inch PoE HMI PCAP touch system with NXP i.MX7 Accessoires 1x M.2 LTE module screw 2x rubber cable grommets 1x rubber O-ring 1x DC power latch cable (2-pin Micro-Fit 3.0) -
Page 25: Important Notice
Information published by TechNexion regarding third-party products or services does not constitute a license from TechNexion to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TechNexion under the patents or other intellectual property of TechNexion. -
Page 26: Disclaimer
To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by TechNexion Ltd., its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
