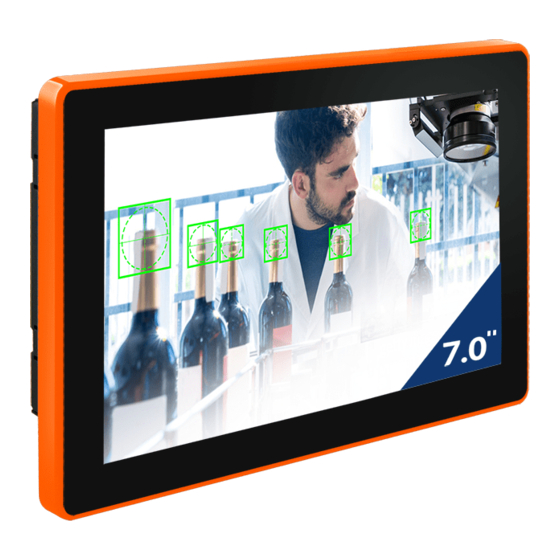

TC-0700 / TC-0710
Quickstart Guide
1

Safety Precautions

Thank you for purchasing a TechNexion TOUCAN series device. This installation guide will be helpful in the
installation, wiring and inspection of your TechNexion HMI. Before using the product, please read this guide to
ensure correct use. You should thoroughly understand all safety precautions before proceeding with the installation,
wiring, and operation. Place this instruction sheet in a safe location for future reference.
1.1

Storage and Installation

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will
corrode electronic circuits. If your device does get wet, allow it to dry completely.
• Do not use or store the device in dusty or dirty areas. Its parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form
!
inside the device and damage electronic circuit boards.
• Do not attempt to open the device.This product needs to be installed by qualified personnel.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not paint the device. Paint can clog the parts and prevent proper operation.
• Unauthorized modifications or attachments could damage the device and may violate regulations governing radio
devices.
1.2

Wiring

• Make sure that the available power source matches the required input power of the device. Failure to observe
this caution may result in electric shock or fire.
• Do not power the unit by DC input when you apply power over the PoE (RJ45).
1.3

Maintenance and Inspection

• Do not touch any internal or exposed parts of the device as electrical shock may result.
• Do not open the device while power is on. Otherwise electrical shock may result.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Be sure the ventilation holes are not obstructed during operation. Otherwise malfunction may result due to
bad ventilation or overheating.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not
working properly, take it to the nearest authorized service facility for service.
1

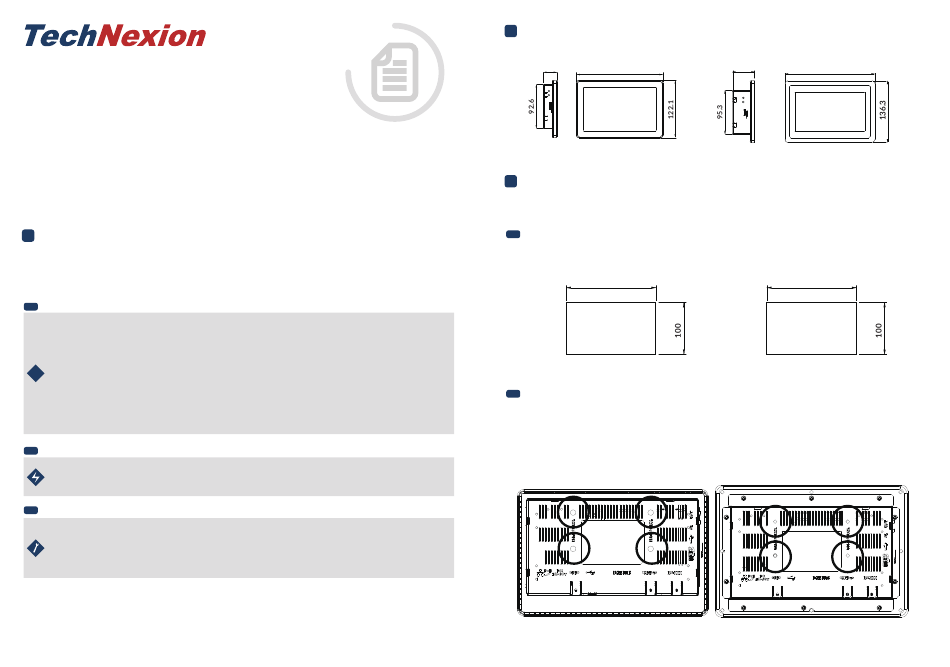

2 Dimensions
TC-0700
29.6
184.3
Unit : mm
3 Installation Instructions
This section describes the mounting procedures for the TOUCAN series device. The material in the mounting area
must provide sufficient strength for support of this HMI.
3.1

Cut-out Dimensions

TC-0700
173
Unit : mm
3.2

VESA Mounting

This device is compatible with VESA MIS-C Standard 35*75mm. There are 4 VESA MIS-C (M4) mounting holes on
the rear side of the device. M4 screws with at least 6mm head-to-tip length are required to secure this device.
TC-0700
TC-0710
47.7
198.5
TC-0710
173
TC-0710
