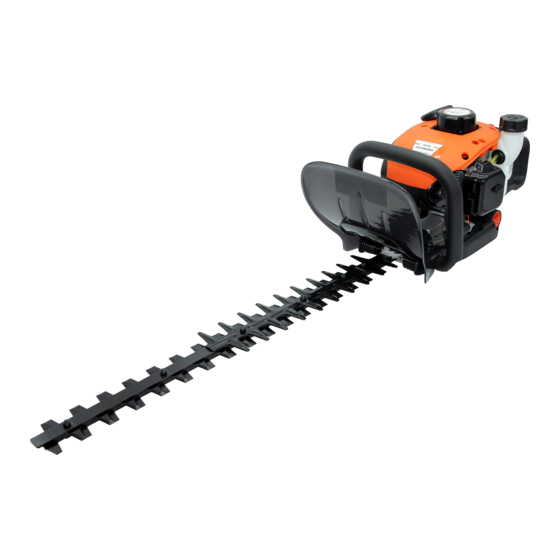

- Page 1 Kiam Power Products Kiam Sherwood H600 Petrol Hedge Trimmer Instructions Manual Read instructions manual before use! Equipmart Ltd Kiam House Birchill Road Knowsley Ind. Park North Merseyside L33 7TD United Kingdom T: 0044 151 548 5500 © Equipmart Ltd F: 0044 151 548 5599...
-
Page 2: Table Of Contents
Contents Parts location ................Specifications ................Warning labels on the machine ..........Symbols on the machine ............For safe operation ..............Fuel ................... Operation .................. Maintenance ................Storage ..................Disposal ..................Troubleshooting guide .............. Spare parts ................Warranty ................... SAFETY FIRST Instructions will contain warnings within this manual, they will be marked with a symbol concern- ing critical points which must be taken into consideration to prevent any possible serious bodily... -
Page 3: Parts Location
1. Parts location 1. Front handle 8. Gear case 15. Blade c over 2. Rear handle 9. Starter knob 16. Operator’s manual 3. Stop switch 10. Fuel tank 17. Socket 4. Throttle t r igger 11. Fuel cap 18. Allen key 5. -
Page 4: Warning Labels On The Machine
3. Warning labels on the machine If warning label peels off or becomes soiled and impossible to read, you should contact the (1)Read owner's manual before operat- dealer from which you purchased the product ing this machine. to order new labels and affix them in the required location(s). -
Page 5: For Safe Operation
5. For safe operation gases contain dangerous carbon 1. THIS MACHINE CAN CAUSE monoxide. SERIOUS INJURIES. Read this 2. Never use the product, manual carefully until you com- a. when the ground is slippery pletely understand and follow all or when you can’t maintain a safety and operating instruc- steady posture. - Page 6 When work is to be performed turn off the engine and contact simultaneously by two or more your authorized Kiam dealer. people, care should also be taken to regularly look around and check for the presence and...
- Page 7 Kiam dealer for assistance. 2. Never transport the product over rough roads over long distances 4. Under no circumstances should by vehicle without removing all you ever take apart the product fuel from the fuel tank.
-
Page 8: Fuel
3. Fasten the fuel cap securely and wipe up any fuel • The engines are lubricated by oil specially formulated spillage around the unit. for air-cooled 2-stroke petrol engine use. If Kiam 2-stroke oil is not available, use a red semi-synthetic 2-stroke oil. 1. Select clear flat ground for fueling. -
Page 9: Operation
7. Operation STARTING THE ENGINE 1. Pour fuel into the fuel tank and tighten the cap se- IMPORTANT curely. 2. Rest the unit on a flat, firm place. Keep the cutting • Avoid pulling the rope to its end or returning it by re- leasing the knob. - Page 10 7. Operation CUTTING WORK WARNING Horizontal cut: • Weather conditions and altitude may effect • In order to get the best cutting results, slightly tilt the blade (5°-10°) towards the cutting direction. carburation. • Do not allow anyone to stay close to the hedge- trimmer while working or while adjusting the car- buretor.
-
Page 11: Maintenance
8. Maintenance Every Every Every Before System/components Procedure Note hours hours hours after after after fuel leaks, fuel spillage wipe out fuel tank, air filter, fuel filter inspect/clean replace, if necessary idle adjusting screw n i l spark plug eplace, if necessary intake air cooling vent clean throttle trigger, stop switch... - Page 12 8. Maintenance SAFETY LOCK FUEL FILTER WARNING • When the engine runs short of fuel supply, check the fuel cap and the fuel filter for blockage. Stop operation if the safety lock is defective. • Safety lock is the switch to disable the throttle trigger, the throttle trigger can only be used when the safety lock is pushed down.
-
Page 13: Storage
8. Maintenance GEAR CASE ADJUSTING CARBURETOR • Apply multi-purpose grease at every 50 hours of use. The carburetor has been adjusted at the factory. Should your unit need readjustment due to the changes in alti- 1. Use a grease pump. tude or operating conditions, please let your skillful dealer make the adjustment. -
Page 14: Troubleshooting Guide
11. Troubleshooting guide Case 1. Starting failure OBABLE CAUSES ACTION fuel tank incorrect fuel drain it and use correct fuel fuel filter fuel filter is clogged clean carburetor adjustment screw out of normal range adjust to normal range sparking (no spark) spark plug is fouled/wet clean/dry plug gap is incorrect... -
Page 15: Warranty
The purchaser is responsible for all related expenses (parts, labour and return costs) if the product is not covered under warranty. Original receipt must be included when returning to: Kiam Power Products Kiam House Birchill Road Knowsley Ind. Park North...
