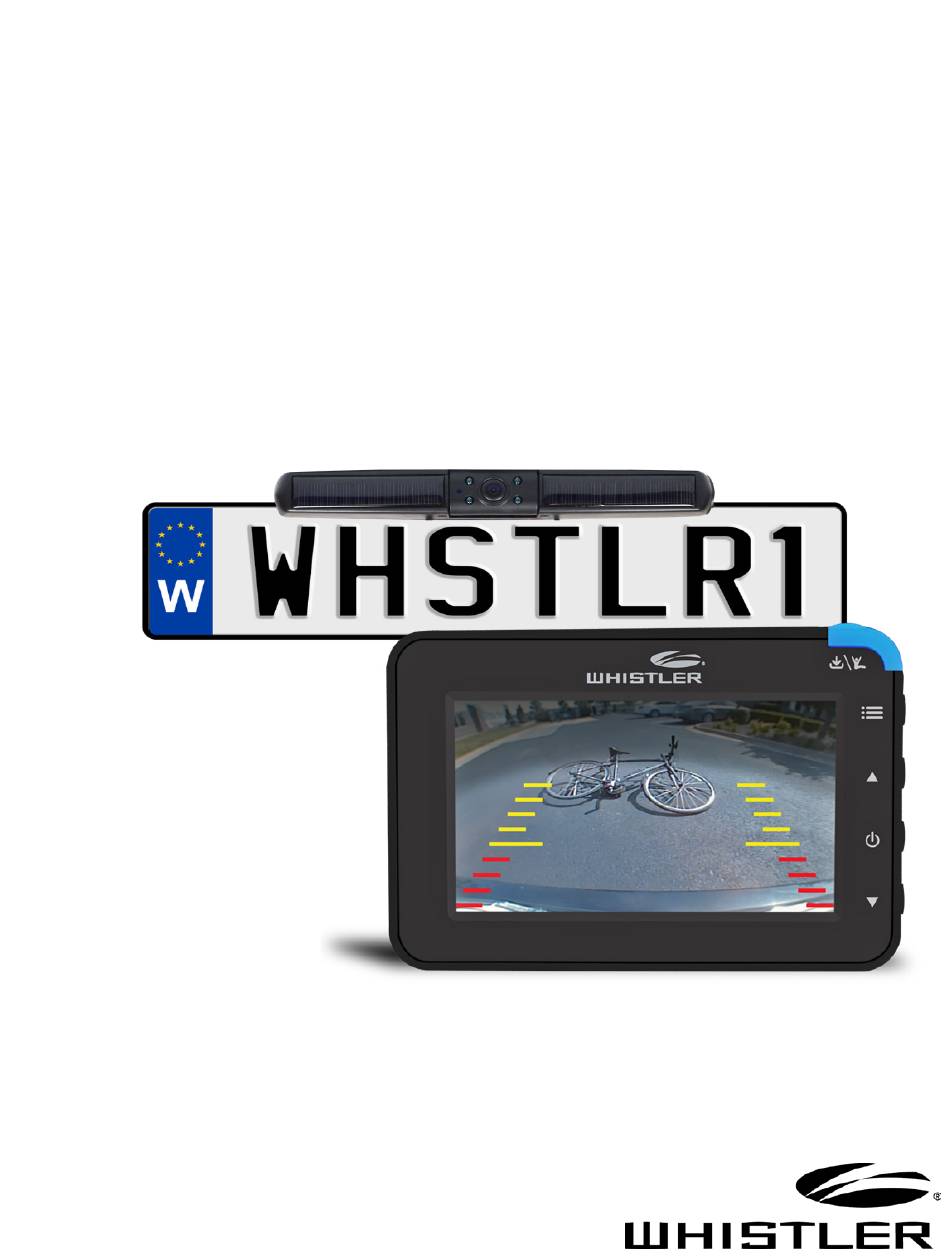

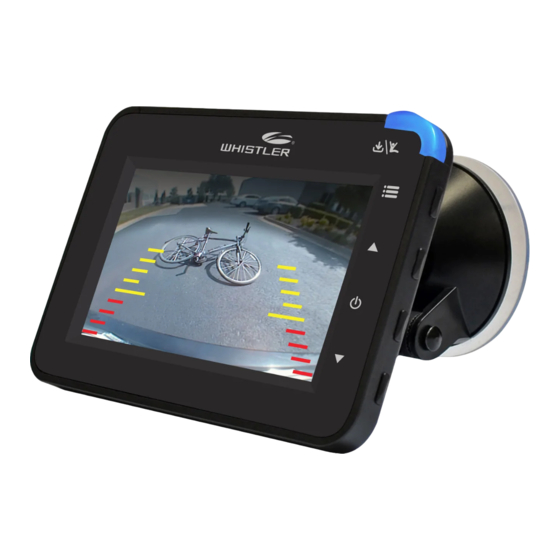

  • Page 1 WBU-800EU User Guide WIRELESS DIGITAL BACKUP CAMERA INSTALLS IN MINUTES...
  • Page 2 Because the WBU-800EU is truly wireless and does not tap into your vehicle's transmission or backup light, you must tell the unit when you are backing up. This also allows you to use your back up camera to view behind the vehicle at any time.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Components ......................4 Getting Started....................5-6 Test the Camera / Pairing ................7-8 Assembly / Installation ..................9 Attach to Vehicle ....................10 Mounting the Monitor ..................11 Setup ........................12 Monitor Settings ..................13-15 Troubleshooting ....................16 Disclaimer ......................17 Safety ........................18 Care and Maintenance ..................19 CE, FCC, and IC Information ..............
  • Page 4: Components

    COMPONENTS Monitor Camera with solar cells Suction cup mount Dash disk USB Charge cord Monitor power cord Pairing tool...
  • Page 5: Getting Started

    GETTING STARTED The WBU-800EU is equipped with a built-in rechargeable lithium battery and is connected with two solar panels that trickle charge the built-in lithium battery when sunlight is available. This will minimize or eliminate the need to manually charge the unit during the year.
  • Page 6 GETTING STARTED CHARGE THE CAMERA 1. Connect the supplied USB cord to the micro USB port of the camera assembly. 2. Plug the USB cable into any standard USB charger with an output rating of 500ma or higher. 3. Charge the camera for 5 to 6 hours. 4.
  • Page 7: Test The Camera / Pairing

    TEST THE CAMERA / PAIRING TEST THE CAMERA Prior to attaching the license plate to your vehicle, follow the steps below to ensure pairing between the backup camera and monitor. 1. Slide the switch on the rear housing of the camera to the On position.
  • Page 8 TEST THE CAMERA / PAIRING PAIRING MONITOR TO CAMERA Your WBU-800EU should automatically pair with your monitor. If your monitor does not automatically pair with the camera after initial charge, the following steps are to be used. NOTE: There are two ways to pair the camera, select the one that works best for your situation.
  • Page 9: Assembly / Installation

    ASSEMBLY / INSTALLATION Unit is assembled at the factory for mounting along top edge of License plate. See Disclaimer section of this user guide before mounting to vehicle. NOTE: If you will be attaching the unit to the bottom of your license plate, please follow the steps below: 1.
  • Page 10: Attach To Vehicle

    ATTACH TO VEHICLE ATTACH LICENSE PLATE TO VEHICLE Once you have tested the camera system and ensured the pairing between the backup camera and monitor, you are ready to reattach the license plate to your vehicle. Use your OEM license plate mounting hardware when mounting license plate to vehicle.
  • Page 11: Mounting The Monitor

    MOUNTING THE MONITOR Find a mounting surface inside the vehicle for the monitor where it can be easily seen, and does not obstruct your vision when driving. NOTE: To maximize the effectiveness of the suction mount, the mounting location surface temperature should be between 50° and 100°F.
  • Page 12: Setup

    SETUP FUNCTIONS OF THE BUTTONS Press to enable or cancel the video on the monitor.Press for 3 seconds to turn on/off the backup assist lines. Press to enable/cancel the menu. Press to move to or adjust a corresponding function. Press and hold for 3 seconds to turn monitor off. Touch to select a corresponding function.
  • Page 13: Monitor Settings

    MONITOR SETTINGS USER SELECTABLE CAMERA TIME DURATIONS The WBU-800EU has four user selectable camera time durations. You may choose to set the monitor to stay on for 30, 45, 60, or 120 seconds by following the below steps when the monitor is powered on: 1.
  • Page 14 MONITOR SETTINGS MENU OPERATIONS Press main Menu and 4 options are available including IMAGE PARAMETERS, IMAGE ROTATION, SETUP and SOFTWARE INFORMATION. Press to select corresponding option, and then press the to enter the option. Select camera 1 for rear camera option or camera 2 for front camera option if your model is such equipped.
  • Page 15 MONITOR SETTINGS BRIGHTNESS/CONTRAST/COLOR SETTINGS Press on the interface to adjust the brightness as shown above. IMAGE ROTATION Select IMAGE ROTATION, and then press to rotate or mirror the image. (It is best to have a video image displayed when making this selection).
  • Page 16: Troubleshooting

    TROUBLESHOOTING IF THE MONITOR DOES NOT TURN ON WHEN POWER IS APPLIED: • Check to make sure the power source is active (if your 12V power port is switched with the vehicle ignition, your monitor will only work when the vehicle is running or the key is in the ON position) •...
  • Page 17: Disclaimer

    By mounting and/or using the Whistler Digital Wireless Backup Camera, you agree that you are solely responsible for the operation of your vehicle and that The Whistler Group is not responsible for any property damage, personal injury, or loss of life that may result from the operation of your vehicle.
  • Page 18: Safety

    SAFETY SAFETY If at any time the backup camera assembly becomes damaged, hot or begins to swell, discontinue use immediately. Quickly and safely remove the backup camera from the vehicle. Do NOT continue to handle, attempt to use, or ship the damaged backup camera assembly.
  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE CLEANING Do not clean or wipe the Back-Up Camera with solvents or chemical materials. If necessary, remove dirt or stains using a soft cloth dampened with a mild detergent solution. FUSE REPLACEMENT 1. Turn the cap on the tip of the power plug counterclockwise (no tools needed).
  • Page 20: Ce, Fcc, And Ic Information

    CE INFORMATION This model may be operated in EU countries. Hereby, The Whistler Group declares that the APM043 is in compliance with RED 2014/54/EU. The full text of the EU DOC is available at the following internet address: www.whistlergroup.com...
  • Page 21 FCC AND IC INFORMATION RF WARNING STATEMENT: The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. FCC ID : HSXBU02M / HSXBU02C IC WARNING: This device complies with Industry Canada licence-exempt RSS standard(s).
  • Page 22: Specifications

    SPECIFICATIONS CAMERA Operational Current (when transmitting): <220mA Pixels: 640 x 480 View Angle: 110° Image Sensor: 1/4“ CMOS VGA Image Quality: Max 25 fps Camera Assembly: IP65 Battery: 3.7V 2600mAh (non serviceable) TRANSMITTER Frequency: 2400 ~ 2485.5MHz RF transmission distance: >328 ft. (>100 m) unobstructed Operation/storage temperature: 14°...
  • Page 23: Warranty Information

    All express or implied warranties for this product are limited to two (2) years. Whistler is not liable for damages arising from the use, misuse, or operation of this product...
  • Page 24 SERVICE UNDER WARRANTY During the warranty period, defective units will be repaired or replaced (with the same or a comparable model), at Whistler’s option, without charge to the purchaser when returned prepaid, with dated proof of purchase to the address below. Units returned...
  • Page 25 IMPORTANT: To validate that your unit is within the warranty period, make sure you keep a copy of your dated proof of purchase. For warranty verification purposes, a copy of your dated store receipt must accompany any Whistler product sent in for warranty work.
  • Page 26 $50.00. Payment may also be made by MasterCard, VISA or American Express. Personal checks are not accepted. In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service specialist who will outline options available to you.
  • Page 27 IMPORTANT: When returning your unit for service, be certain to include a daytime telephone number and an email address (if applicable). CUSTOMER SERVICE If you have questions concerning the operation of your Whistler product, or require service during or after the warranty period, please call: Customer Service...
  • Page 28 CORPORATE HEADQUARTERS 1716 SW Commerce Dr. Ste. 8 Bentonville, AR 72712 TEL (479) 273-6012 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 TEL (479) 273-6012 Email: support@whistlergroup.com 07A20 © 2020 The Whistler Group, Inc.
