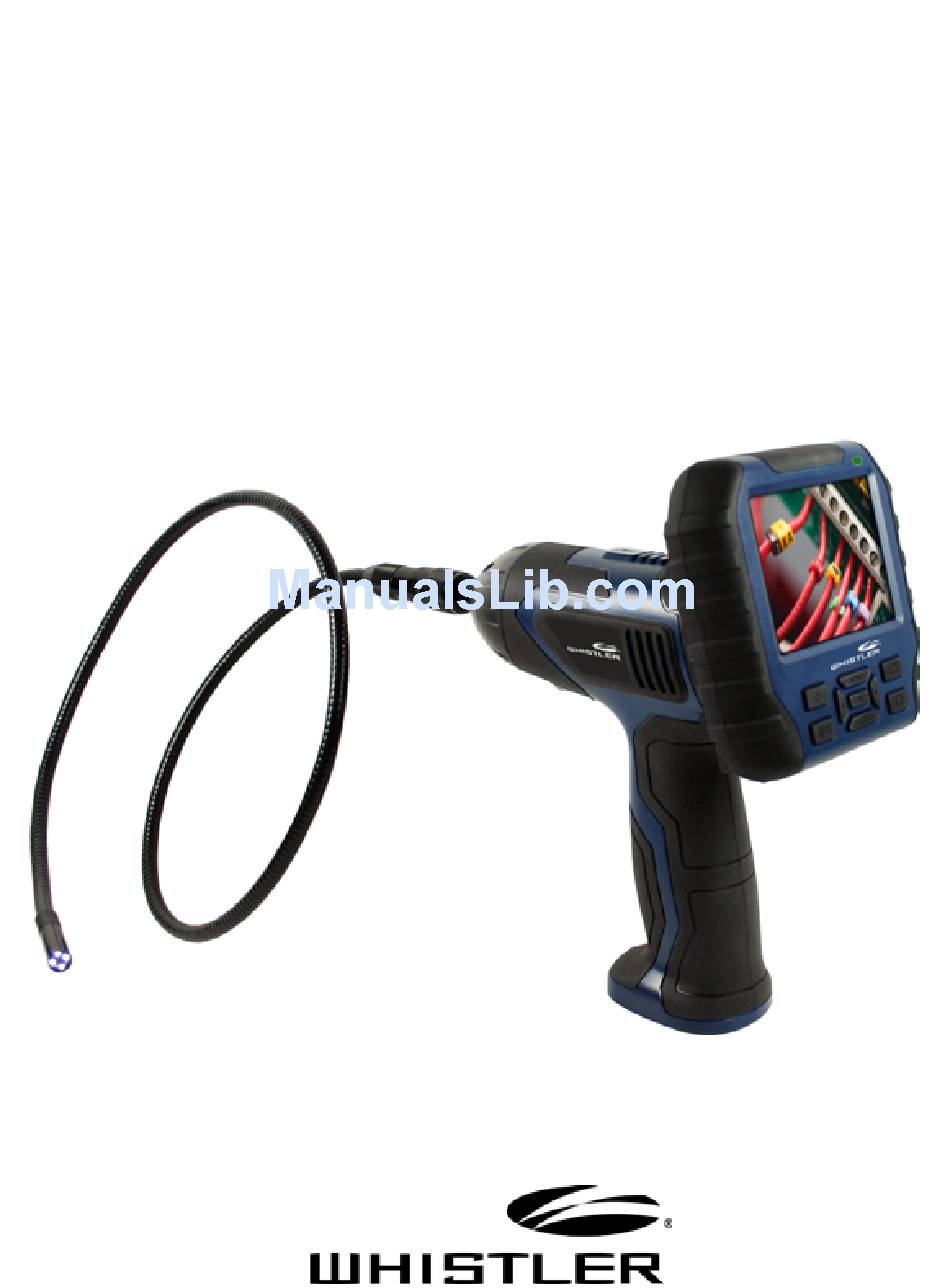

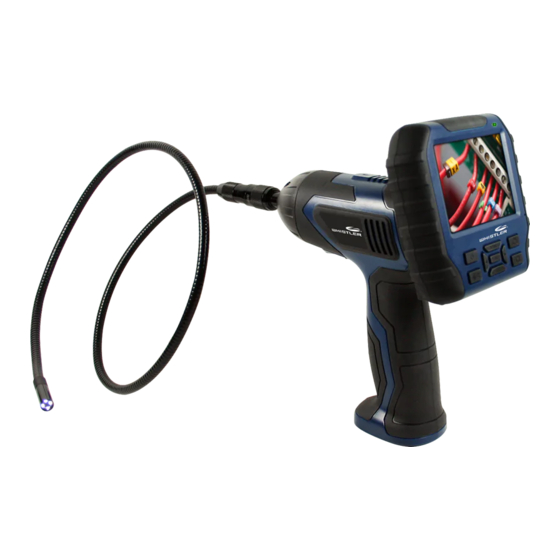

- Page 1 OWNER’S MANUAL WIC5200 Wireless Inspection Camera With Recording Color LCD Monitor...
-
Page 2: Table Of Contents
3.3 ft. Tube Unit Monitor in surveying pipes or other hard-to-reach places, equipment or furnishing installation, car repair, etc. Magnet Mirror Hook If you have any question concerning the operation of this Whistler Accessory Accessory Accessory product please call: Clip Clip Clip... -
Page 3: Installation
FEATURE DESCRIPTION INSTALLATION Camera Unit Installing the Camera Flexible Tube Power Indicator When connecting the camera tube to the handheld unit, make sure that the keyed ends are properly aligned. Once they are lined up, 3.3 ft. Camera Tube finger tighten the knob to hold the connector in place. Signal Output Keyed end plugs... - Page 4 INSTALLATION INSTALLATION Install Monitor for Wired Use Install Extension Tube (Optional) This product also supports wired use by connecting the monitor To connect the extension tube, first align the keyed end with the slot in the handle. Use slight force to push them together. Once properly to the camera.
-
Page 5: Operation
OPERATION OPERATION Operation Rotate the ON/OFF switch to adjust display brightness. Rotate the ON/OFF switch to turn on the camera. The power indicator on top of the handheld unit will illuminate. The switch then acts as a dimmer of the LED’s, that surrounds the camera and provide high quality lighting. -
Page 6: Monitor Operation
MONITOR OPERATION MONITOR OPERATION Recording Video Note: Icon next to a file name indicates that the file is a video. Icon next to a file indicates that the file is a picture. 1. In real-time monitoring mode, press the button to begin recording. - Page 7 MONITOR OPERATION MONITOR OPERATION Language Setting 1. In the setting mode, press the button to select ‘SYSTEM SETTING’, and then press OK button. button to select ‘Language’, and then press OK 2. Press the button, the following interface will appear: 3.
- Page 8 MONITOR OPERATION MONITOR OPERATION Formatting View Version Information 1. In the setting mode, press the or button to select ‘SYSTEM 1. In the setting mode, press the button to select ‘SYSTEM SETTING’, and then press OK button. SETTING ’, and then press the OK button. button to select ‘Version’...
-
Page 9: Caution
2. For other operations see Playback of Video/Picture, Deleting Video/Picture, and Deleting Folder section for guidance. IMPORTANT: FCC requirements state that changes or modifications not expressly approved by Whistler could void the user’s authority to operate the equipment. FCC ID: TW5GB8863... -
Page 10: Troubleshooting
TROUBLESHOOTING SPECIFICATIONS Troubleshooting Why won’t the monitor turn on? • Make sure that the monitor has been charged at least overnight before first use. Press the reset button on the unit. Message on monitor says to “See Manual for Troubleshooting“. •... -
Page 11: Warranty
All express or implied warranties for this product are IMPORTANT: Whistler will not assume responsibility for loss or damage limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product including but not limited incurred in shipping. - Page 12 WARRANTY The minimum out of warranty service fee for your Whistler WIC5200 is $75.00 (U.S.). If you require out of warranty service, please return your unit as outlined in the section “Service Under Warranty” along with a cashier’s check or money order in the amount of $75.00. Payment may also be made by MasterCard, VISA or American Express.
