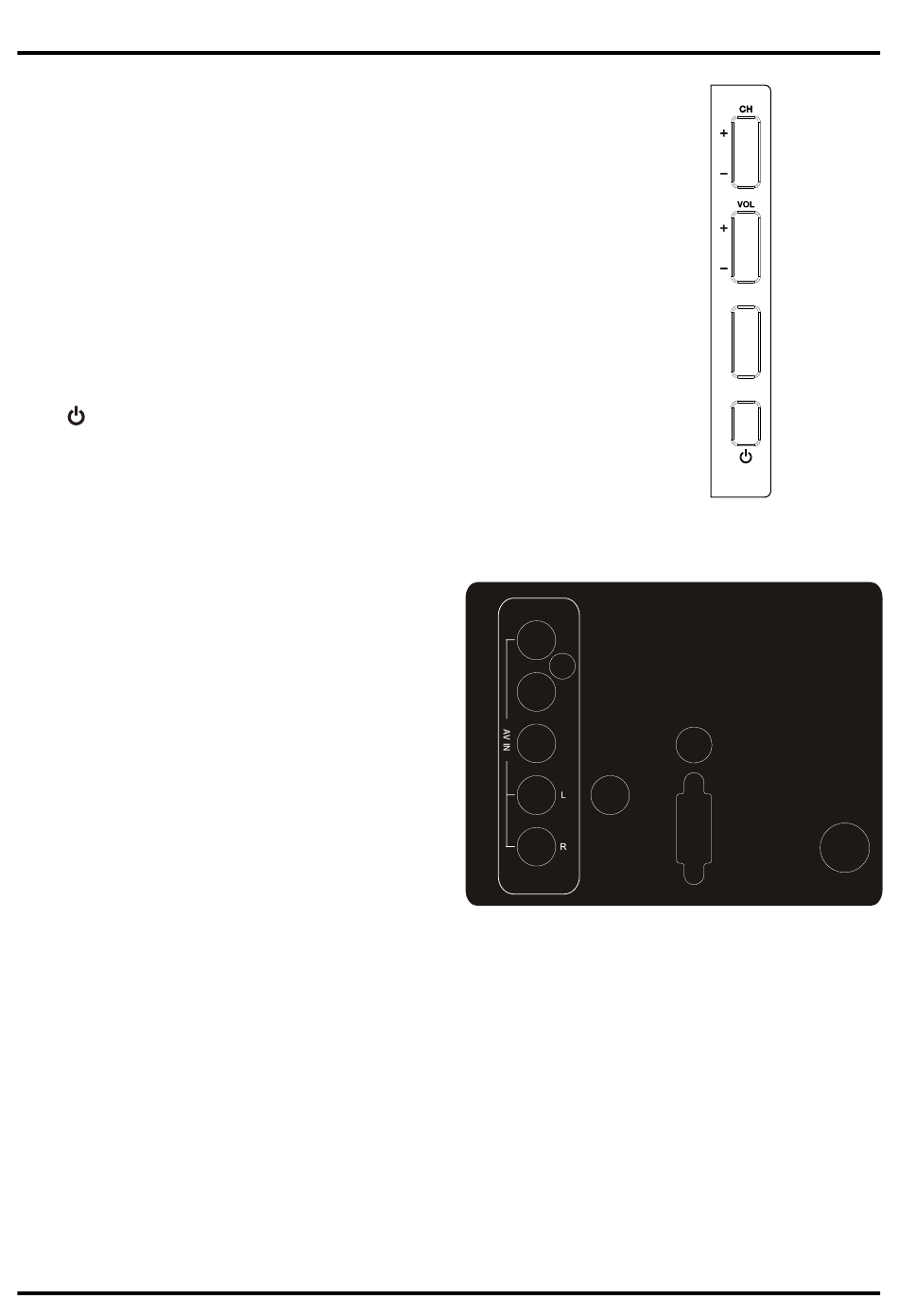

Buttons on TV

If you cannot locate your remote, you can use the TV panel buttons on your
TV to operate many TV features.
Selects channels stored in the channel list or acts as the up/
CH+/-
down arrow (▲/▼) through the menu items.
Increases/decreases the volume or acts as the right/left
arrow (◄/►) through the menu items.
VOL+/-
VOL+ also acts as the OK button when in the menu system.
MENU
Brings up the TV's main menu.
INPUT Selects the signal source.
(POWER button) Turns the TV on or to standby mode.

Explanation of Jacks on TV

This section describes the jacks on the side/back
panel of your TV. There are several ways to connect
components.
SPDIF- DIGITAL AUDIO OUT (coaxial): Use a digital
coaxial cable to connect your TV to a compatible audio
receiver.
COMPONENT IN (CMPT): Lets you connect a
component that has component video jacks, such as a
DVD player or set-top box. ( Green jack for Y, Blue jack
for Pb and Red jack for Pr )
Y Pb Pr (Component Video): Provides good
•
picture quality because the video is separated into
three signals. Use three video-grade or component
video cables for the connection.
L/R AUDIO: Provides left and right audio connection when using the CMPT VIDEO input. Red and white
•
jacks for R AUDIO and L AUDIO connection.(Note: AV IN and COMPONENT IN share the same L/R
AUDIO and Y/Video input jacks.)
AUDIO/VIDEO IN (AV IN): Lets you connect a component that has composite video jacks, such as a VCR,
DVD player or set-top box. Green jack for VIDEO connection, red and white jacks for R AUDIO and L AUDIO
connection.
VGA (PC VIDEO IN): Connect your computer or other component with a VGA output to this jack using a
15-pin,D-sub cable.
DVI/PC AUDIO IN (used for DVI/PC only): Provides audio connection when using HDMI/DVI INPUT jack for
DVI or when using PC VIDEO IN.
