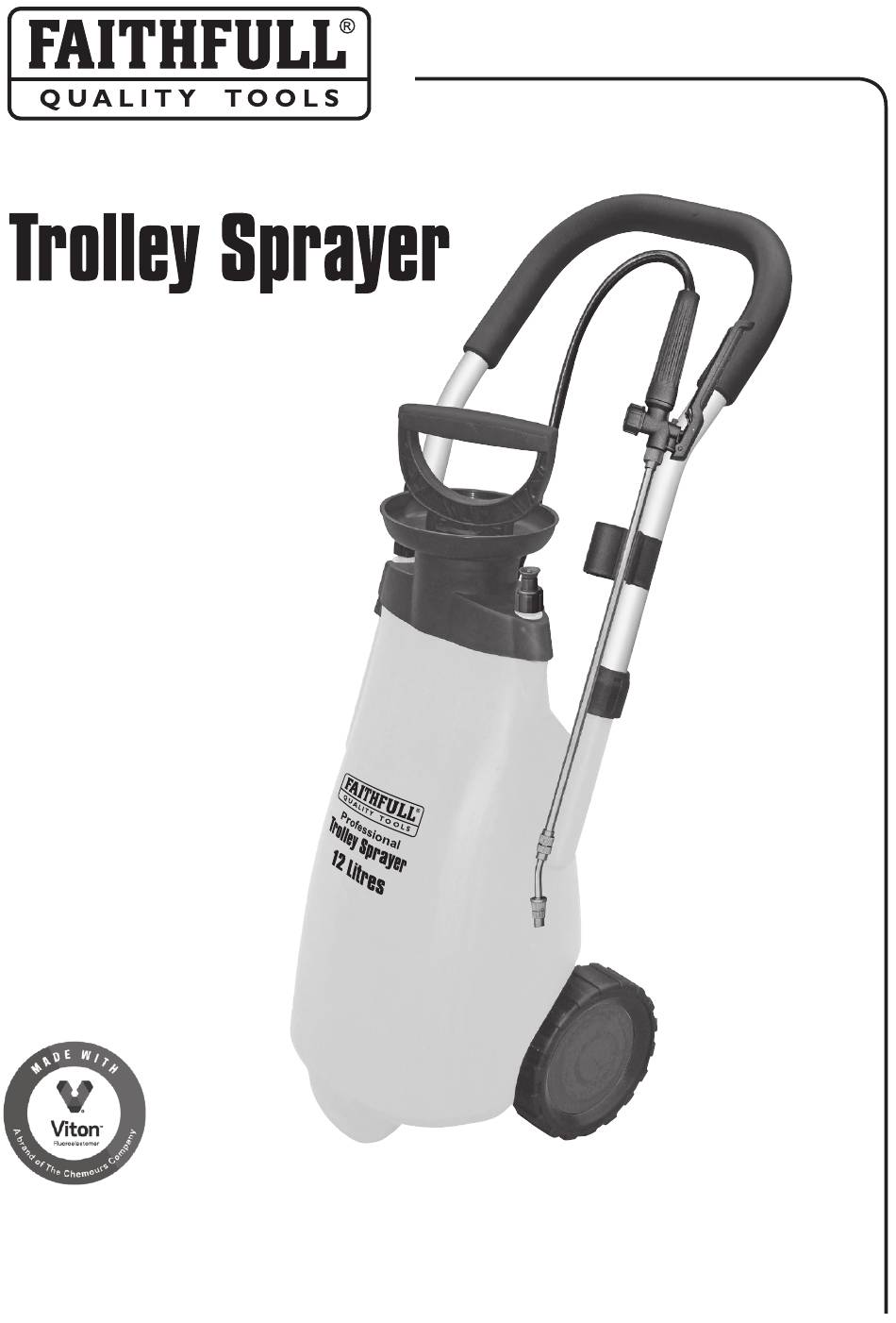

- Page 1 FAI SPRAY12HD Professional 12 Litres Fitted with Viton™ seals to allow the spraying of both water based and most solvent based chemicals. Please read these instructions carefully and retain for future reference.
- Page 2 Introduction The FAISPRAY12HD Professional Specifications Sprayer is fitted with VITON™ seals which are resistant to most acids and solvents, Working capacity: 12 Litres enabling this sprayer to be used with more aggressive chemicals widely used in Working pressure: 2.5 bar...
- Page 3 Parts Identification 1. Pump handle 8. Fill inlet 15. Wheel washers 2. Safety pressure valve 9. Trigger assembly 16. Wheel locking pins 3. Wheel 10. Hose 17. Suction tubing 4. Wheel cover 11. Foam handle grip 18. Pump assembly 5. Tank 12.
- Page 4 Fig.4 Fig.3 Place the wheel covers (4) onto the wheels Thread a wheel washer (15 over the end and press fit into place. of the axle and insert a locking pin (16) into the axles end hole to lock wheel in place. Fig.5 Fig.6 Slide the two handle fixings (19) over the...
- Page 5 Operating Instructions Filling the spray bottle Fig.11 (Fig.11) Unscrew the pump handle (1) anti-clockwise to loosen and remove the pump handle assembly from the fill inlet (8). Fig.12 Fill the spray bottle with your chosen liquid to the desired level through the fill inlet (8). (Fig.12) Note: whilst the fill inlet incorporates a flanged rim to help avoid spillages, the...
- Page 6 Safety pressure valve Fig.15 (Fig.15) The safety pressure valve (2) will open when the pressure exceeds 2.5bar. It can also be opened manually to vent remaining pressure prior to opening. To open the valve manually, pull up on the valve to release pressure. Spray operation (Fig.16) Fig.16...
- Page 7 Looking After Your Sprayer Blocked Nozzles If a nozzle becomes blocked or fails to spray the correct pattern, unscrew the nozzle tip and clean the components under running water or a water jet. Do not use a metallic instrument to unblock a nozzle as this may alter the nozzle aperture making the nozzle ineffective.
