Faithfull FAI SPRAY8HD Manual

Professional pressure sprayer 8 litres
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

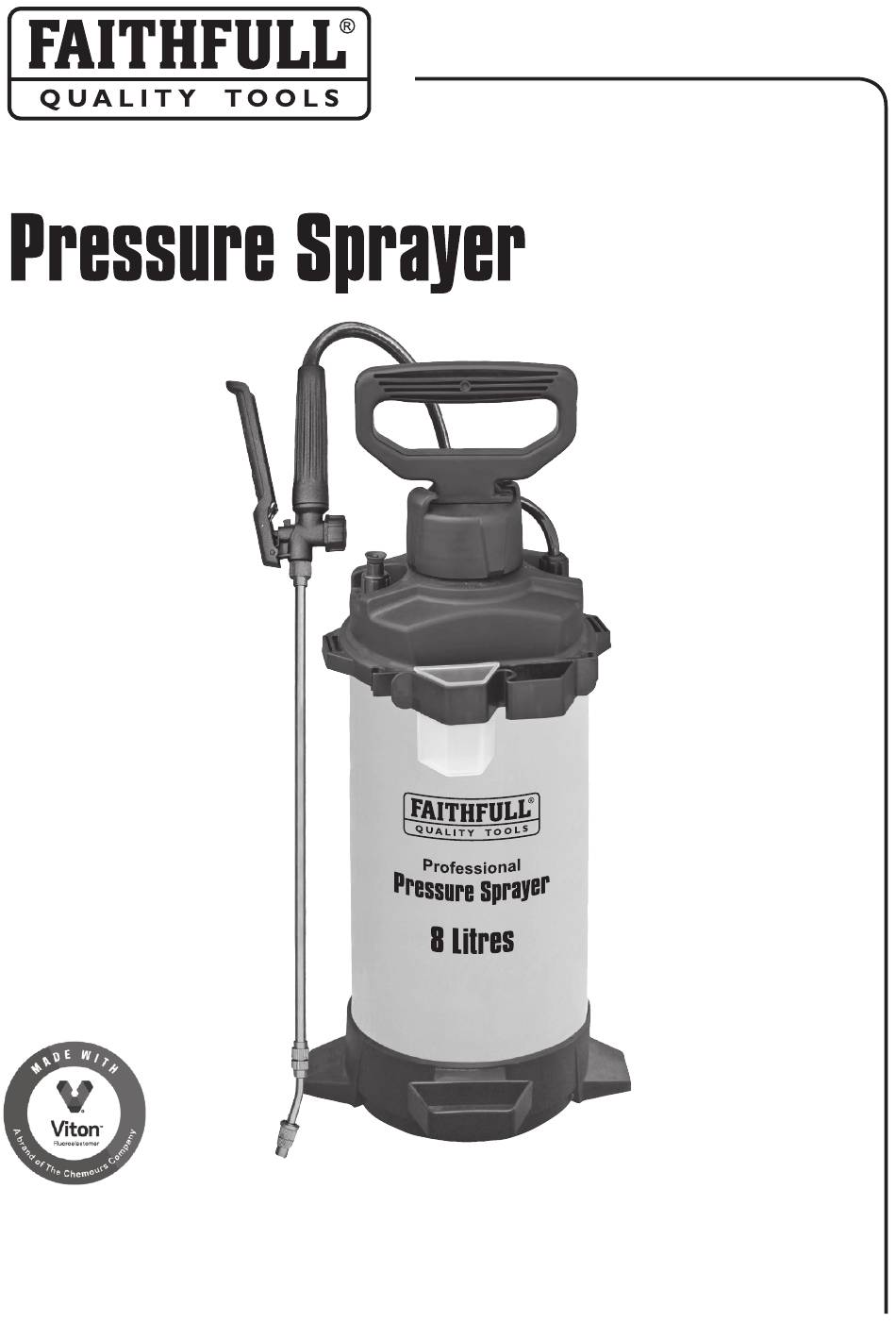

FAI SPRAY8HD
Professional
8 Litres
Fitted with Viton™ seals to allow the spraying of both
water based and most solvent based chemicals.
Please read these instructions carefully and retain for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAI SPRAY8HD and is the answer not in the manual?

Questions and answers

Related Manuals for Faithfull FAI SPRAY8HD

Summary of Contents for Faithfull FAI SPRAY8HD

  • Page 1 FAI SPRAY8HD Professional 8 Litres Fitted with Viton™ seals to allow the spraying of both water based and most solvent based chemicals. Please read these instructions carefully and retain for future reference.

  • Page 2: General Safety Rules

    Introduction The FAISPRAY8HD Professional Sprayer Specifications is fitted with VITON™ seals which are resistant to most acids and solvents, Working capacity: 8 Litres enabling this sprayer to be used with more aggressive chemicals widely used in Working pressure: 2.5 bar automotive and professional cleaning and Net weight: 1.760kg...

  • Page 3: Parts Identification

    Parts Identification 1. Pump handle 2. Safety pressure valve 3. Tank 4. Nozzle 5. Lance 6. Trigger assembly 7. Hose 8. Measuring cup Assembly Instructions Fig.1 Fig.2 Screw the lance (5) onto the trigger Insert the suction tubing of the hose (7) into assembly (6).

  • Page 4: Operating Instructions

    Operating Instructions Filling the spray bottle Fig.3 (Fig.3) Unscrew the pump handle (1) anti-clockwise to loosen and remove the pump handle assembly from the fill inlet (8). Fill the spray bottle with your chosen liquid Fig.4 to the desired level through the fill inlet (8). (Fig.4) Note: whilst the fill inlet incorporates a flanged rim to help avoid spillages, the...
  • Page 5 Safety pressure valve (Fig.7) Fig.7 The safety pressure valve (2) will open when the pressure exceeds 2.5bar. It can also be opened manually to vent remaining pressure prior to opening. To open the valve manually, pull up on the valve to release pressure. Spray operation (Fig.8) Fig.8...

  • Page 6: After Use

    Looking After Your Sprayer Blocked Nozzles If a nozzle becomes blocked or fails to spray the correct pattern, unscrew the nozzle tip and clean the components under running water or a water jet. Do not use a metallic instrument to unblock a nozzle as this may alter the nozzle aperture making the nozzle ineffective.
  • Page 8 FAITHFULL TOOLS Phoenix House, 3 White Lodge Business Estate, Hall Road, Norwich, Norfolk, NR4 6DG E-mail: enquiries@faithfulltools.com www.faithfulltools.com...
