Stingray 318DOPW V Series Manual

TRANSMITTER STINGRAY 318DOPWxV
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS

1 - TRANSMITTER INTRODUCTION

1A - General information
1B - Technical specifications
1C - Main features
1D -Types
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
Transmitter Solutions - Stingray 318DOPWxV is a visor transmitter
operating at 318 MHz in ASK modulation. It has been designed for use
with programmable telephone entry, security , and access control
systems operating with a 318 MHz frequency receiver. The protocol is
MicroCLIK® compatible and the code sent by the transmitter includes a
14 bit security code which allows up to 16384 code combinations and
6 bits of facility code, which allows up to 64 facility codes.
Each transmitter is individually numbered, can be used with any receiver
capable of receiving a 26 bit input and can operate any type of access
control system equipped with the same protocol.
The 23A alkaline battery has a life of about 12-18 months.
The product fully complies Part 15 of FCC Regulations.
1B - Technical specifications
Number of keys:
Supply :
Battery life:
Current consumption :
Operating frequency :
Code combinations :
Facility codes
Modulation :
Rated e.r.p. :
Range in free space:
Operating temperature:
Overall dimensions:
Weight:

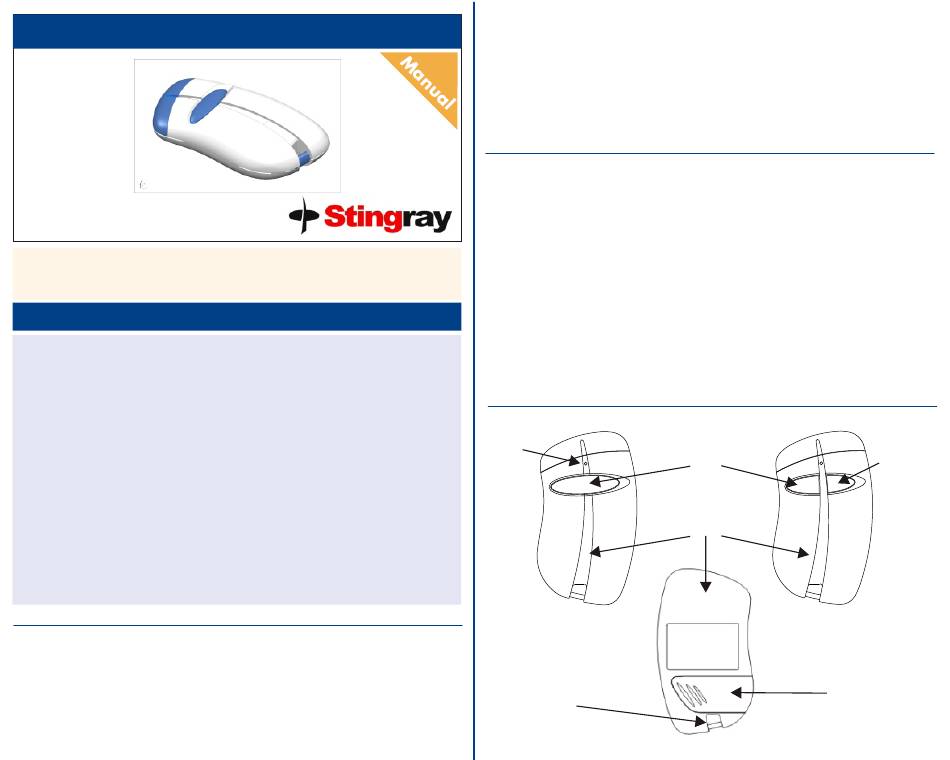

1C - Main features
Red
LED
318DOPW1V
Key holder
ring
1 / 2
1 Alkaline Battery 12V type 23A
12 - 18 months
20 mA
318 MHz
16,384
64
AM / ASK
50 - 100 mW
60 - 120 yd
-20 ÷ +55 °C
3.26 x 1.88 x 0.62 in
20 gr.
Push-button
A
red
Enclosure
light grey
318DOPW 2V
Battery
door
Push-button
B
red
