Stingray 418ELPW V Series Manual

TRANSMITTER STINGRAY 418ELPWxV
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER INTRODUCTION
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
Transmitter Solutions - Stingray 418ELPWxV is a visor transmitter
operating at 418 MHz in ASK modulation. It has been designed for the
programmable telephone entry systems, anti-burglar systems and
access control systems operating at 418 MHz. The code sent by the
transmitter includes a 16 bit security code which allows up to 65,536
code combinations and 8 bits of facility code which allows up to 256
facility codes.
Each transmitter is individually numbered and can be used with any
receiver capable of receiving a 26 bit input.
The 23A alkaline battery has a life of about 12-18 months.
The product fully complies with Part 15 of FCC Regulations.
1B - Technical specifications
Number of keys: 1 / 2
Supply : 1 Alkaline Battery 12V type 23A
Battery life: 12 - 18 months
Current consumption : 20 mA
Operating frequency : 418 MHz
Code combinations : 65536
Facility codes : 256
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.

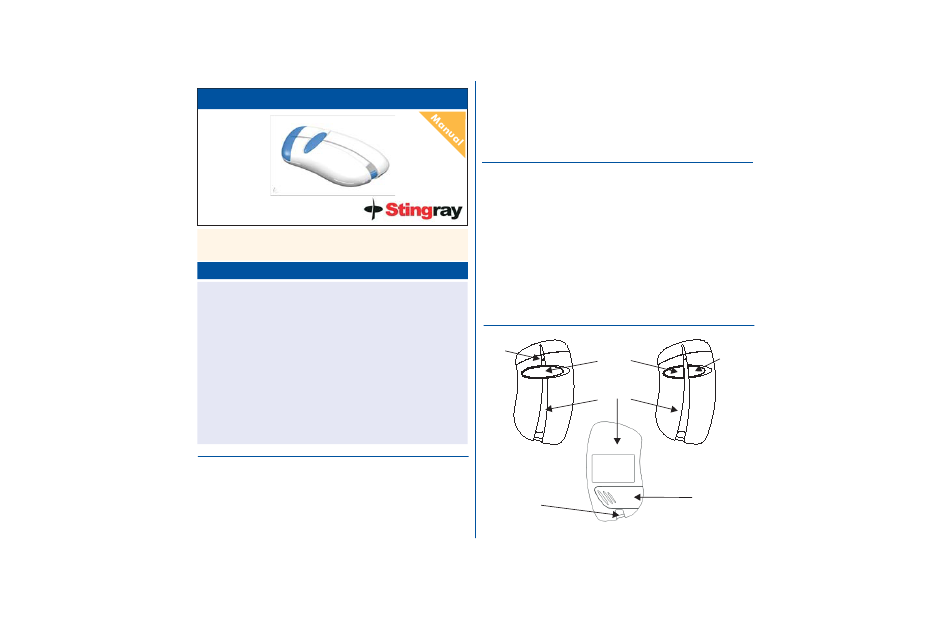

1C - Main features
Red
Push-button
LED
A
Green
Enclosure
light-grey
418ELPW1V
418ELPW2V
Key holder
ring
Push-button
B
green
Battery
door
